$ 65


  • Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
  • On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
  • Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
  • Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
  • Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
12-08-2022 11:00 AM

Model: OC200

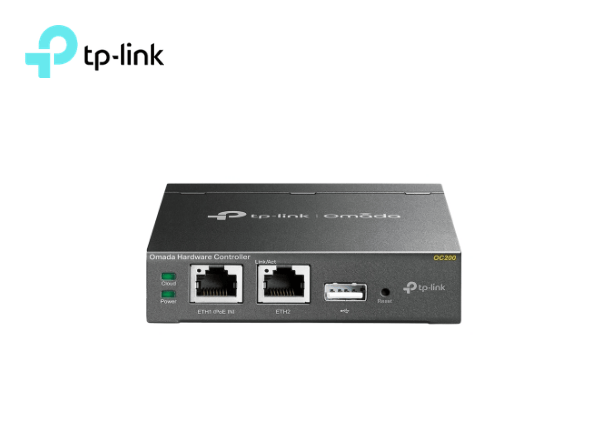

TP-Link Omada Hardware Controller

Overview

  • Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
  • On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
  • Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
  • Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
  • Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
  • Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
  • Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.

Specifications

HARDWARE FEATURES
Interface 2 × 10/100Mbps Ethernet Port 1 × USB 2.0 Port for configuration backup 1 × Micro USB Port for power
Power Supply 802.3af/at PoE or Micro USB(DC 5V/1A)
Dimensions 3.9 × 3.9 × 1.0in. (100 × 98 × 25mm)
MANAGEMENT
Omada App Yes
Centralized Management • Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers • Up to 1,000 ClientsNote: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200
Cloud Access Yes
L3 Management Yes
Multi-site Management Yes
Management Features • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • Omada Hardware Controller OC200 • Quick Installation Guide • Ethernet Cable
System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
