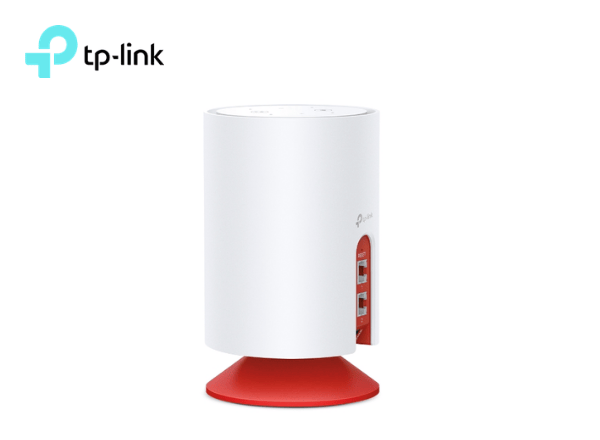

TP-Link Deco Voice X20(2-pack) AX1800 Mesh Wi-Fi 6 System with Smart Speaker

Super-fast WiFi 6 speeds: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
TP-Link Mesh Technology: Walk throughout your home and stay connected with the fastest possible speeds.
Alexa Built-in: Embrace a smarter home with whole-home voice control via Amazon Alexa.
Integrated Smart Speaker: Supports popular audio providers throughout your home with premium sound.
TP-Link HomeShield: Provides reliable IoT protection, robust parental controls, and comprehensive security reports.
Full Gigabit Ethernet: 2× Gigabit WAN/LAN Ethernet ports per Deco Voice unit provide warp-speed wired connections.

04-08-2022 3:11 PM

TP-Link AX1800 Mesh Wi-Fi 6 System with Smart Speaker

Super-fast WiFi 6 speeds: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
TP-Link Mesh Technology: Walk throughout your home and stay connected with the fastest possible speeds.
Alexa Built-in: Embrace a smarter home with whole-home voice control via Amazon Alexa.
Integrated Smart Speaker: Supports popular audio providers throughout your home with premium sound.
TP-Link HomeShield: Provides reliable IoT protection, robust parental controls, and comprehensive security reports.
Full Gigabit Ethernet: 2× Gigabit WAN/LAN Ethernet ports per Deco Voice unit provide warp-speed wired connections.
Setup Made Easier Than Ever: The Deco app walks you through the setup step-by-step.
Works with All Deco Models: Compatible with all Deco models to form a unified whole-home mesh network.

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	1-3 Bedroom Houses (1-pack) 3-4 Bedroom Houses (2-pack) 4-6 Bedroom Houses (3-pack) Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices
Working Modes	Router Mode Access Point Mode

HARDWARE
Performance	Microphone Quadruple microphone array Speaker 5 W full frequency speaker with double bass passive diaphragm
Ethernet Ports	2× Gigabit Ports *Per Deco Voice Unit Supports WAN/LAN auto-sensing
Buttons	1 Reset Button 1 Mute Button 1 Action Button 2 Volume Buttons

SECURITY
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal
Network Security	SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More>
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

TEST DATA
WiFi Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm(2.4 GHz) <30 dBm(5 GHz)

PHYSICAL
Dimensions (W×D×H)	4.13 × 4.13 × 6.69 in (105 × 105 × 170 mm)
Package Contents	Deco Voice X20 (1-pack) 1 Deco Voice X20 unit 1 RJ45 Ethernet cable 1 Power adapter 1 Quick Installation Guide Deco Voice X20 (2-pack) 2 Deco Voice X20 units 1 RJ45 Ethernet cable 2 Power adapters 1 Quick Installation Guide Deco Voice X20 (3-pack) 3 Deco Voice X20 units 1 RJ45 Ethernet cable 3 Power adapters 1 Quick Installation Guide

OTHERS
System Requirements	Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
Certifications	CE, EAC, FCC, IC, RoHS, RCM
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH
