$ 135


  • Blazing-Fast WiFi 6 Speeds:ย Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh:ย Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
18-11-2022 4:23 PM

Model: EAP670

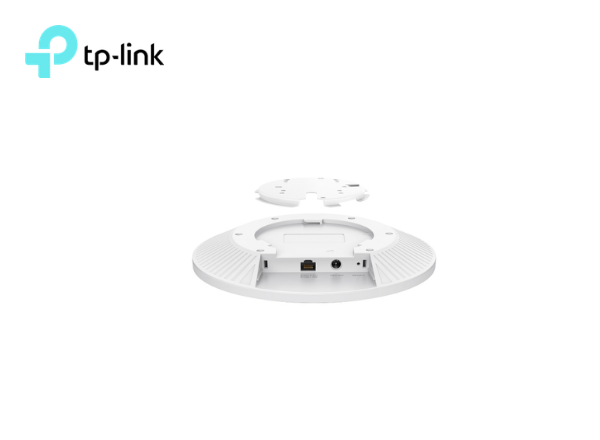

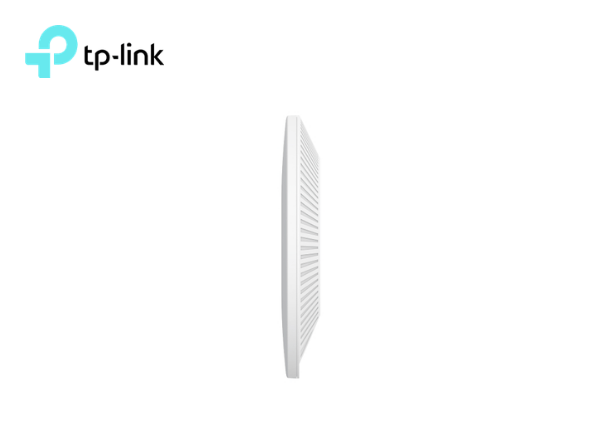

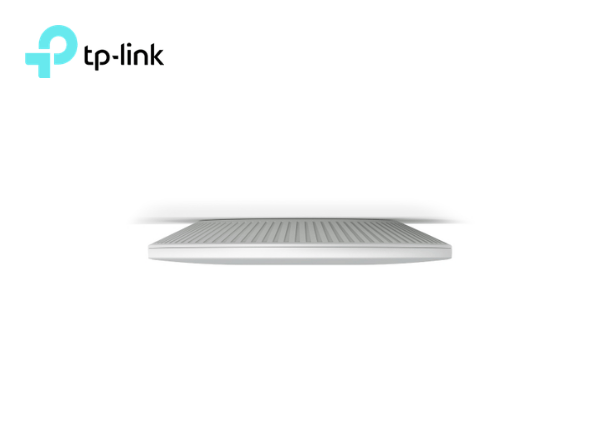

TP-Link AX5400 Multi-Gigabit Ceiling Mount WiFi 6 Access Point

  • Blazing-Fast WiFi 6 Speeds:ย Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh:ย Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

Specifications

HARDWARE FEATURES
Interface 1ร— 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply โ€ข 802.3at PoE โ€ข 12 V / 1.5 A DC
Power Consumption โ€ข EU: 18.1 W โ€ข US: 19.8 W
Dimensions ( W x D x H ) 9.6 ร— 9.6 ร— 2.5 in (243 ร— 243 ร— 64 mm)
Antenna Type Internal Omni โ€ข 2.4 GHz: 2ร— 4 dBi โ€ข 5 GHz: 4ร— 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity 250+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate โ€ข 5 GHz: Up to 4804 Mbps โ€ข 2.4 GHz: Up to 574 Mbps
Wireless Functions โ€ข 1024-QAM โ€ข 4ร— Longer OFDM Symbol โ€ข OFDMA โ€ข Multiple SSIDs (Up to 16 SSIDs, 8 for each band) โ€ข Enable/Disable Wireless Radio โ€ข Automatic Channel Assignment โ€ข Transmit Power Control (Adjust Transmit Power on dBm) โ€ข QoS(WMM) โ€ข MU-MIMO โ€ข HE160 (160 MHz Bandwidth)โ€ก โ€ข Seamless Roamingย ยง โ€ข Omada Meshยง โ€ข Band Steering โ€ข Load Balance โ€ข Airtime Fairness โ€ข Beamforming โ€ข Rate Limit โ€ข Reboot Schedule โ€ข Wireless Schedule โ€ข Wireless Statistics based on SSID/AP/Client
Wireless Security โ€ข Captive Portal Authenticationยง โ€ข Access Control โ€ข Wireless Mac Address Filtering โ€ข Wireless Isolation Between Clients โ€ข SSID to VLAN Mapping โ€ข Rogue AP Detection โ€ข 802.1X Support โ€ข WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power โ€ข CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP)โ€ข FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management โ€ข Omada Hardware Controller (OC300) โ€ข Omada Hardware Controller (OC200) โ€ข Omada Software Controller โ€ข Omada Cloud-Based Controller
Cloud Access Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents โ€ข EAP670 โ€ข Power Adapter โ€ข Ceiling/Wall Mounting Kits โ€ข Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment โ€ข Operating Temperature: 0โ€“40 โ„ƒ (32โ€“104 โ„‰) โ€ข Storage Temperature: -40โ€“70 โ„ƒ (-40โ€“158 โ„‰) โ€ข Operating Humidity: 10โ€“90% RH non-condensing โ€ข Storage Humidity: 5โ€“90% RH non-condensing
