Model: Archer AX95

TP-Link AX7800 Tri-Band 8-Stream Wi-Fi 6 Router

  • Faster Tri-Band AX7800 WiFi 6: Up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.1
  • Ultra Connectivity: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 2× USB ports ensure max flexibility and boosted throughput.
  • Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage.
  • More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.1
  • Powerful CPU: 1.7 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
  • OneMesh™: Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
  • HomeShield: Customize your home network with enhanced security and control.5
  • Refined Security: WPA3 reinforces Wi-Fi encryption and guest network for improved security.

Specifications

WIRELESS
Standards Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX7800 • 5 GHz-1: 4804 Mbps (802.11ax, HE160) • 5 GHz-2: 2402 Mbps (802.11ax) • 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High
Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth
Working Modes • Router Mode • Access Point Mode
HARDWARE
Processor 1.7 GHz Quad-Core CPU

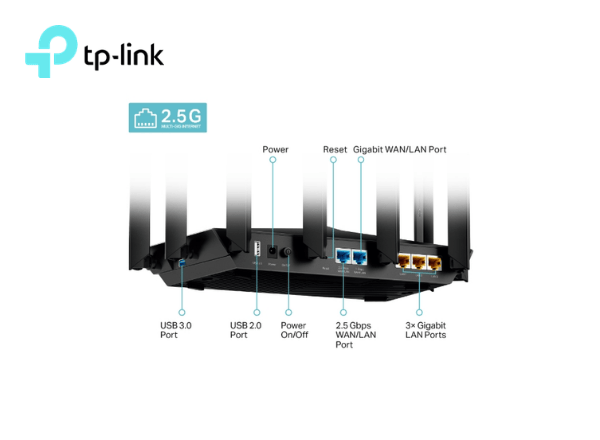

Ethernet Ports • 1× 2.5 Gbps WAN/LAN Port • 1× 1 Gbps WAN/LAN Port • 3× 1 Gbps LAN Ports
USB Support • 1× USB 3.0 Port • 1× USB 2.0 Port• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32• Supported Functions: FTP Server Media Server Samba Server
Buttons • LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button
Power 12 V ⎓ 3.3 A
SECURITY
WiFi Encryption • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x)
Network Security • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway• HomeShield Security
Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network
VPN Server • OpenVPN • PPTP • L2TP
VPN Client • OpenVPN • PPTP • L2TP
SOFTWARE
Protocols • IPv4 • IPv6
Service Kits HomeShield Learn More>
OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>
Parental Controls HomeShield Parental Controls
Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types • Dynamic IP • Static IP • PPPoE • PPTP • L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade TP-Link ID DDNS
NAT Forwarding • Port Forwarding • Port Triggering • DMZ • UPnP
IPTV • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN
DHCP • Address Reservation • DHCP Client List • Server
DDNS • TP-Link • NO-IP • DynDNS
Management • Tether App • Webpage
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power • FCC: ≤30dBm (5.17GHz~5.25GHz); ≤23dBm (5.25GHz~5.35GHz); ≤23dBm (5.49GHz~5.725GHz); ≤28dBm (5.725GHz~5.825GHz); ≤28dBm (2.4GHz)• CE: ≤23dBm EIRP (5.17GHz~5.35GHz); ≤30dBm EIRP (5.47GHz~5.725GHz); ≤20dBm EIRP (2.4GHz)
WiFi Reception Sensitivity • 2.4 GHz: 11ac VHT20 MCS0: -98dBm, 11ac VHT20 MCS11: -66dBm, 11ac VHT40 MCS0: -96dBm, 11ac VHT40 MCS11: -64dBm, 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -62dBm• 5 GHz: 11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS11: -63dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -61dBm, 11ac VHT80 MCS0: -89dBm, 11ac VHT80 MCS11: -58dBm, 11ac VHT160 MCS0: -84dBm, 11ac VHT160 MCS11: -53dBm, 11ax HE20 MCS0: -92dBm, 11ax HE20 MCS11: -60dBm, 11ax HE40 MCS0: -89dBm, 11ax HE40 MCS11: -58dBm, 11ax HE80 MCS0: -86dBm, 11ax HE80 MCS11: -55dBm, 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm
PHYSICAL
Dimensions (W×D×H) 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)
Package Contents • Wi-Fi Router Archer AX95 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
