Description

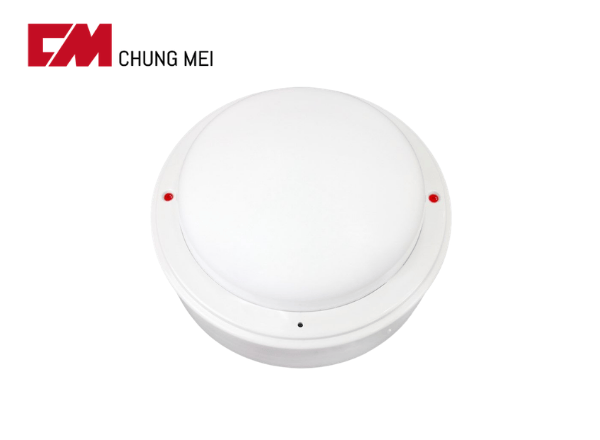

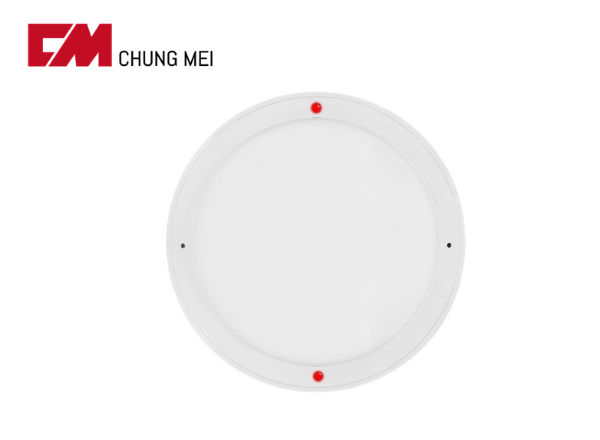

Chungmei CM-WS14LR Rate of Rise Heat Detector
Rate of Rise Heat Detector
- Dual LEDs for 360-degree visibility
- Mechanical operating principles ensure the long-term durability and the least malfunction
- Self-restoring function ensures the elements repeatedly use
- Electrical contacts with Sliver-palladium alloy to conduct electricity excellently
- The exhaust valve of R.O.R Heat Detector part uses optical fiber glass capillary tube that’s heat-resistant and moisture proof to avoid false alarms
SPECIFICATION
| MODEL NO. | CM-WS14L | CM-WS14LR |
|---|---|---|
| TYPE | 2-wire | 3-wire |
| VOLTAGE RANGE | 12V ๏ฝ 30V DC | |
| ALARM CURRENT | 24V DC 30mA | |
| POLARIZATION | Non-polarized | Polarized |
| WEIGHT | 131g | |
| SENSITIVITY SETTING | Comply to CNS | |
| AMBIENT TEMP. | -10โ ๏ฝ +55โ | |
| AMBIENT HUMIDITY | 0 ๏ฝ 95% | |
| MATERIAL | Burning-Proof Plastics | |
| DIMENSIONS | 102 (Dia.) ร 47 (H) mm | |
| COLOR | White | |
| REMARK | Apply to base model No. CM-BSN3 | |
