Maituo MT-108AV 8 Port AV Video Audio Splitter | A13

Description

MODEL: MT-108AV

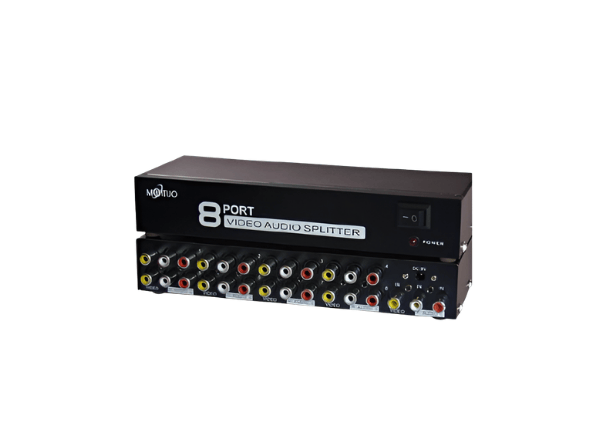

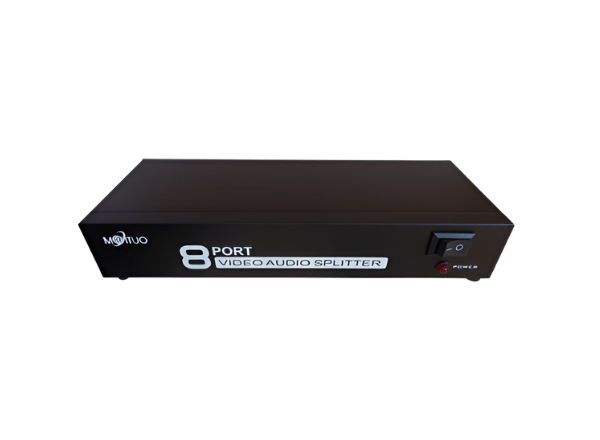

Maituo 8 Port AV Video Audio Splitter

DESCRIPTION

8 PORT AV SPLITTER (MT-108AV)
1 road AV input, 8 road AV Output, applicable securities market, education, etc

FEATURES:
1. Video

• Input level Resistance: VS 0.8-1.0Vp-p/75Ω
• Output level Resistance: VS 0.8-1.0Vp-p/75Ω
• Bandwidth: 50Hz-5.5MHz
• Input Connector: 1
• Output Connector: 8

2. Audio

• Input level Resistance: 2V(RMS)/47KΩ
• Output level Resistance: 2V(RMS)/1KΩ
• Frequency: 10Hz-20KHz?0db
• Input Connector: 1(R L)
• Output Connector: 8(R L)
• Power: DC 9V 50/60Hz 5W
• Enclosure: Metal
