$ 179


  • 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether. Up to 10 EAPs can be centrally managed.
  • Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
  • Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
  • 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
  • Highly Secure VPN: Supports up to 20 x LAN-to-LAN IPsec VPN, 16 x OpenVPN, and 16 x L2TP/PPTP VPN connections.
19-09-2023 7:12 AM

Model: ER7212PC

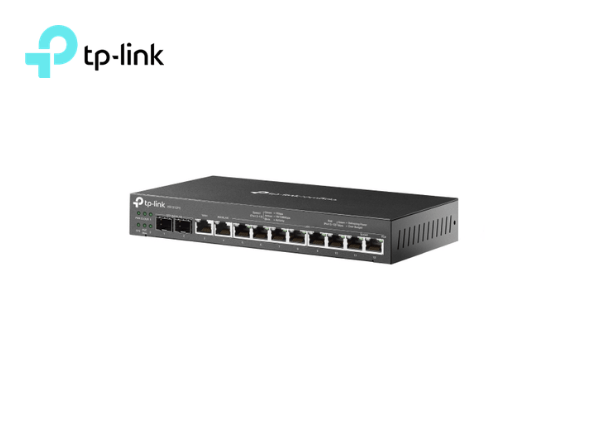

TP-Link Omada 3-in-1 Gigabit VPN Router

Overview

  • 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether. Up to 10 EAPs can be centrally managed.
  • Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
  • Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
  • 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
  • Highly Secure VPN: Supports up to 20 x LAN-to-LAN IPsec VPN, 16 x OpenVPN, and 16 x L2TP/PPTP VPN connections.
  • Easy Installation: Fanless and compact design for desktop and wall mounting.
  • Robust Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
  • Centralized Management: On-premises management to locally monitor and manage devices securely or monitor and manage devices with Omada app or Web UI.

Specifications

HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

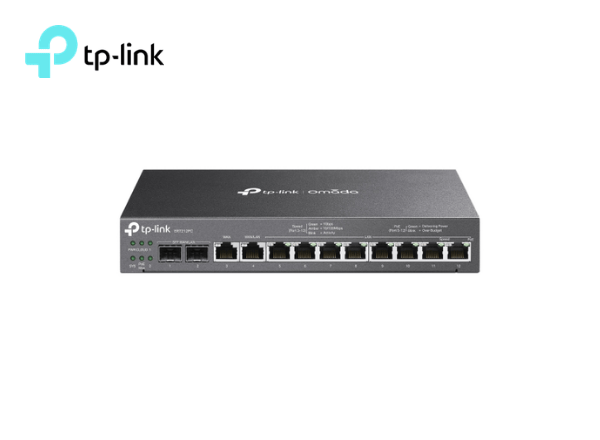

Interface • 2 Gigabit SFP WAN/LAN ports • 1 Gigabit WAN port • 1 Gigabit LAN/WAN port • 8 Gigabit LAN ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity Fanless
Button Reset Button

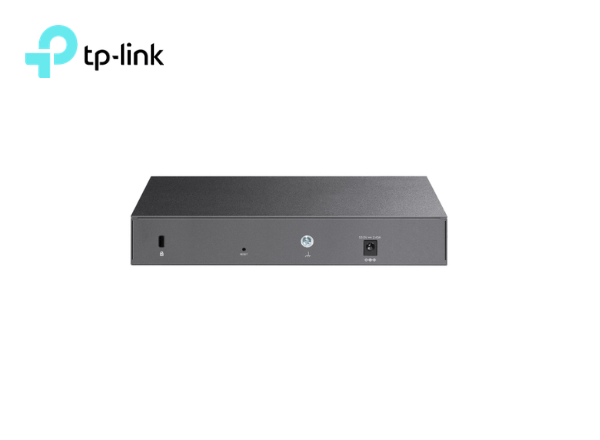

Power Supply 53.5VDC/2.43A Adapter
PoE Budget 8 ports PoE+ output, 110 W PoE Budget
Flash 8Mb Nor + 4 GB EMMC
DRAM 1 GB DDR3
LED PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection 4 kV surge protection
Enclosure Steel

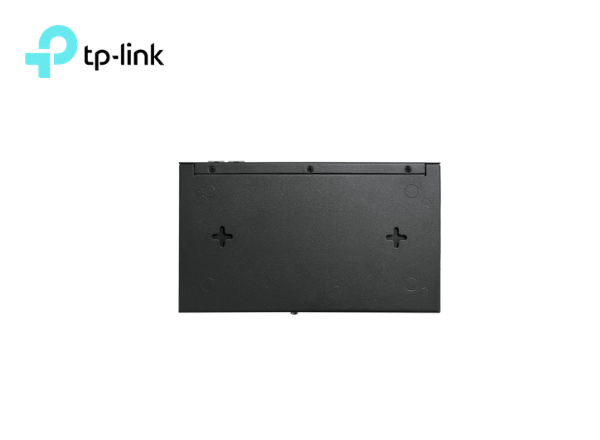

Mounting Desktop/Wall-mount
Max Power Consumption • 133.2W with PoE Max • 13.88W without PoE
PERFORMANCE
Concurrent Session 24,980
New Sessions /Second 1,900
NAT (Static IP) 935.5 Mbps / 942.1 Mbps
NAT(DHCP) 940.2 Mbps / 941.7 Mbps
NAT(PPPoE) 913.1 Mbps / 935.2 Mbps
NAT (L2TP) 545.0 Mbps / 912.7 Mbps
NAT (PPTP) 523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput (AES256) 168.5 Mbps
IPsec VPN Throughput AES256: 168.5 Mbps
OpenVPN 34 Mbps
L2TP VPN Throughput • Unencrypted: 845.3 Mbps • Encrypted: 333.2 Mbps
PPTP VPN Throughput • Unencrypted: 1012.6 Mbps • Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate 154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps
BASIC FUNCTIONS
WAN Connection Type • Static IP • Dynamic IP • PPPoE • PPTP • L2TP
MAC Clone Modify WAN MAC Address
DHCP • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6 support
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing • Policy Routing
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection
NAT • Multi-Net NAT • Virtual Server • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit IP-based Session Limit
VPN
SSL VPN -
IPsec VPN • 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • SHA1, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server • PPTP VPN Client (10) • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server • L2TP VPN Client (10) • 16 Tunnels • L2TP over IPSec
OpenVPN • OpenVPN Server • OpenVPN Client (10)§ • 16 OpenVPN Tunnels
SECURITY
Filtering URL Filtering
ARP Inspection -
Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever
MANAGEMENT
Omada App Yes
Centralized Management Management of up to 2 Omada switches, and 10 Omada access points
Cloud Access Yes
Service Dynamic DNS (Dyndns, No-IP)
Maintenance • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • Management of up to 2 Omada switches and 10 Omada access points
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER7212PC • Power Adapter • Power Cord • Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
