Description
Model: TL-SF1016

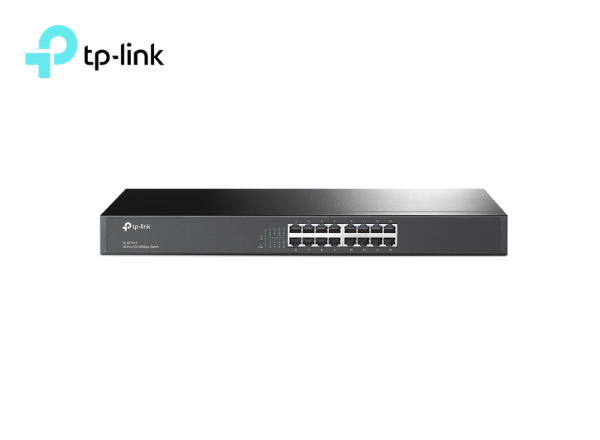

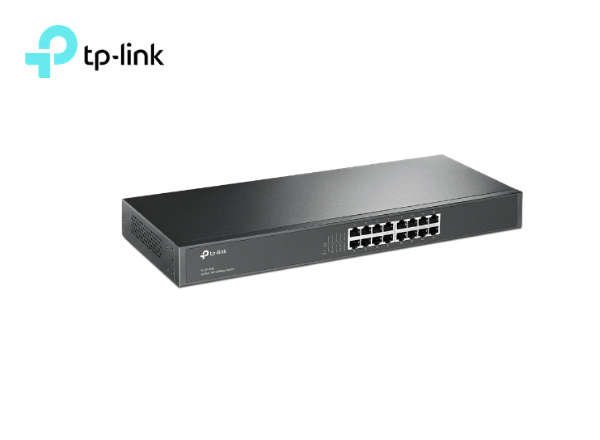

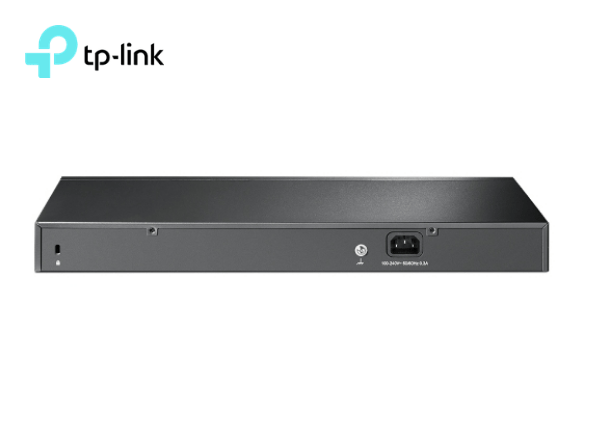

TP-Link 16-Port 10/100Mbps Rackmount Switch
Overview
- 16 10/100Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 75%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Interface | 16 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 2.1W |
| Dimensions ( W x D x H ) | 17.3*7.1*1.7 in. (440*180*44 mm) |
| Max Power Consumption | 2.06W(220V/50Hz) |
| Max Heat Dissipation | 7.03BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 3.2Gbps |
| Packet Forwarding Rate | 2.38Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 2Mb |
| Advanced Functions | Green Technology 802.3X Flow Control |
| Green Technology | Innovative energy-efficient technology saves power up to 70% |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | 16-Port 10/100Mbps Rackmount Switch Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Environment | Operating Temperature: 0โ~40โ (32โ~104โ); Storage Temperature: -40โ~70โ (-40โ~158โ); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
