$ 125


  • Compliant with 802.11a/n, 5GHz wireless application
  • 23dBi signal gain
  • Direction operation
  • N Type Female connector
  • Provided mounting kits enable easy installation for various environments
16-08-2022 1:36 PM

Model: TL-ANT5823B

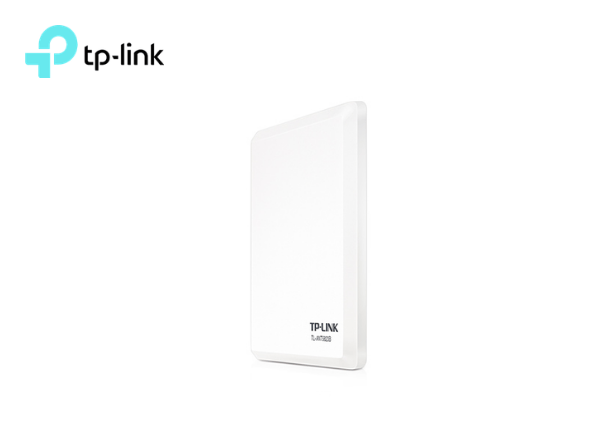

TP-Link 5GHz 23dBi Outdoor Panel Antenna

Features

  • Compliant with 802.11a/n, 5GHz wireless application
  • 23dBi signal gain
  • Direction operation
  • N Type Female connector
  • Provided mounting kits enable easy installation for various environments

Specifications

Frequency 5.15~5.85GHz
Impedance 50 Ohms
Gain 23dBi
VSWR(MAX.) โ‰ค1.5
HPOL Beamwidth 12
VPOL Beamwidth 12
Polarization Vertical or Horizontal
Connector Type N Female
Mounting Wall Mount / Pole Mount
Operating Temp. -40โ„ƒ~60โ„ƒ(-40โ„‰~140โ„‰)
Storage Temp. -40โ„ƒ~60โ„ƒ(-40โ„‰~140โ„‰)
Package Contents 23dBi Outdoor Panel Antenna Installation mounting kits Quick Installation Guide
F/B Ratio ๏ผž28dB
Maximum Input Power 100W
Mounting Mast Diameter ร˜30~ร˜50 mm
Survival Wind Speed 241Km/hr
Radome Material ABS
Standards RoHS, WEEE
Dimension 320ร—320ร—20(mm)
