Description

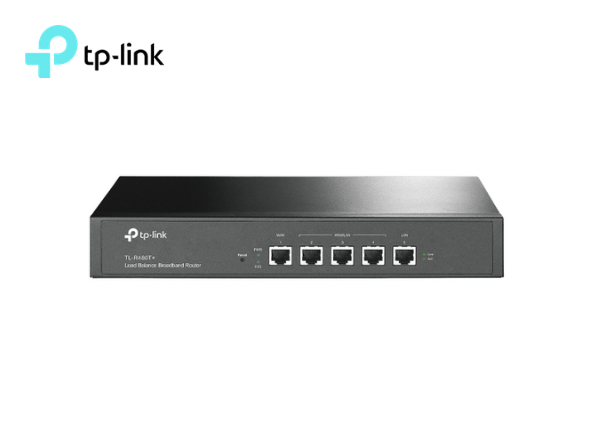

Model: TL-R480T+
TP-Link Desktop/Rackmount Load Balance Broadband Router
Overview
- Up to 4 WAN 10/100 ports for multiple Internet connections. Load balancing by bandwidth distribution, by type of application, or simply failover when the main connection is disturbed1
- Web interface portal authentication evaluate and authenticate all the accesses to the Internet for better access and bandwidthย management
- Marshals bandwidth resource to specific clients based on their unique application environments
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
| Interface | 1 Fixed 10/100 Ethernet WAN Port 1 Fixed 10/100 Ethernet LAN Port 3 Changeable 10/100 Ethernet WAN/LAN Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
| Button | Reset Button |
| Power Supply | Internal Universal Power Supply AC100-240V~50/60Hz input |
| Flash | 16MB |
| DRAM | 128MB |
| LED | PWR, SYS, WAN, LAN, WAN/LAN |
| Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7in. (294 x 180 x 44mm) 13-inch / 19-inch Standard Rack-Mount Width, 1U Height |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 30K |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
| DHCP | DHCP Server/Client, DHCP Address Reservation |
| MAC Clone | Modify WAN/LAN MAC Address |
| Switch Setting | Port Mirror, Rate Control, Port Configuration, Port VLAN |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/MAC/URL/WEB Filtering |
| IGMP | IGMP Proxy/IGMP Snooping |
| Forwarding | Virtual Server, Port Triggering, DMZ |
| Load Balance | Policy Routing, Link Backup |
| NAT | One-to-One NAT, Multi-Nets NAT |
| Routing | Static Routing |
| Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death |
| Traffic Control | Bandwidth Control, Session Limit |
| MANAGEMENT | |
|---|---|
| Service | Dynamic DNS, UPnP |
| Maintenance | System Time Setting Daylight Saving Time SNMP Diagnostics Firmware Upgrade Factory Defaults/Reboot Backup/Restore System Log Remote Management Statistics |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | TL-R480T Power Cord RJ-45 Ethernet Cable Installation Guide Rack-mount Kit |
| Environment | Operating Temperature: 0โ~40โ (32โ~104โ) Storage Temperature: -40โ~70โ (-40โ~158โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
