Description
Model: EAP230-Wall

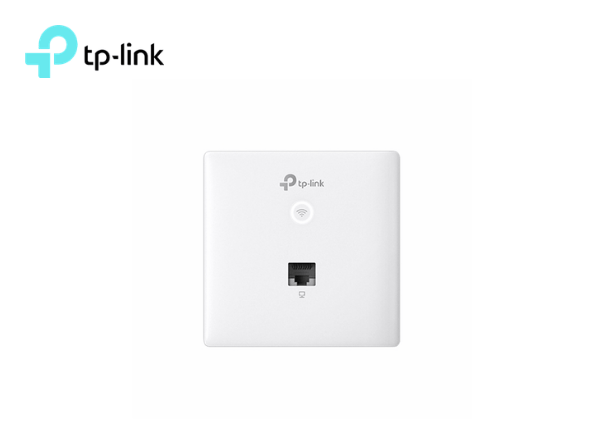

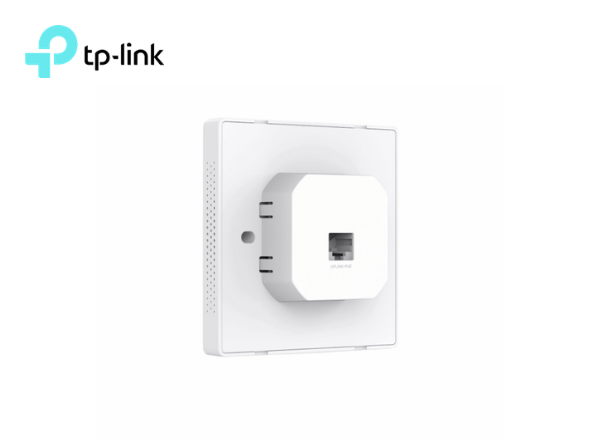

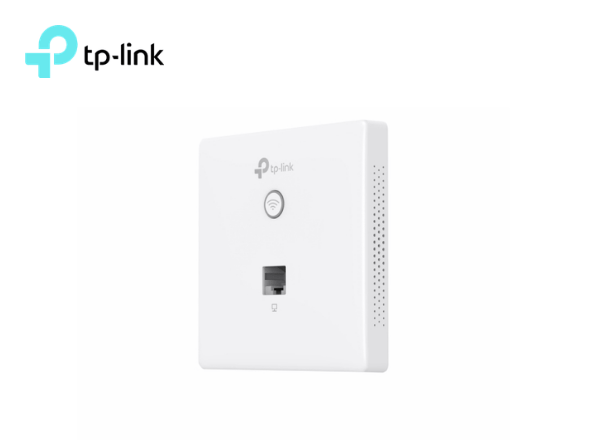

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Overview
- Unprecedented thin design with just11mm.
- 802.11ac wave 2 technology allows multiple users to access the internet at the same time.
- EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
- The same size and shape as a light switch or power outlet faceplate to fitΒ perfectly in any room.
- Centralized Cloud ManagementβAnytime, Anywhere.
- Easy Managment with Omada App.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | Uplink: 10/100/1000 Mbps Ethernet Port*1 Downlink: 10/100/1000 Mbps Ethernet Port*1 |
| Physical Security Lock | No |
| Button | LED/Wi-Fi Button, RESET |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 7 W |
| Dimensions ( W x D x H ) | 3.4 Γ 3.4 Γ 1.2 in (86.8 Γ 86.8 Γ 30.2 mm) |
| Dimensions | 3.4 Γ 3.4 Γ 1.2 in (86.8 Γ 86.8 Γ 30.2 mm) |
| Antenna | 2 Dual-Band Antennas 2.4GHz: 2*4 dBi 5GHz: 2*3.6 dBi |
| Mounting | Wall Plate Mounting |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Client Capacity | 200+* |
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Wireless Functions | 16 SSIDsοΌUp to 8 SSIDs on each bandοΌ Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client MU-MIMO Band Steering Beamforming |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | CE: β€20 dBm (2.4 GHz, EIRP) β€23 dBm (5 GHz, EIRP) |
| MANAGEMENT | |
|---|---|
| Omada Cloud Access | Yes |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Centralized Management | β’ Omada Cloud-Based Controller β’ Omada Hardware Controller (OC300) β’ Omada Hardware Controller (OC200) β’ Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall Installation Guide Mounting Screw |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: 0-40 β (32-104 β) Storage Temperature: -40-70 β (-40-158 β) Operating Humidity: 10-90% non-condensing Storage Humidity: 5-90% non-condensing |
