Description
Model: TL-SM311LM

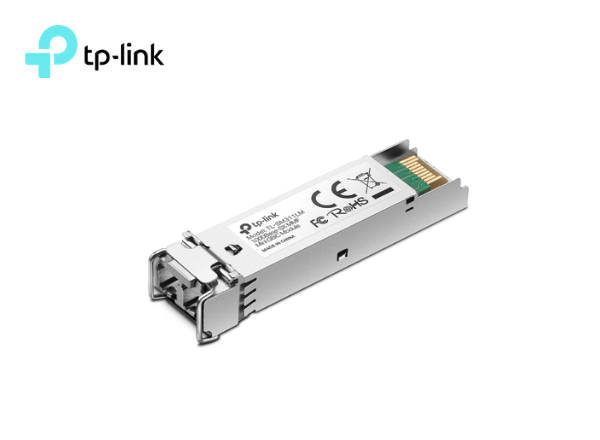

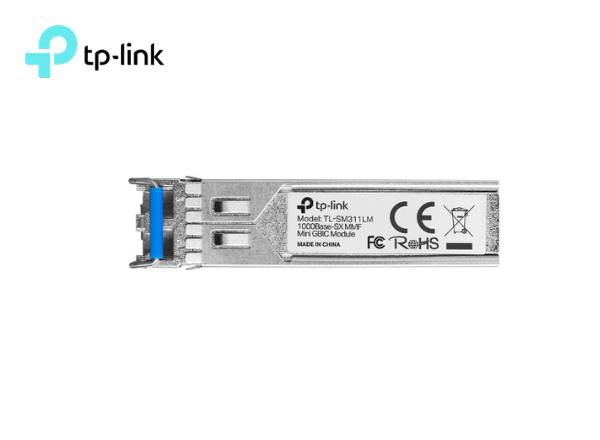

TP-Link MiniGBIC Module
Overview
- Multi-mode MiniGBIC module

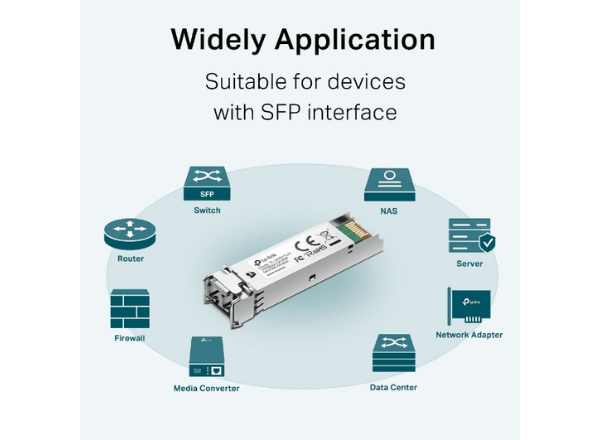

- Compatible withย all SFP ports on TP-Link productย including JetStream switches, and media converter MC220L.
- Work with MC200CMย with a multi-mode fiber connection

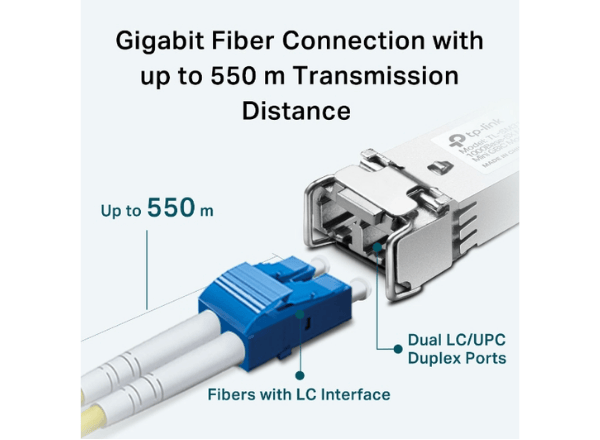

- Up to 550mย range with 50/125 ฮผmย multi-mode fiber
- Up to 275m range with 62.5/125 ฮผmย multi-mode fiber
Specifications
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | โข SFP Module TL-SM311LM โข Installation Guide |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Multi-mode Fiber |
| Fiber Type | 50/125ฮผm or 62.5/125ฮผm Multi-mode |
| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0โ~70โ (32โ~158โ) Storage Temperature: -40โ~80โ (-40โ~176โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
