$ 13


  • IEEE 802.3af compliant
  • Output:ย 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
09-08-2022 4:31 PM

Model: TL-POE10R

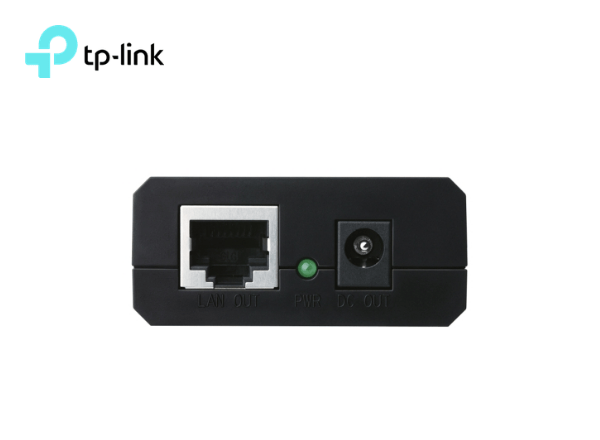

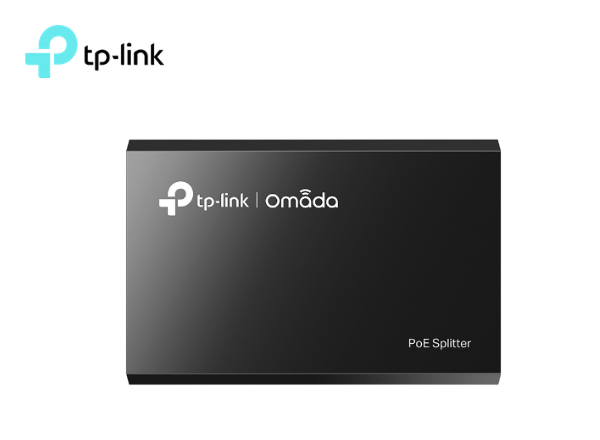

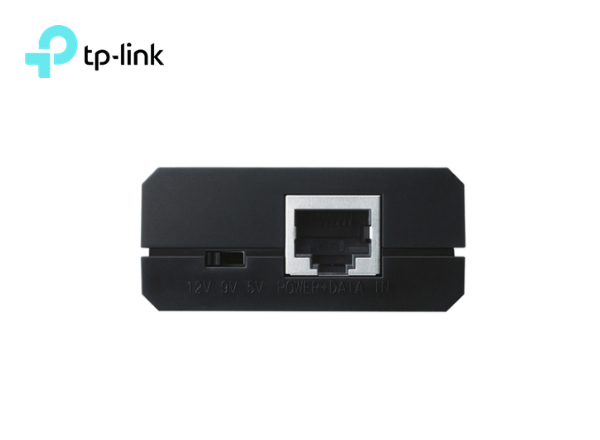

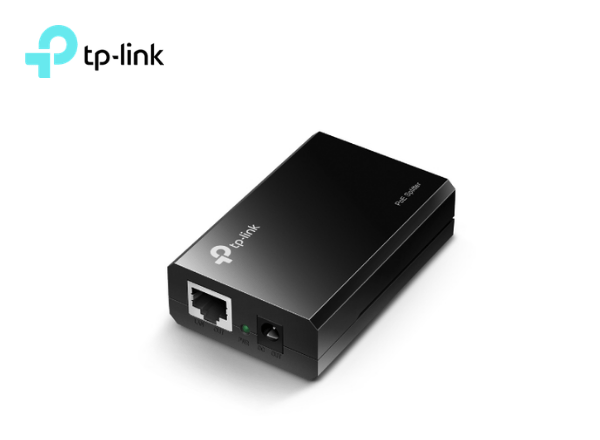

TP-Link PoE Splitter

Features

  • IEEE 802.3af compliant
  • Output:ย 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
  • Gigabit speed support
  • Plug-and-Play, requires no configuration

Specifications

HARDWARE FEATURES
Interface 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 POWER OUTPUT PORT (5.5 mm round barrel)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100ฮฉ STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100ฮฉ STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
Basic Function Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator PWR
Dimensions ( W x D x H ) 3.2 ร— 2.1 ร— 0.9 in. (81 ร— 54 ร— 24 mm)
SOFTWARE FEATURES
Basic Function Compatible with IEEE 802.3af compliant power sources (PSE) Delivers power up to 100 meters Selectable 12VDC, 9VDC or 5VDC power output
OTHERS
Certification FCC, RoHS
Package Contents PoE Splitter TL-POE10R Power Cord RJ45 Cable Installation Guide
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
