Description

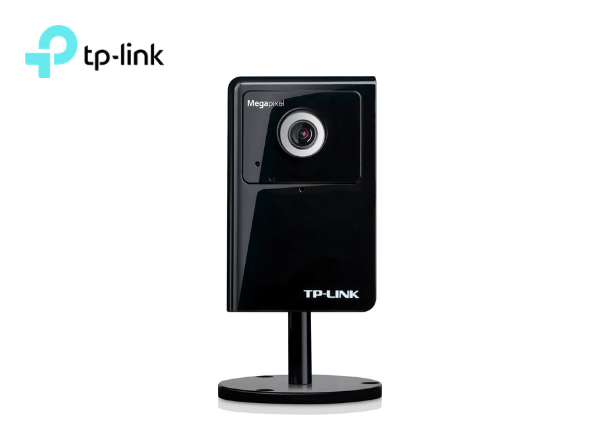

Model: TL-SC3430
TP-Link H.264 Megapixel Surveillance Camera
Overview
- 1.3 megapixel progressive scan CMOS sensor produces high definition video quality
- H.264, MPEG-4 and MJPEG video streaming for different quality requirements and bandwidth environments
- Built-in Samba (widows)/NFS (Unix) network client for convenient video storage to NAS (Network Attached Storage)
- 2-way audio allows users to listen and speak remotely
- 3GPP compliance allows users to view live video via their 3G mobile devices
Specifications
| CAMERA | |
|---|---|
| Image Sensor | 1/4″ Progressive scan CMOS sensor |
| Minimum Lighting | 0.5 Lux |
| Resolution | 1.3 Megapixel (1280 x 1024) |
| Glasses | F: 1.8, f: 4.2 mm |
| Vision angle | Diagonal 58ยฐ, Horizontal 46ยฐ, Vertical 35ยฐ |
| Zoom Digital | 10x Digital |
| AUDIO | |
|---|---|
| Audio Communication | 2-Way full duplex |
| Audio Input | Built-in microphone |
| Audio output | Audio line output connector for external speaker |
| Audio Compression | G.711 ยต law, a law, and AMR |
| RED | |
|---|---|
| Standards and Protocols | Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP, 3GPP/ISMA RTSP |
| Security | Multiple password-protected user levels HTTPS encryption IP filter |
| INTERFACES | |
|---|---|
| Network Interface | RJ-45 for Ethernet 10/100 Base-T |
| Power connector | DC power jack |
| Audio output | 3.5 mm jack for line out |
| Button | Reset push button |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Advanced | Built-in audio & motion detection, schedule, network link down |
| Event Trigger | E-mail, FTP, network storage |
| Notification Method | Pre- and Post-alarm buffer Built-in Samba/NFS Client for NAS |
| GENERAL | |
|---|---|

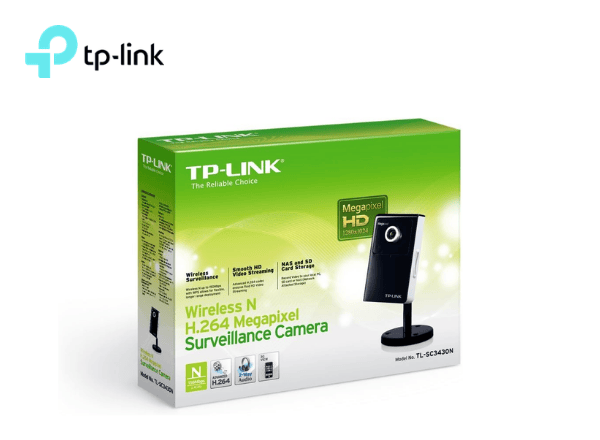

| Package content | H.264 Megapixel Surveillance Camera TL-SC3430 Power Adaptor RJ-45 Ethernet Cable Quick Installation Guide Resource CD Camera Mount Kit |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature: 0ยฐC~40ยฐC (32ยฐF ~104ยฐF) Storage Temperature: -40ยฐC ~70ยฐC (-40ยฐF ~158ยฐF) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Dimensions | 3.7 x 2 .7 x 1.2 in. (96 x 58 x 31 mm) |
| External Power Supply | 12V DC, Max 12W |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | Motion JPEG MPEG-4 Part 2 (ISO/IEC 14496-2) Simple Profile H.264 Baseline Profile |
| Resolution and Frame Rate | Max. 15 fps at 1280×1024 (SXGA), 1280×720 (HD 720) Max. 30 fps at 640×480 (VGA), 320×240 (QVGA) |
| Video Streaming | Simultaneous Motion JPEG, MPEG-4, H.264 and 3GPP (4 streaming) Controllable Frame rate and bandwidth Support Unicast and Multicast Support 3GPP/ISMA RTSP (Real Time Streaming Protocol) |
| Image Settings | Rotation: Mirror, Flip, Mirror Flip Configurable brightness, contrast, saturation Overlay capabilities: time, date, text and privacy image |
| SURVEILLANCE MANAGEMENT | |
|---|---|
| Users | 10 simultaneous unicast users Unlimited number of users via multicast |
| Management Software Included | Viewing and recording up to 16 cameras |
| MINIMUM SYSTEM REQUIREMENTS | |
|---|---|
| Graphic card | 256 MB RAM graphic cards (or equivalent on-board graphic cards) |
| Memory | 1G RAM |
| Compatible Browser | Internet Explorer; Firefox; Chrome; Safari |
| SO Compatible | Windows 98/ME/2000/2003/XP/Vista/7, Mac OS, Linux |
| CPU | Core Duo 2.8GHz (or equivalent AMD) |
