Description

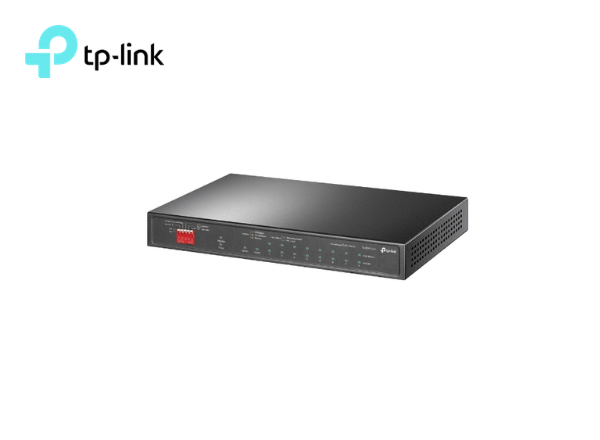

Model: TL-SG1210P
TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+
Overview
- 9ย 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Up to 250 m data and power transmissionย range under Extend Mode
- Priority Mode ensures high priority of ports 1โ2ย to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Easy to use, with no configuration and installation needed
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 209 ร 126 ร 26 mm |
| Max Power Consumption | 7.0 W (220/50Hz. no PD connected) 77.24 W (220/50Hz. with 63W PD connected) |
| Max Heat Dissipation | 23.87 BTU/h (no PD connected) 263.39 BTU/h (with 63W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Extend Mode Button (Ports 1โ4, Up to 250 m PoE power supply and data transmission) Priority Mode Button (Ports 1โ2) Isolation Mode Button (Ports 1โ4 / 5-8) PoE Auto Recovery (Ports 1-8) |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0ยฐC~40ยฐC (32ยฐF~104ยฐF) Storage Temperature: -40ยฐC~70ยฐC (-40ยฐF~158ยฐF) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
