TP-Link TL-WA3001 AX3000 Gigabit Wi-Fi 6 Access Point | T60

$75.00

  • Gigabit WiFi 6 Speed for 4K Streaming – 3000 Mbps Dual Band WiFi for faster browsing, streaming and downloading, all at the same time.

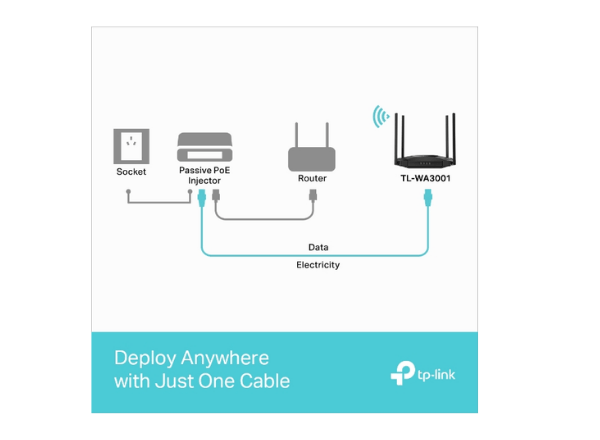

  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
  • Captive Portal – Offers a designed portal page for heightened security and marketing.
Categories: , ,

Description

Model: TL-WA3001

TP-Link AX3000 Gigabit Wi-Fi 6 Access Point

Overview

  • Gigabit WiFi 6 Speed for 4K Streaming – 3000 Mbps Dual Band WiFi for faster browsing, streaming and downloading, all at the same time.
  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
  • Captive Portal – Offers a designed portal page for heightened security and marketing.

Specifications

HARDWARE FEATURES
Interface 1 Gigabit Port (Supports Passive PoE)
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 48V/0.5A
Dimensions ( W x D x H ) 9.4×6.5×1.7 in (240×165×43.6mm)
Antenna 4 Fixed High Performance Antennas

WIRELESS FEATURES
Wireless Standards IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
Reception Sensitivity 5 GHz:
11ax HE20 MCS0:-97dBm, 11ac VHT20 MCS9:-73dBm, 11ax HE20 MCS11:-67dBm
11ax HE40 MCS0:-94dBm, 11ac VHT40 MCS9:-70dBm, 11ax HE40 MCS11:-63dBm
11ax HE80 MCS0:-91dBm, 11ac VHT80 MCS9:-66dBm, 11ax HE80 MCS11:-60dBm
11ac VHT160 MCS9:-63dBm, 11ax HE160 MCS11:-58dBm
2.4 GHz:
11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS8:-73dBm, 11ax HE20 MCS11:-65dBm
11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS9:-69dBm, 11ax HE40 MCS11:-62dBm
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control
Wireless Security WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions
Transmission Power FCC: <23dBm(2.4GHz), <22dBm(5GHz)

SOFTWARE FEATURES
Quality of Service WMM
Operating Modes Access Point, Range Extender, Client, Multi-SSID
System Tools SNMP, Ping Watchdog
DHCP Server, DHCP Client List
Protocols IPv4, IPv6

OTHER
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP

DNS
DNS
• Port: 53   Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP

App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP

OTHERS
Certification FCC, RoHS
Package Content Wireless Access Point TL-WA3001
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or
other JavaScript-enabled browser
Environment Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Operating Humidity: 10%~90% non-condensing
