Description
Model: TL-WR846N
TP-Link 300 Mbps Multi-Mode Wi-Fi Router
Overview
- High-Speed Wi-Fi – 300 Mbps wireless transmission rate is ideal for both bandwidth sensitive tasks and basic work.†
- Boosted Coverage – 4× 5dbi antennas and 2×2 MIMO deliver strong Wi-Fi signal and reliable connections.※
- Multi-Mode 4 in 1 – Supports Router, Access Point, Range Extender, and WISP modes to meet any network need.
- Cloud Service – Remote router control via the cloud.
- EasyMesh-Compatible – Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.§
- Parental Controls – Manages when and how connected devices can access the internet.
- Guest Network – Provides separate access for guests while securing the host network.
- Smooth HD Streaming – Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported – Compatible with the IPv6 (the latest Internet Protocol version 6).
Specifications
Standards and Protocols | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
---|---|
WiFi Speeds | N300 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range | 2 Bedroom Houses
2× Fixed Antennas |
WiFi Capacity | Legacy |
Working Modes | Router Mode Access Point Mode Range Extender Mode WISP Mode |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
---|---|
Guest Network | 1× 2.4 GHz Guest Network |
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
Processor | Single-Core CPU |
---|---|

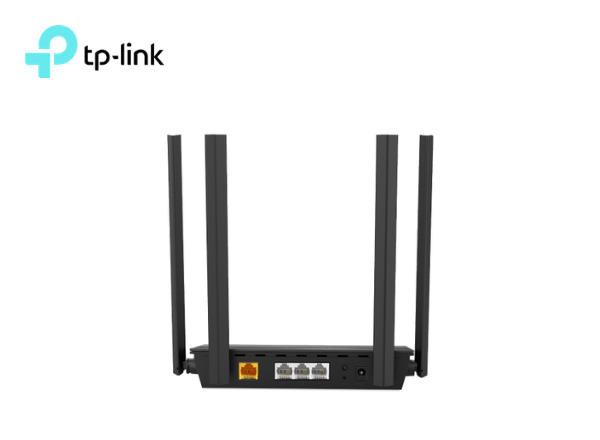

Ethernet Ports | 1× 10/100 Mbps WAN Port 3× 10/100 Mbps LAN Ports |
Buttons | Reset Button WPS/Wi-Fi Button |
Power | 5 V ⎓ 0.6 A |
Protocols | IPv4 IPv6 |
---|---|
EasyMesh | Mesh networking creates smooth, fast, stable roaming. TL-WR846N can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Learn More> |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | NO-IP DynDNS |
Management Features | Tether App Webpage Check Web Emulator> |
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
---|---|
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
WiFi Transmission Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
---|---|
WiFi Reception Sensitivity | 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER |
Dimensions (W×D×H) | 7.2 × 3.7 × 1.3 in (182.7 × 94 × 33.3 mm) |
---|---|
Package Content | Wi-Fi Router TL-WR846N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
