Description
Model: MC112CS

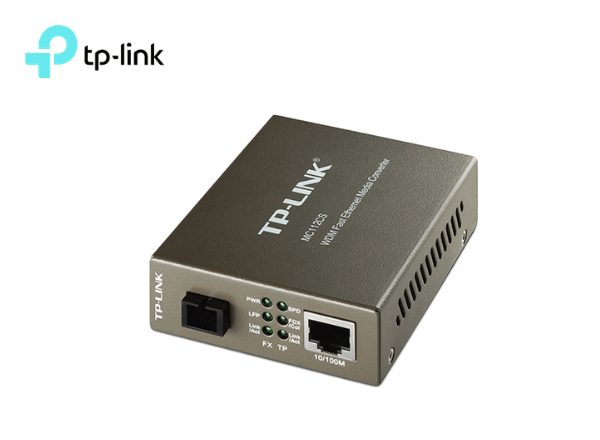

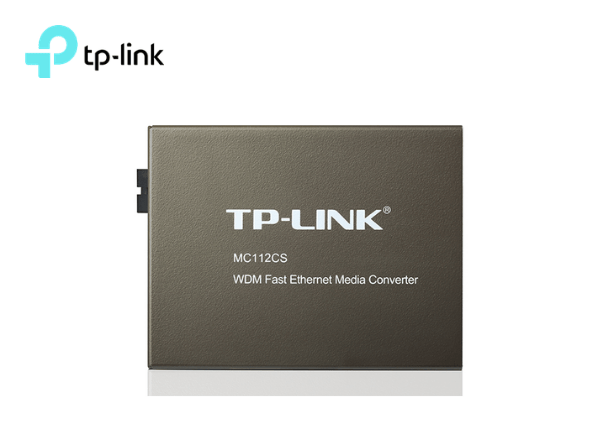

TP-Link 10/100Mbps WDM Media Converter
Overview
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Work with MC112CS WDM single fiber media converter
- Extends fiber distance up to 20km (12.5 miles)
Specifications
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u |
| Basic Function | Adopts WDM technology Half/Full-Duplex transfer mode for FX port minimize the loss caused by link failure timely Extends fiber distance up to 20km |
| Ports | 1 x 100M SC/UPC port 1 x 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm Tx/1550nm Rx |
| WDM TX | 1310nm |
| WDM RX | 1550nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ξ© STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ξ© STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |

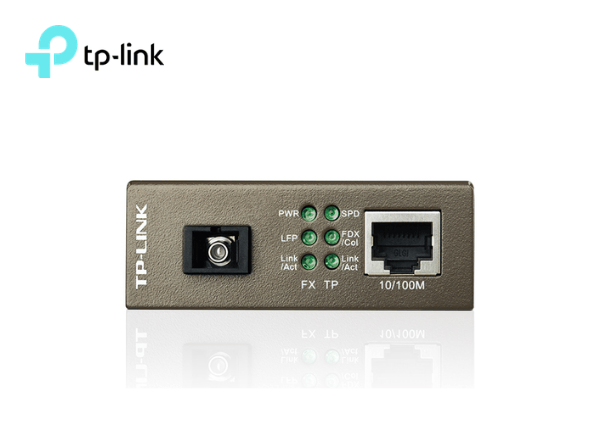

| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 x 2.9 x 1.1 in. (95 x 73 x 27 mm) |

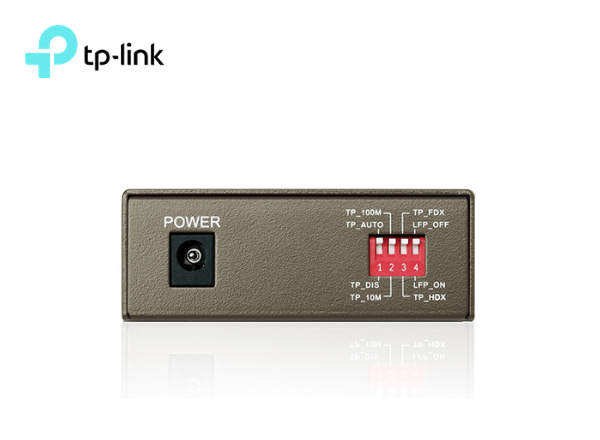

| Power Supply | External Power Adapter |
| Max Power Consumption | 2.41W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | β’ Media Converter MC112CS β’ Power Adapter β’ Installation Guide |
| Environment | Operating Temperature: 0β~40β (32β~104β) Storage Temperature: -40β~70β (-40β~158β) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
