ZKTeco Time & Attendance and Access Control Terminal IN01-A | Z165

Description

Model: IN01-A

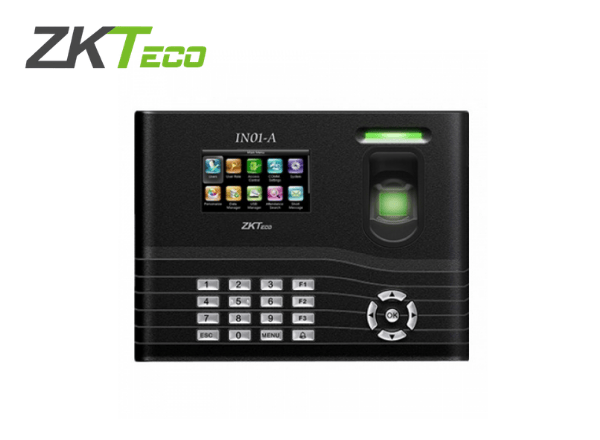

ZKTeco Time & Attendance and Access Control Terminal IN01-A

IN01-A is an innovative biometric fingerprint reader for time attendance and access control applications, Built-in 2000 mAh backup battery can eliminate power-failure problems. The IN01-A supports optional GPRS and Wi-Fi and features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, highimage quality optical fingerprint sensor. The 3” TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and makes sure the data transmission terminal and PC can be easily done within several seconds.

Overview

• 3” Color TFT screen
• ZK Fingerprint Sensor
• Reads Fingerprint and/or Card
• Multi-language in text and audio
• Built-in Serial and Ethernet ports
• Built-in battery backup provides approx. 4 hours of continuous operation
• Optional built-in wireless Wi-Fi or GPRS for wireless communication
• SDK available for OEM customers and software developers

Specifications

• Fingerprint Capacity: 3.000
• Record Capacity: 100.000
• Display: 3-inch Screen
• Communication: TCP/IP, RS232-485, USB-host/client
• Standard Functions: Work code, SMS, DST, Built-in Battery, Multiple Verify Mode,
  Self-Service Query, Automatic Status Switch
• Optional Functions ID/Mifare/HID, External Printer and Bell
• Software ZKTime. Net 3.0, ZKTime Enterprise/Lite
• Power Supply DC 12V 3A
• Verifi cation Speed ≤0.5 Sec.
• Operating Temp. 0 °C- 45 °C
• Operating Humidity 20%-80%
• Dimension 211,5 × 159,4 × 47,8 mm (Length × Width × Thickness)
• Net Weight 1.40 kg
