Description
Model: TX401
TP-Link 10 Gigabit PCI Express Network Adapter
Overview

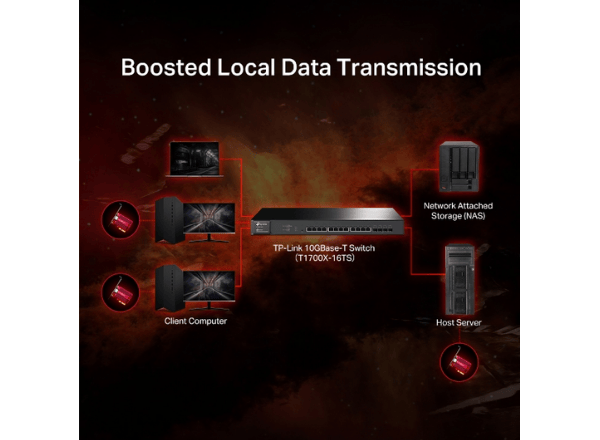

- 10 Gbps Networking –ย Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10ร faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.โ
- Versatile Compatibility –ย With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.

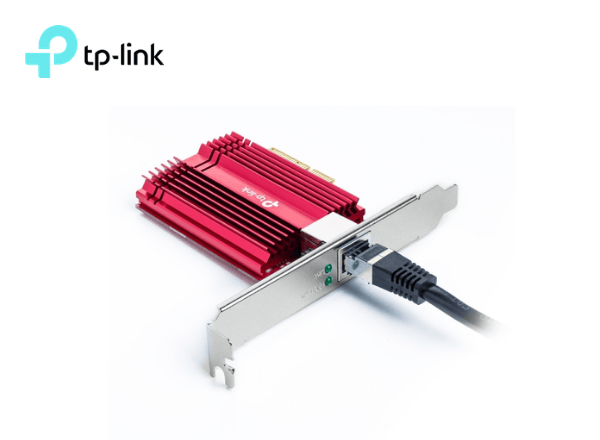

- CAT6A Ethernet Cable –ย To maximize TX401’s performance, a 1.5 m CAT6A Ethernet Cable is includedโrated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.

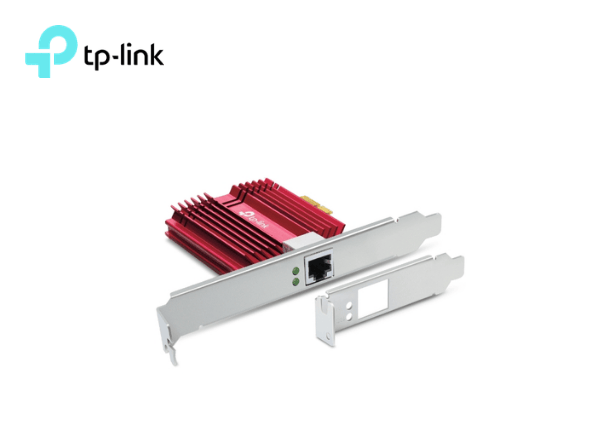

- Low-Profile and Full-Height Brackets –ย In addition to the standard bracket, aย low-profileย bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
- Comprehensive System Support – Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs.
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, IEEE802.3az, IEEE 802.3x |
Interface | 1ร PCI Express 3.0 x4, 1ร RJ45 Gigabit/Megabit Port |
Network Media | 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX |
LED | 10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act |
Data Rates | 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode, 200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode |
Dimensions | 120.8 ร 98.2 ร 21.5 mm (4.8 ร 3.9 ร 0.8 in) |
Flow Control | 802.3x |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |

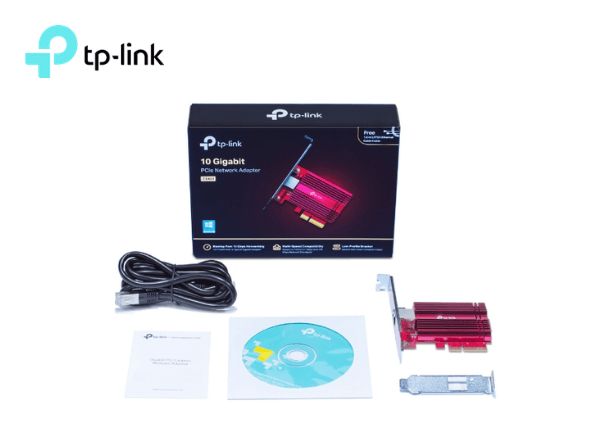

Package Contents | 10 Gigabit PCIe Network Adapter (TX401) Standard/Low-Profile Brackets Quick Installation Guide Resource CD 1.5 m CAT6A Ethernet Cable |
System Requirements | Windows 11/10/8.1/8/7, Windows Servers 2019/2016/ 2012 R2, Linux |
Environment | Operating Temperature: 0โ~40โ (32โ ~104โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
