$ 125


  • 16 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • With a total PoE power budget of 110W, up to 30W per port
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
06-08-2022 11:17 AM

Model: TL-SG1016PE

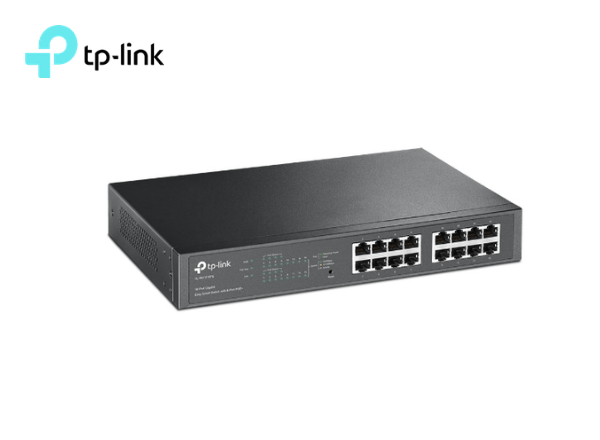

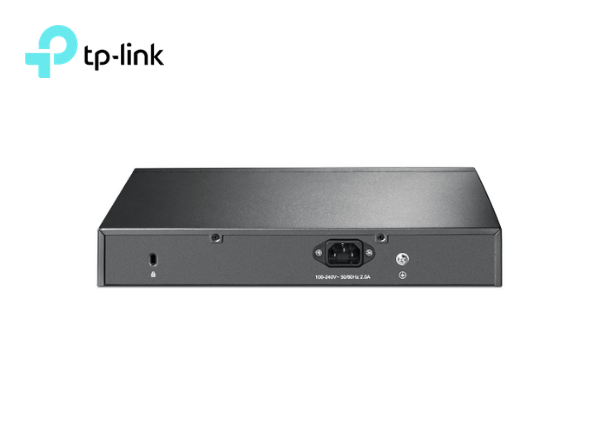

TP-Link 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+

Overview

  • 16 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • With a total PoE power budget of 110W, up to 30W per port
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100ฮฉ STP (maximum 100m)
Fan Quantity 1
Physical Security Lock Yes
PoE Ports (RJ45) Standard: 802.3 at (30W) PoE Ports: Port 1- Port 8 Total PoE Power Budget: 110W
Dimensions ( W x D x H ) 11.6 ร— 7.1 ร— 1.7 in. (294 ร— 180 ร— 44 mm)
Mounting 13" and 19" 1U rack mountable
Max Power Consumption 14.7W (no PD load) 131.4W (with 110W PD load)
Max Heat Dissipation 50.2 BTU/h (no PD load) 448.4 BTU/h (with 110W PD load)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management Web-based GUI Easy Smart Configuration Utility POE Auto Recovery
Transmission Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
