Description
Model: CS22H

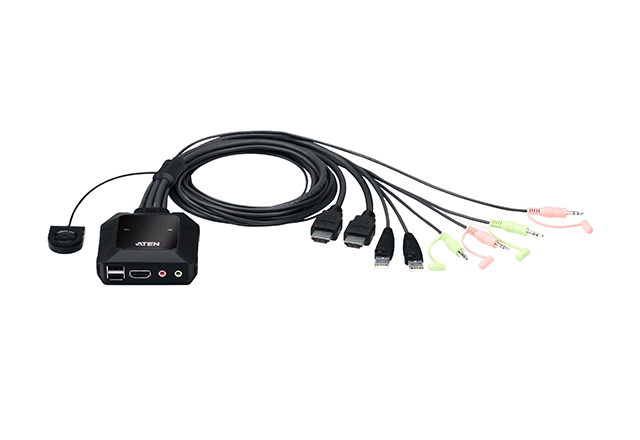

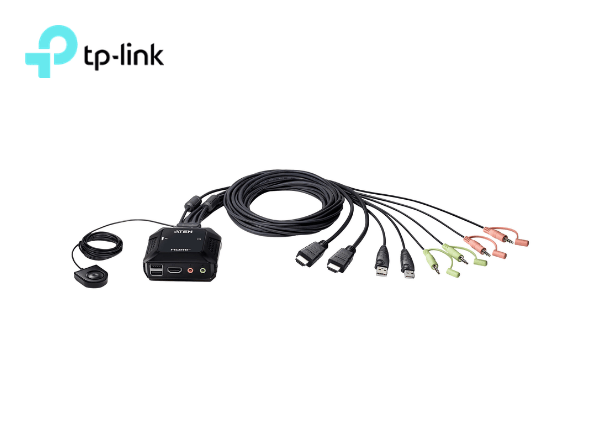

ATENย 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
- One KVM console controls two USB HDMI computers
- Superior video quality โ up to 4096 x 2160 @ 60 Hz

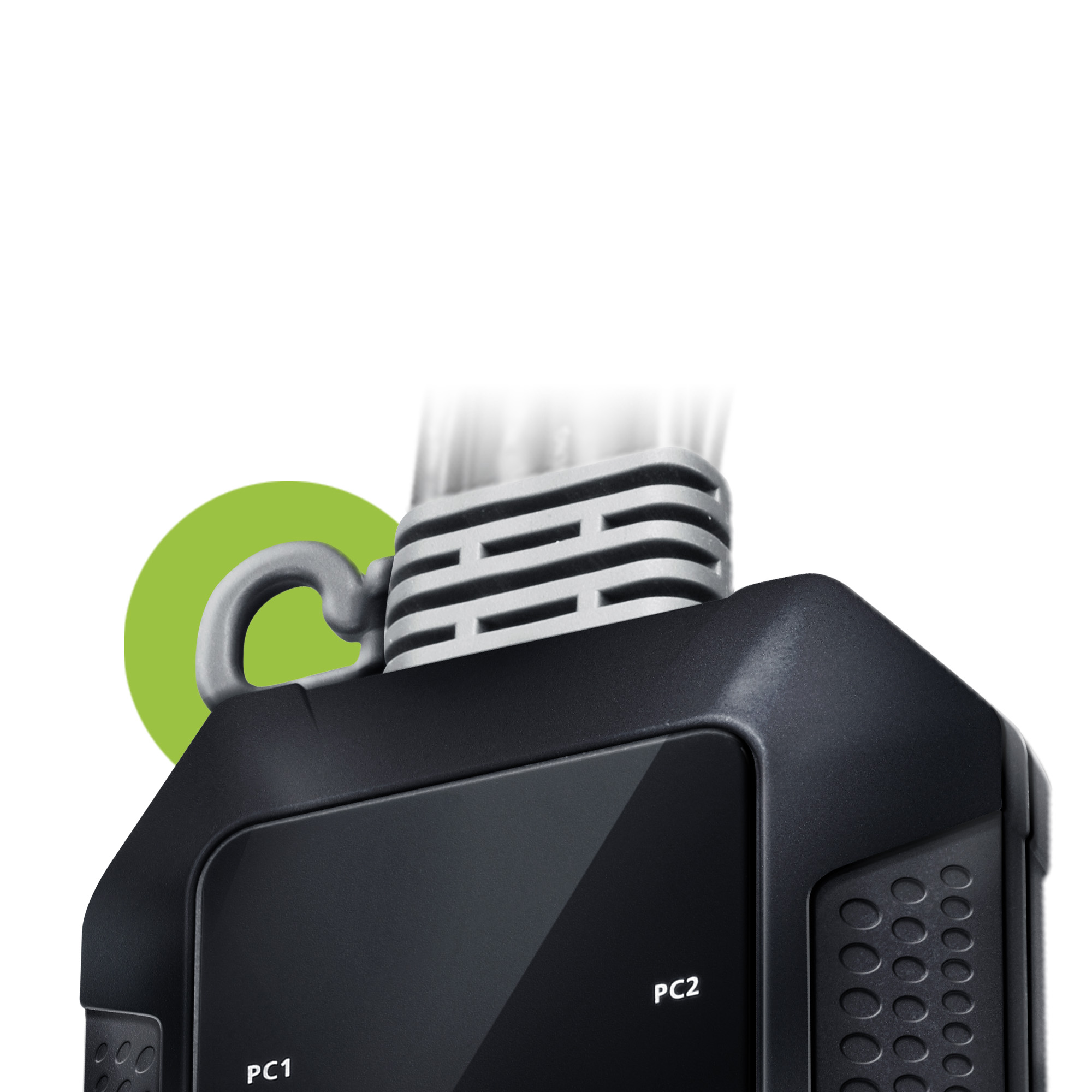

- Hook design for space-savingย and organized workstation
- Bus-powered design
Features
For a smart-looking, neat and tidy work environment, ATENโs patented all-in-one design Cable KVM Switches eliminate the bother of connecting multiple cables by consolidating keyboard, video and mouse cables into one, and building that cable right into switch.
The ATEN CS22H Cable KVM Switch can instantly access two computers with a USB and HDMI console while offering superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), bringing users maximum convenience and optimum visuals.
When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. Moreover, the CS22H supports USB peripheral sharing, easily integrating data and ensuring uninterrupted data transmission.

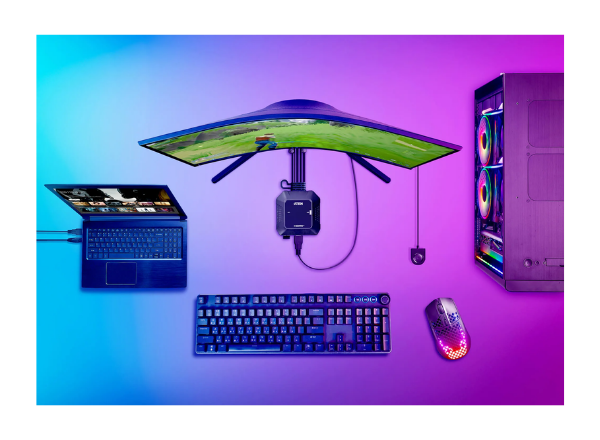

Its compact and bus-powered design provides an efficient installation without bulky cable setups, and the newly designed hook allows users to place the CS22H wherever they want to keep the desktop tidy and well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers at the desktop in any environment.
- One USB keyboard, mouse and one HDMI monitor control two HDMI computers
- Superior video quality โ up to 4K DCI (4096 x 2160 @ 60Hz)
- Computer selection via remote port selector
- HDMI compliant; HDCPย 2.2 compliant
- Supports USB hot-plugging

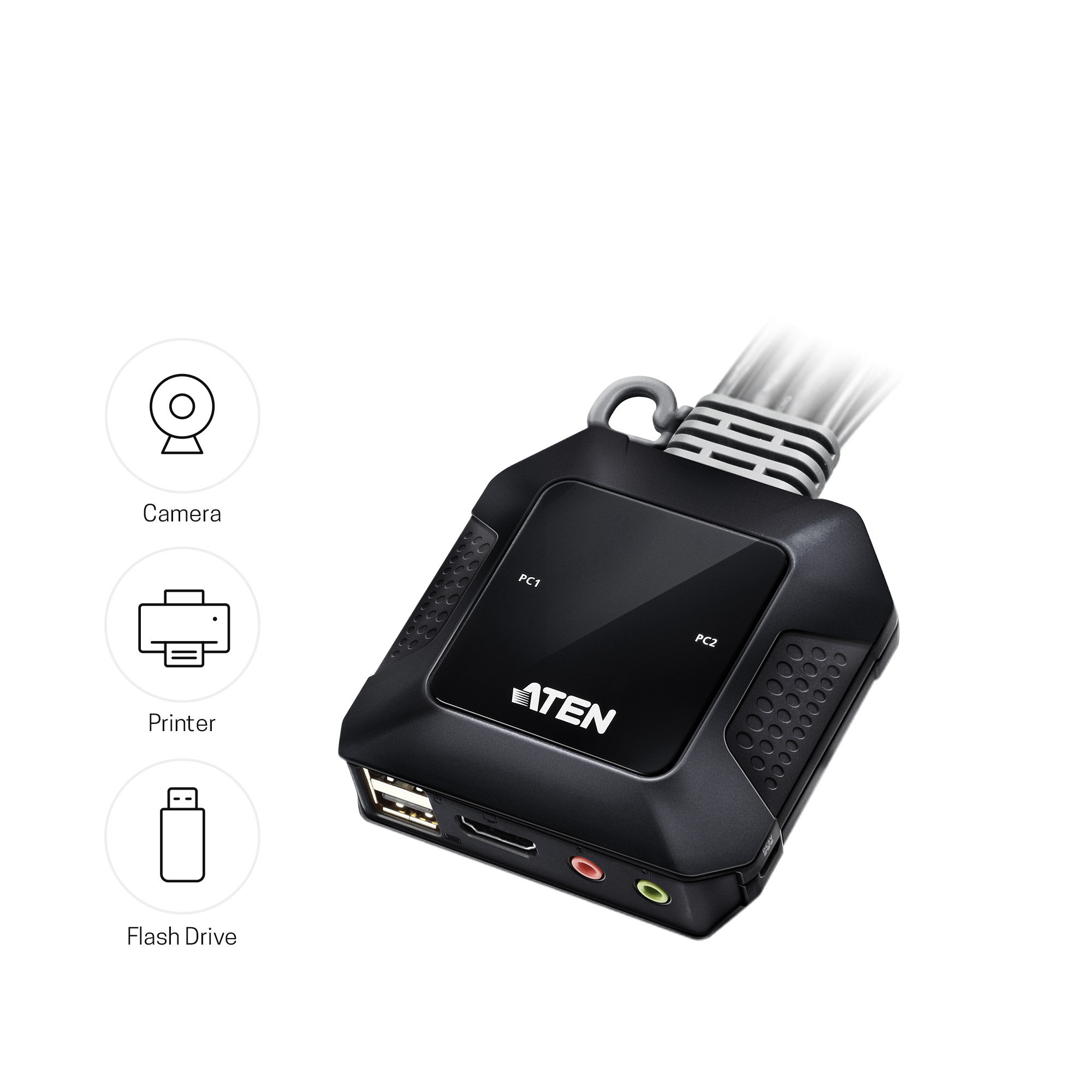

- The console USB ports can be used for USB peripheral sharing1
- Multiplatform support โ Windows, Mac and Linux
- Hook design for space-savingย and organized workstation
- Plug and play
- Bus-powered โ no external power adapter required
Specifications
| Computer Connections | 2 |
| Port Selection | Remote Port Selector |
| Connectors | |

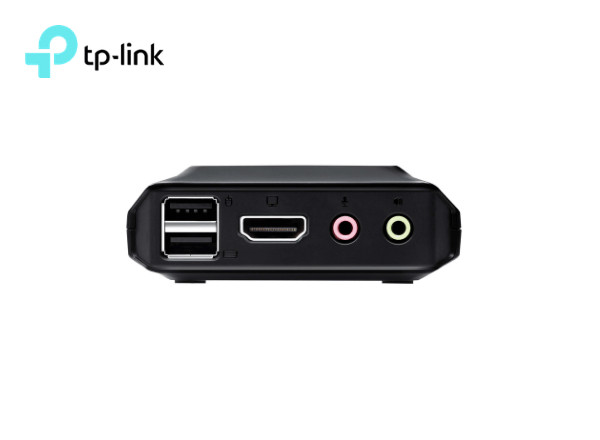

| Console Ports | 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink) |
| KVM (Computer) Ports | 2 x HDMI Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink) |
| Power (Optional) | 1 x USB Micro Type B Female |
| LEDs | |
| KVM Port (On Line /Selected) | 2 (White) |
| Cable Length | |
| KVM | 2 x 1.2 m |
| Remote Port Selector | 1.8 m |
| Emulation | |
| Keyboard / Mouse | N/A |
| Video | Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz |
| Power Consumption | DC5V:3.47W:29BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 50ยฐC |
| Storage Temperature | -20 – 60ยฐC |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.34 kg ( 0.75 lb ) |
| Dimensions (L x W x H) | 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
