Description

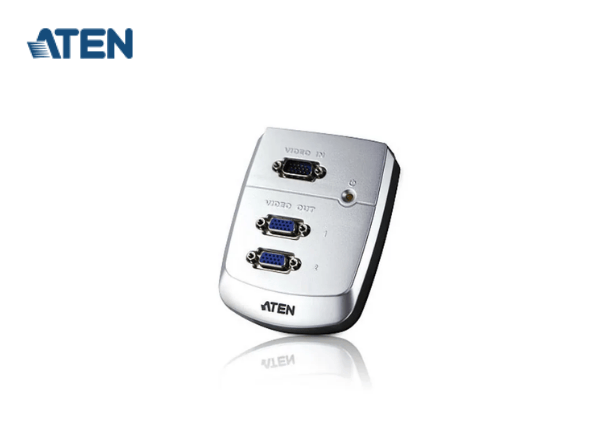

Model: VS82
ATENย 2-Port VGA Splitter Wall Plate (Plastic) (250MHz)
- One video input to 2 video outputs.
- High video resolution – up to 1920 x 1440.
- Supports up to 250 MHz bandwidth.
- Cascadable to 3 levels – provides up to 8 video signals.
Overview

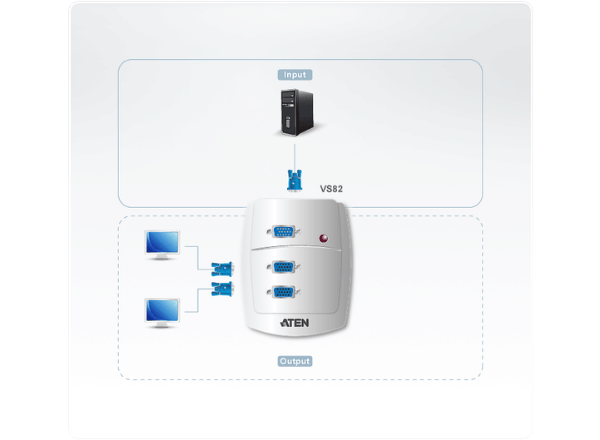

- The VS82 Video Splitter duplicates the video signal from an input source (i.e. a computer) and route it to up to 2 display devices (monitors, projectors, etc.). However, they go beyond being merely duplicators, in that they also enhance the video signals over distances up to 30 meters. Furthermore, they can be cascaded three levels to additional ATEN video splitters to support many numerous display devices. And they mount inconspicuously on the wall or out of sight.
Features
- One video input to 2 video outputs.
- Cascadable to 3 levels – provides up to 8 video signals.
- Supports up to 250 MHz bandwidth.
- Long distance transmission – up to 30 m (210′).
- High video resolution – up to 1920 x 1440.
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- Compact design with convenient topside connection, lays flat on a desktop or mounts on the wall.
- Supports VGA, XGA, SVGA, UXGA and multisync monitors.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Specifications
Video Input | |
Interfaces | 1 x HDB-15 Male (Blue) |
Max. Distance | 1.8 m |
Impedance | 75 ฮ |
Video Output | |
Interfaces | 2 x HDB-15 Female (Blue) |
Impedance | 75 ฮ |
Video | |
Max. Bandwidth | 250 MHz |
Max. Resolution | Up to 1920 x 1440 |
Max. Distance | Up to 30 m |
Connectors | |
Power | 1 x DC Jack |
Power Consumption | DC9V:1.02W:5BTU |
Environmental | |
Operating Temperature | 0-50ยฐC |
Storage Temperature | -20 – 60ยฐC |
Humidity | 0 – 80% RH, Non-Condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.14 kg ( 0.31 lb ) |
Dimensions (L x W x H) | 8.76 x 11.46 x 3.33 cm (3.45 x 4.51 x 1.31 in.) |
Carton Lot | 20 pcs |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
