$ 50


  • Hardware wireless controller enable administrators to easily manage hundreds of CAPs
  • Support Power over Ethernet (802.af) for convenient and affordable installation
  • Simple mounting design for easy attachment to a wall or ceiling
  • Captive portal provides on convenient method of authentication for Wi-Fi guests
  • Enterprise class Wi-Fi security help to decrease network security threats
03-08-2022 4:10 PM

Model: CAP300

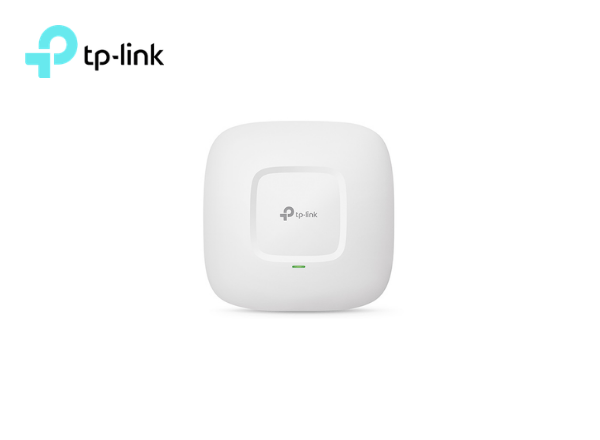

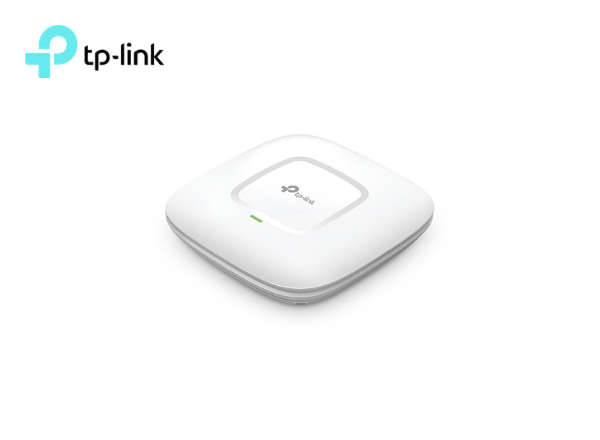

TP-Link 300Mbps Wireless N Ceiling Mount Access Point

Overview

  • Hardware wireless controller enable administrators to easily manage hundreds of CAPs
  • Support Power over Ethernet (802.af) for convenient and affordable installation
  • Simple mounting design for easy attachment to a wall or ceiling
  • Captive portal provides on convenient method of authentication for Wi-Fi guests
  • Enterprise class Wi-Fi security help to decrease network security threats
  • Multi-SSID divides multiple wireless networks for different user types
  • FAT/FIT mode switchable provides a range of network possibilities

Specifications

HARDWARE FEATURES

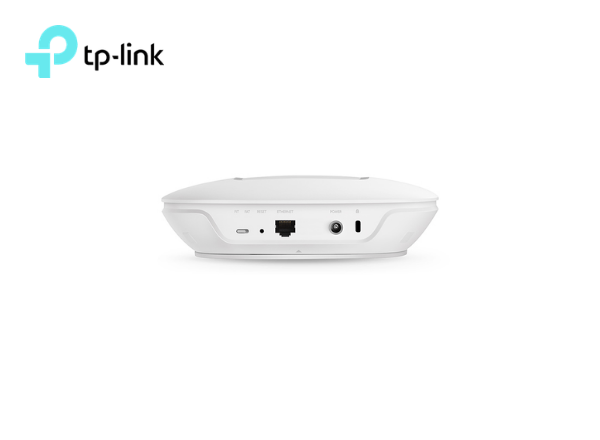

Interface Fast Ethernet (RJ-45) Port *1๏ผˆSupport IEEE802.3af PoE๏ผ‰
Physical Security Lock Kensington Lock Slot
Button Reset, FIT/FAT
Power Supply PoE or external 9VDC/0.6A power supply
Power Consumption 5W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna Type Internal 2* 3dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Transmission Power CE: <20dBm FCC: <26dBm
SOFTWARE FEATURE IN FAT MODE
Wireless Functions Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Reboot Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security
SOFTWARE FEATURES IN FIT MODE
Wireless Functions Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) WMM Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Load Balance
Wireless Security Captive Portal Authentication Access Control Mac Address Authentication Wireless Isolation Between Clients SSID to VLAN Mapping WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N Ceiling Mount Access Point CAP300 Power Adapter Mounting Kits, Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
