Description
Model: CS1734B

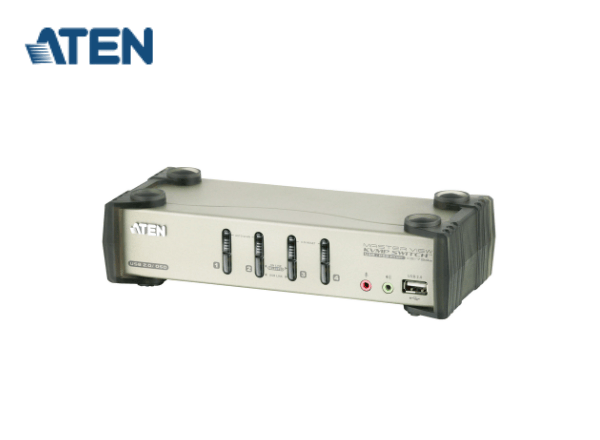

ATEN 4-Port PS/2-USB VGA/Audio KVMP™ Switch with OSD
- Superior video quality; 2048 x 1536; DDC2B

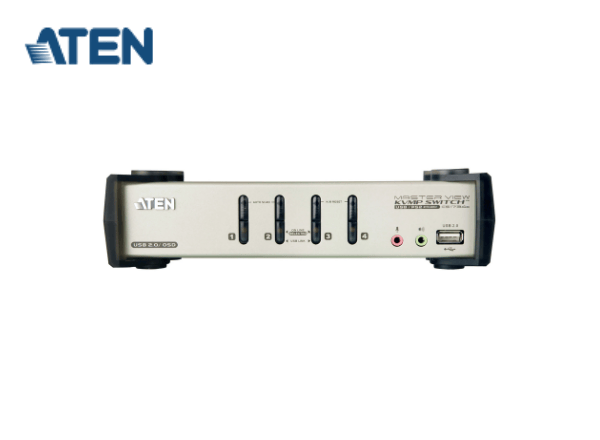

- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
- Supports computers with PS/2 or USB keyboard and mouse configurations
- Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
Overview

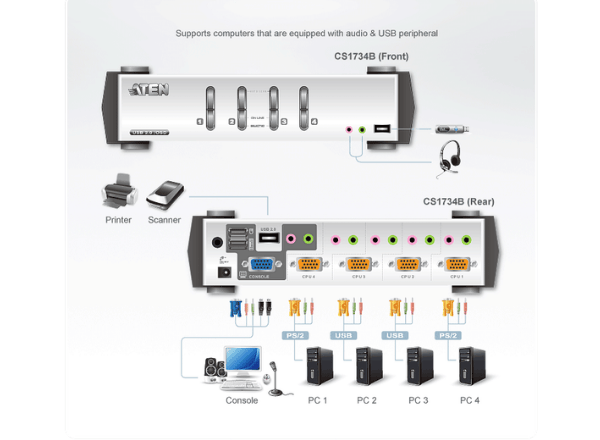

The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
Features
- 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface – supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled – full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access – ideal for IP phone users
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
- Multiplatform support – Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable
Specifications
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, OSD, Mouse |
| Connectors | |
| Console Ports | 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) |

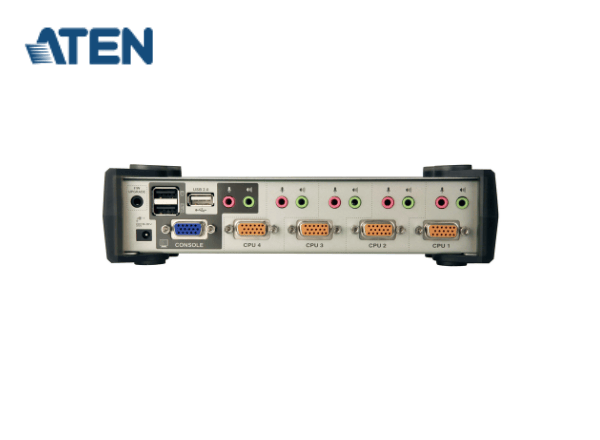

| KVM Ports | 4 x SPHD-15 Female (Yellow) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) |
| Firmware Upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (White) |
| Switches | |
| Selected | 4 x Pushbutton |
| LEDs | |
| Online / Selected | 4 (Orange) |
| USB Link | 4 (Green) |
| Emulation | |
| Keyboard / Mouse | PS/2; USB |
| Video | 2048 x 1536 @ 60Hz; DDC2B |
| Scan Interval | 1-255 Seconds (Default: 5 sec.) |
| Power Consumption | DC5V:1.02W:30BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.78 kg ( 1.72 lb ) |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
