$ 175


  • Internet Everywhere with 4G+ Speed - Provides WiFi 6 Mesh coverage through 4G+ CAT6 access
  • Superior WiFi 6 speeds up to 1.8 Gbps - 1201 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual band WiFi with WiFi 6 technology
  • Fully Gigabit Ethernet - 3x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed
  • TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports
  • 3G/4G Failover - Flexible access from Ethernet to 3G/4G to prevent data loss
13-08-2022 3:49 PM

Model: Deco X20-4G

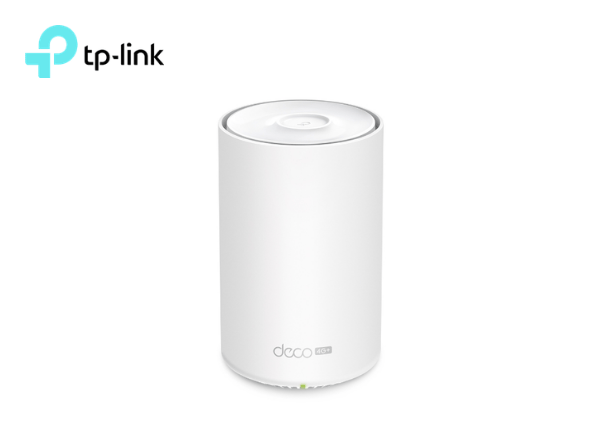

TP-Link 4G+ AX3000 Whole Home Mesh WiFi 6 Gateway

Overview

  • Internet Everywhere with 4G+ Speed - Provides WiFi 6 Mesh coverage through 4G+ CAT6 access
  • Superior WiFi 6 speeds up to 1.8 Gbps - 1201 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual band WiFi with WiFi 6 technology
  • Fully Gigabit Ethernet - 3x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed
  • TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports
  • 3G/4G Failover - Flexible access from Ethernet to 3G/4G to prevent data loss

Specifications

WIRELESS
Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2 LTE antennas, 2 Wi-Fi antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices
Working Modes 3G/4G, Router, Access Point
HARDWARE
Processor 1.5 GHz Quad-Core CPU
Ethernet Ports 3× Gigabit Ports Supports WAN/LAN auto-sensing
USB Support 12 V ⎓ 1.5 A
Buttons RESET Button

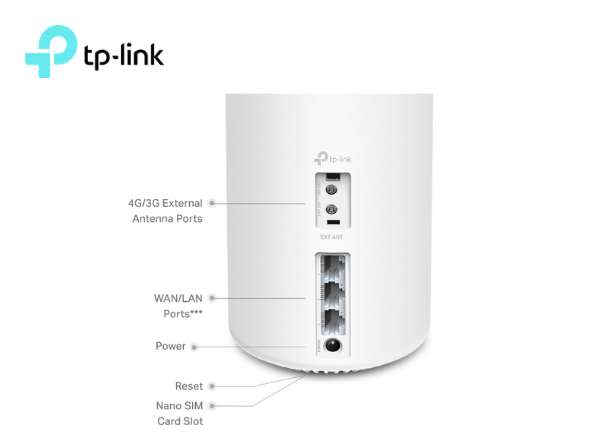

Ports and Connections 2 × 3G/4G External Antenna Ports Compatibility 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/80 0/700 MHz) TDD-LTE: B38/B40/B41(2600/2300/2500 MHz) 3G: DC-HSPA /HSPA/UMTS B1/B5/B8 (2100/850/900 MHz) Carrier Aggregation: B1 B3/B5/B7/B8/B20 B3 B1/B3/B5/B7/B8/B20/B28/B38/B40 B5 B1/B3/B5/B7/B40 B7 B1/B3/B5/B7/B8/B20/B28 B8 B1/B3/B7 B20 B1/B3/B7 B28 B3/B7/B40 B38 B38 B40 B40 B41 B41
SECURITY
WiFi Encryption WPA-Personal WPA2-Personal WPA3-Personal
Network Security SPI Firewall Access ControlHomeShield Security
Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4 IPv6
Service Kit HomeShield Learn More>
WAN Types Dynamic IP Static IP PPPoE L2TP PPTP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding Port Forwarding UPnP
IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP Address Reservation DHCP Client List Server
DDNS TP-Link
Management Deco App
OTHERS
Certification CE, RoHS
Package Contents 1-pack 1 Deco X20-4G unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide 2 SMB to SMA Adapters2-pack 1 Deco X20-4G unit 1 Deco X20 unit 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide 2 SMB to SMA Adapters3-pack 1 Deco X20-4G units 2 Deco X20 units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide 2 SMB to SMA Adapters
Box Dimensions (W X D X H) 4.13 × 4.13 × 6.57 in (105 × 105 × 167mm)
Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH
