$ 18


  • AC600 Dual Band WiFi – Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)
  • MU-MIMO Supported – Boost network thoughput and efficiency when working with a compatible MU-MIMO router

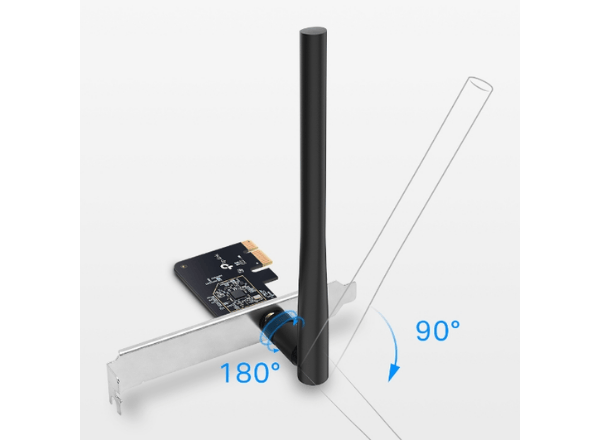

  • Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with powerful signal-boosting high-gain antenna
  • WPA3  Supported – Improve cybersecurity with more secure and individualized protection

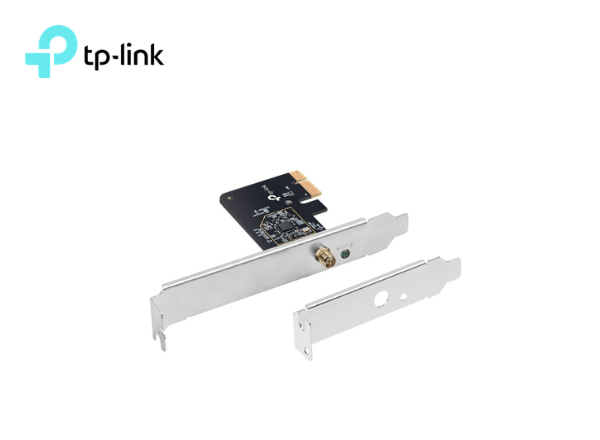

  • Low-Profile and Full-Height Brackets - Customized options give you the flexibility to find a bracket that perfectly fits your board design
13-08-2022 9:31 AM

Model: Archer T2E

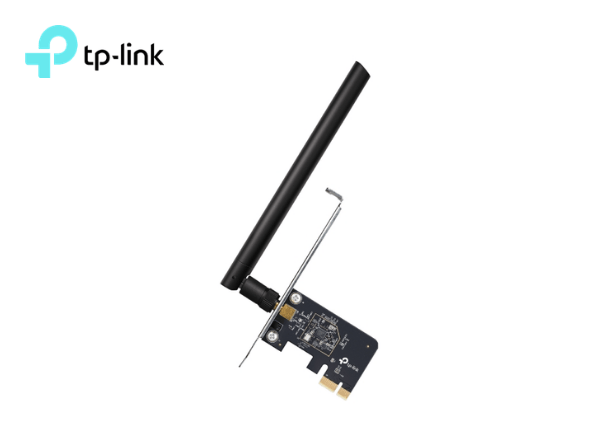

TP-Link AC600 Wireless Dual Band PCI Express Adapter

Overview

  • AC600 Dual Band WiFi – Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)
  • MU-MIMO Supported – Boost network thoughput and efficiency when working with a compatible MU-MIMO router
  • Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with powerful signal-boosting high-gain antenna
  • WPA3  Supported – Improve cybersecurity with more secure and individualized protection
  • Low-Profile and Full-Height Brackets - Customized options give you the flexibility to find a bracket that perfectly fits your board design

Specifications

HARDWARE FEATURES
Interface PCI Express
Dimensions 4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm)
Antenna 1 Detachable External Antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Signal Rate 5 GHz: 11ac: Up to 433 Mbps(dynamic) 11n: Up to 200 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 200 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
Reception Sensitivity 5GHz: 11ac HT80:-59.0dBm 11n HT40:-68.0dBm 11a 54Mbps:-73.0dBm 11a 6Mbps:-90.0dBm 2.4GHz: 11n HT40:-70dBm 11g 54Mbps:-75dBm 11b 11Mbps:-87dBm
Transmit Power 5GHz:18dBm(FCC)/23dBm(CE)(EIRP) 2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP)
Wireless Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification FCC, CE, RoHS
Package Contents AC600 Wireless Dual Band PCI Express Adapter Archer T2E Low-Profile Bracket Quick Installation Guide Resource CD
System Requirements Windows 10
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
