$ 23


  • High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
  • Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
  • Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
  • Parental Controls—Manages when and how connected devices can access the internet.
  • Guest Network—Provides separate access for guests while securing the host network.
  • Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
11-08-2022 2:41 PM

Model : Archer C24

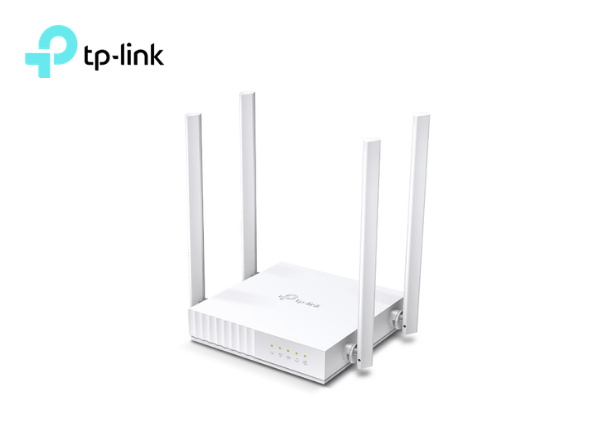

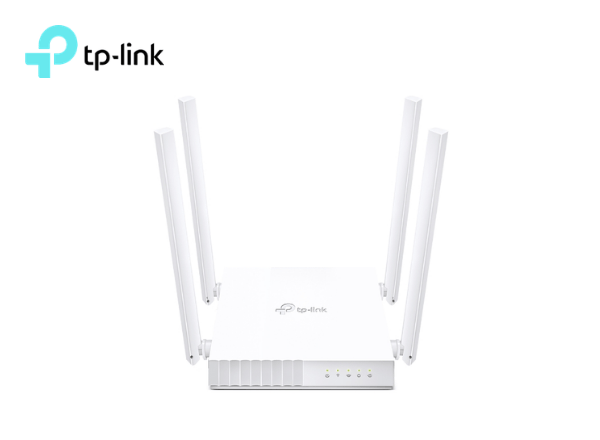

TP-Link AC750 Dual-Band Wi-Fi Router

Overview

  • High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
  • Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
  • Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
  • Parental Controls—Manages when and how connected devices can access the internet.
  • Guest Network—Provides separate access for guests while securing the host network.
  • Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
  • IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
  • Compact and Mountable—Designed to conserve space and complement any décor.

Specifications

WIRELESS
Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)
WiFi Range 2 Bedroom Houses
4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity Medium
Dual-Band Allocate devices to different bands for optimal performance
Working Modes Router Mode Access Point Mode Range Extender Mode
SECURITY
Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
WiFi Encryption WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor Single-Core CPU

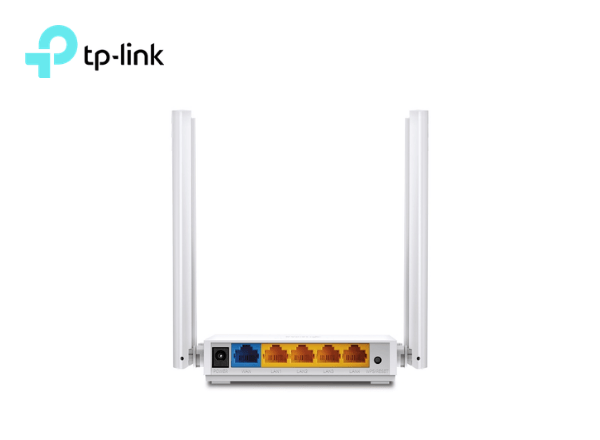

Ethernet Ports 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports
Buttons WPS Button Reset Button
Power 9 V ⎓ 0.6 A
SOFTWARE
Protocols IPv4 IPv6
Parental Controls URL Filtering Time Controls
WAN Types Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service QoS by Device
NAT Forwarding Virtual Server Port Forwarding Port Triggering DMZ UPnP
IPTV IGMP Proxy IGMP Snooping
DHCP Address Reservation DHCP Client List Server
DDNS NO-IP Comex DynDNS
Management Tether App Webpage Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE: <20dBm(2.4GHz) <23dBm(5GHz)
WiFi Reception Sensitivity 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm
PHYSICAL
Dimensions (W×D×H) 4.5 x 4.2 x 1.0 in (115 x 106.7 x 24.3 mm)
Package Contents Wi-Fi Router Archer C24 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
