$ 215


  • Faster Connections: Wi-Fi 6 speeds up to 1,800 Mbpsโ€”1,201ย Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
  • Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.
  • Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.
  • Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
  • One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
  • Total Security: WPA3 encryption and TP-Link HomeCareTMย provide personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS) to ensure a safer online experience.
13-08-2022 3:51 PM

Model: Deco X20(3-pack)

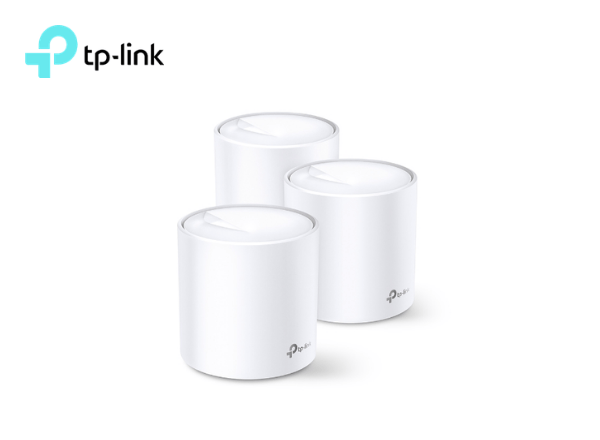

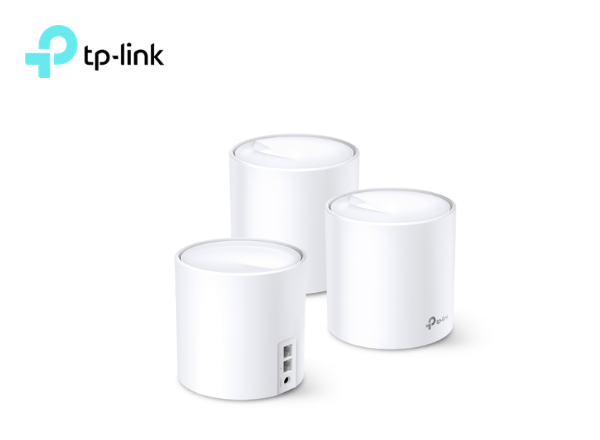

TP-Link AX1800 Whole Home Mesh Wi-Fi 6 System

Overview

  • Faster Connections: Wi-Fi 6 speeds up to 1,800 Mbpsโ€”1,201ย Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
  • Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.
  • Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.
  • Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
  • One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
  • Total Security: WPA3 encryption and TP-Link HomeCareTMย provide personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS) to ensure a safer online experience.
  • Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step.

Specifications

HARDWARE FEATURES
Processor Qualcomm 1 GHz Quad-core CPU
Interface 2 LAN/WAN Gigabit Ethernet Ports
Button 1 Reset button on the underside
Dimensions ฮฆ4.33 in. ร— 4.49 in. (ฮฆ110 mm ร— 114 mm)
Antenna 4 internal antennas per Deco unit
WIRELESS FEATURES
Wireless Standards IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2.4 GHz
Frequency 5 GHz 2.4 GHz
Signal Rate 1201 Mbps (5 GHz) 574 Mbps (2.4 GHz)
Transmit Power FCC: <30 dBm CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz)
Wireless Security WPA-PSK WPA2-PSK WPA3
Advanced Functions โ— Router/ Access Point Mode โ— Optional Ethernet Backhaul โ— TP-Link Mesh Technology: MU-MIMO OFDMA 1024-QAM BSS Color Auto Path Selection Self-Healing AP Steering Band Steering Beamforming
SOFTWARE FEATURES
Quality of Service WMM
IPv6 Support
WAN Type Dynamic IP/Static IP/PPPoE
Management Local Management, Remote Management
DHCP Server, Client
Port Forwarding Support
Access Control Blacklist
Firewall Security SPI Firewall
Protocols Supports IPv4 and IPv6
Advanced Features Homecare: Antivirus Parental Controls Quality of Service
Advanced Functions Speedtest Monthly Usage Reports Auto FW Update Expand Coverage by Adding more decos
Guest Network 2.4 GHz guest network * 1 5 GHz guest network * 1
Beamforming Support
APP Easy setup by Deco App
OTHERS
Certification CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

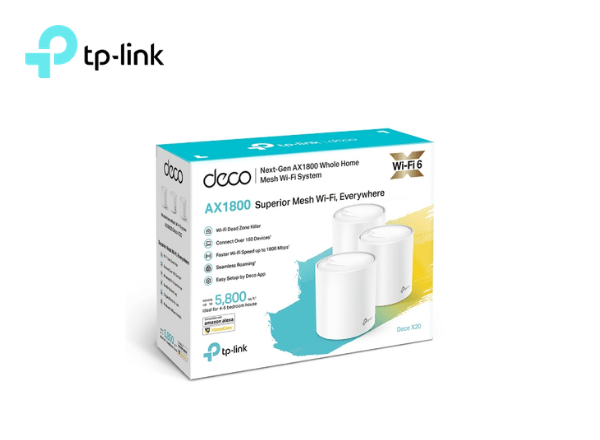

Package Contents โ— Deco X20 (3-pack): 3 Deco X20 units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide
Smartphone/Tablet Requirements iOS 9.0 or later Android 4.4 or later
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
