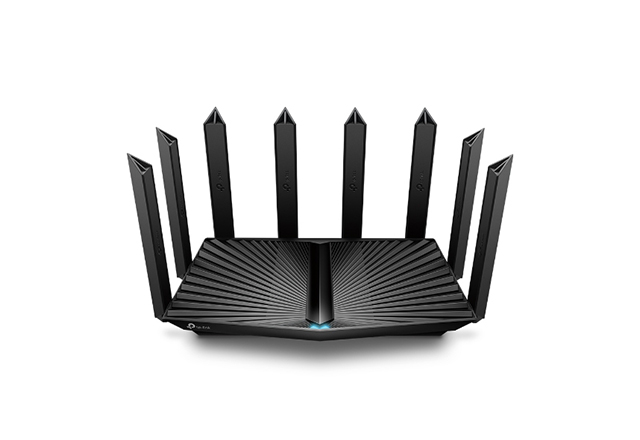

TP-Link Archer AX90 AX6600 Tri-Band Wi-Fi 6 Router | T199

Faster AX6600 Tri-Band Wi-Fi - 4804Mbps (5 GHz) + 1201Mbps (5 GHz) + 574Mbps (2.4 GHz).†
Ultra Connectivity - 1×2.5Gbps WAN/LAN port + 1×1Gbps WAN/LAN port + 3×Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
Maximized Coverage - Eight high-gain antennas equipped with Beamforming ensure vast coverage.
More Devices with Less Lag - OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.‡
TP-Link HomeShield -Enhanced security defends against the latest cyber threats.*
Powerful CPU - 1.5GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.

01-08-2023 9:59 AM

TP-Link AX6600 Tri-Band Wi-Fi 6 Router

Faster AX6600 Tri-Band Wi-Fi - 4804Mbps (5 GHz) + 1201Mbps (5 GHz) + 574Mbps (2.4 GHz).†
Ultra Connectivity - 1×2.5Gbps WAN/LAN port + 1×1Gbps WAN/LAN port + 3×Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
Maximized Coverage - Eight high-gain antennas equipped with Beamforming ensure vast coverage.
More Devices with Less Lag - OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.‡
TP-Link HomeShield -Enhanced security defends against the latest cyber threats.*
Powerful CPU - 1.5GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
Refined Security—WPA3 reinforces Wi-Fi encryption for improved security.**

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX6600 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity	Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode

SECURITY
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz-1 Guest Network 1× 5 GHz-2 Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP
VPN Client	• Open VPN Client • PPTP VPN Client • L2TP VPN Client
WiFi Encryption	WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)

HARDWARE
Processor	1.5 GHz Quad-Core CPU
Ethernet Ports	1× 2.5 Gbps WAN/LAN Port 1× 1 Gbps WAN/LAN Port 3× 1 Gbps LAN Ports
USB Support	1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power	12 V ⎓ 3.3 A

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More>
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP Virtual Server
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity	2.4GHz: 11n HT20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS11:-62dBm 5GHz-1: 11ac VHT20 MCS0:-92dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 5GHz-2: 11ac VHT20 MCS0:-95dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 11ax HE160 MCS11:-53dBm

PHYSICAL
Dimensions (W×D×H)	12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm)
Package Contents	Wi-Fi Router Archer AX90 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
