Description
Model: EAP690E HD

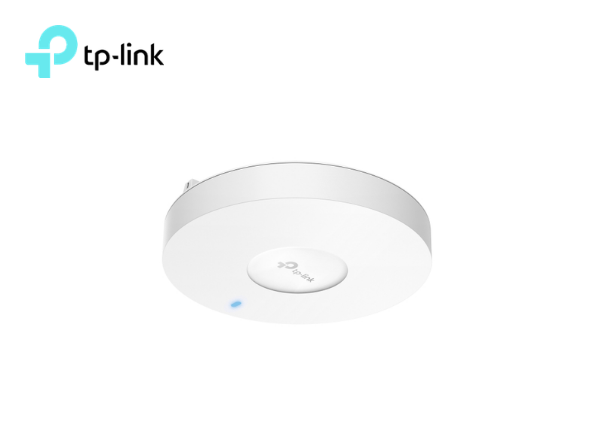

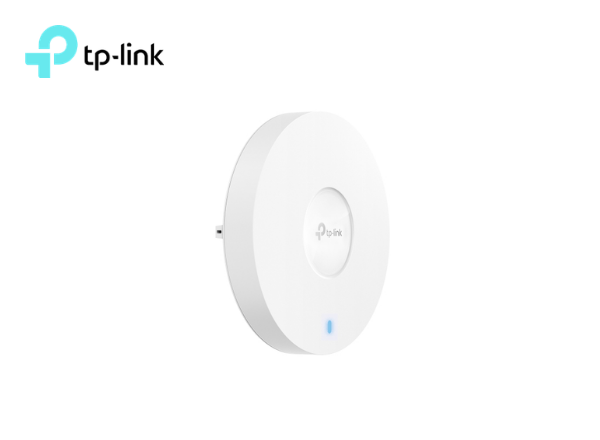

TP-Link AXE11000 Ceiling Mount Quad-Band WiFi 6E Access Point
Overview
- Ultra-Fast Wi-Fi 6E Speeds: Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps WiFi speeds, bringing more bandwidth, faster speeds, near-zero latency and eliminates interference.
- High-Density Connectivity up to 2000 Clients: Improves WiFi performance in dense environments with OFDMA, MU-MIMO, BSS Coloring, and powerful chipset.
- 10G Wired Connection: Boosts overall throughput with a 10 Gbps Ethernet port supported by an 802.3bt PoE++ power supply.
- 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.
- Advanced Wireless Tech: Supports Mesh Wi-Fi, Seamless Roaming§, WPA3, Band Steering, Load Balancing, and Airtime Fairness technologies.
- Smart Antennas: Professional antennas with high-power amplifiers provide strong wireless coverage in high-density environments.
- Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and the Omada app offer ultra convenience and easy management.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 10Gbps Ethernet Port (supports IEEE802.3bt PoE++) |
| Button | Reset |
| Power Supply | 802.3bt PoE or 12V/4.5A DC |
| Power Consumption | Supports Smart Power Consumption Management US: 50.5 W (802.3bt, full functionality); 44.2 W (12/4.5A, full functionality); 25.5 W (802.3at, 5GHz-2 and 6 GHz off); 12.95 W (802.3af, radio off, only main chip and LAN working) |
| Dimensions ( W x D x H ) | 11.0 × 11.0 × 2.3 in (280 × 280 × 59.1 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 4 × 4.0 dBi • 5 GHz_1: 4 × 5.0 dBi (Smart Antennas) • 5 GHz_2: 4 × 5.5 dBi (Smart Antennas) • 6 GHz: 4 × 5.0 dBi |
| Bluetooth | Yes |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 200㎡(2150ft²)§ |
| Wireless Client Capacity | 2,000+** |
| Concurrent Clients | 2,040+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | • 2.4 GHz • 5 GHz • 6 GHz |
| Signal Rate | • 6 GHz:4804 Mbps • 5 GHz_1: 2402 Mbps • 5 GHz_2: 2402 Mbps • 2.4 GHz: 1148 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz_1, EIRP) <30 dBm(5 GHz_2, EIRP) <23 dBm(6 GHz, EIRP) • FCC: |
| Multi-SSID | 32(8 on each band) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP690E HD • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
