Description
MODEL: UC3022
ATEN CAMLIVE™ PRO (Dual HDMI to USB-C UVC Video Capture)
- Mix and capture two non-HDCP 4K live videos at 1080P UVC format on PC or mobile device via USB 3.x interface with seamless transition
- Intuitive Android / iOS App control – set up your camera gear and direct your show from anywhere
- Supports real-time HDMI program video preview
- Easily identifiable chroma keys – can make the video look like you are anywhere by changing the background
Features
The CAMLIVE™ PRO is designed to easily capture and mix the two connected 4K video sources in FHD format for livestream purpose with outstanding video effects and remarkable image quality. It supports easy switch between multiple connected sources and combine them for a rich information delivery in steaming. In addition, it automatically converts the sources to cleanlooking USB video format in 720P or 1080P, which is sent to your laptop/smartphone via USB.The CAMLIVE™ PRO provides an intuitive ATEN OnAir Lite App. This App places everything you need to customize your video stream right at your fingertips. You can make it look like you are anywhere by changing the background for eye-popping effects. With just the CAMLIVE™ PRO, companion app, and your laptop / smartphone, you have all the devices you need to present engaging livestreaming that will rival the most advanced streamers on social media and provides an easy-to-use solution.
- Mix and capture two non-HDCP 4K live videos at 1080P UVC format on PC or mobile device via USB 3.x interface with seamless transition
- Intuitive Android / iOS App control – set up your camera gear and direct your show from anywhere
- Supports real-time HDMI program video preview
- Easily identifiable chroma keys – can make the video look like you are anywhere by changing the background
- Provides audio mixer with additional dual analog audio inputs
- Supports protected video switching mode for regular event usage
- Compatible with USB & Thunderbolt 3 (USB-C) specification specification
Specifications

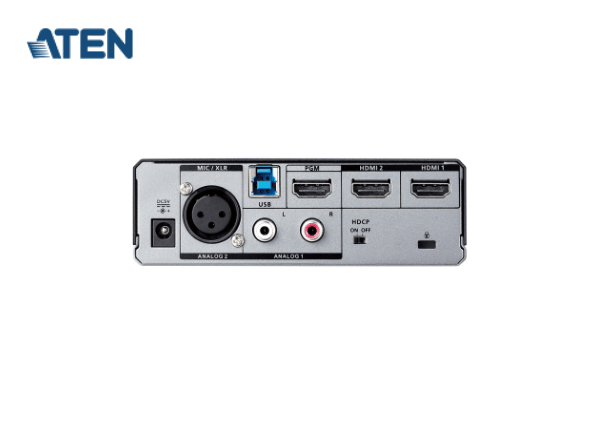

| Connectors | |
| Video In | 2 x HDMI Type A Female (Black) |
| USB Port | USB 3.2 Gen1 Type-B Male (Blue)
(USB-B to USB-C and USB-B to USB-A cable package included) |
| Video Output | 1 x HDMI Type A Female (PGM Video, Black) |
| Audio Inputs | 1x balanced analog audio via XLR connectors 1x unbalanced audio via RCA connectors. |
| Video Resolution | Video input: 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 , HDMI unencrypted PGM video out: |
| Audio Sampling | 16-bit PCM audio, 44.1KHz and 48KHz |
| Output | Uncompressed 1080p60 & 720p60 UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection) |
| Environmental | |
| Operating Temperature | 0 – 40 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Minimum Hardware Requirements | PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more One USB-C interface or USB-A interface Smartphone: *For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/ |
| Connection | Bluetooth Low Energy(BLE) technology |
| OS Support | Windows 10 and above * Mac OS X 10.13 and above Android 5.x and above or iOS 10.1 and above , with Bluetooth 4.2 or higher supporting Bluetooth Low Energy (BLE) *Window 7 requires driver installation |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.68 kg ( 1.5 lb ) |
| Dimensions (L x W x H) | 13.00 x 15.18 x 4.25 cm (5.12 x 5.98 x 1.67 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
