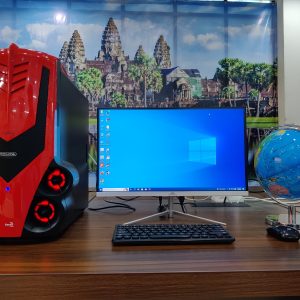

Diamond Home Pro1 Desktop – DH3550-P250

$ 320

$ 250

Intel Core i5 3550, 6MB Cache 4 Logical Processor
Memory: 8GB DDR3 1600
Storage: 256GB SSD
Graphics: Nvidia Graphic Card 1GB (Upgradable)
- Onboard 4GB with Intel HD graphic

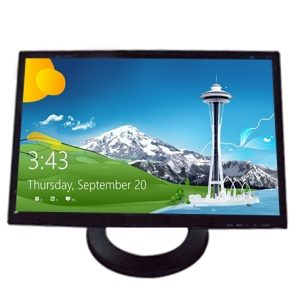

Monitor: Diamond 22 inch FHD flat (no frame) 1920x1080
OS: Windows 10 Pro 22H2 (2023)
Mouse, Keyboard, Mousepad

14-07-2023 7:32 AM

CPU: Intel Core i5 3550, 6MB Cache 4 Logical Processor - Advanced V8 + 2 Power Phase Design - Supports Intel^® Turbo Boost 2.0 Technology - Supports Intel^® K-Series unlocked CPU - Supports Hyper-Threading Technology
Chipset

- Intel^® P67
Memory: 8GB DDR3 1600 - 4 x DDR3 DIMM slots - Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel^® Extreme Memory Profile (XMP)
Storage: 256GB SSD
BIOS

- 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
Graphics: Nvidia Graphic Card 1GB (Upgradable)
- Onboard 4GB with Intel HD graphic
Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support
LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Slots

- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode) - 3 x PCI Express 2.0 x1 slots - 3 x PCI slots
Connector

- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel^® Rapid Storage), NCQ, AHCI and Hot Plug functions - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5 and Intel^® Rapid Storage), NCQ, AHCI and Hot Plug functions (SATA3_1 connector is shared with eSATA3 port) - 1 x Floppy connector - 1 x IR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Power LED header - CPU/Chassis/Power FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 3 x USB 2.0 headers (support 6 USB 2.0 ports) - 1 x Dr. Debug with LED*
Rear Panel I/O

I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Coaxial SPDIF Out Port - 1 x Optical SPDIF Out Port - 6 x USB 2.0 Ports - 1 x eSATA3 Connector - 2 x USB 3.1 Gen1 Ports (Etron EJ168A) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Switch with LED - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Unique Feature

- ASRock Extreme Tuning Utility (AXTU) - Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock Dehumidifier Function - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) - Combo Cooler Option (C.C.O.) - Good Night LED
Smart Switch

- 1 x Power Switch with LED - 1 x Reset Switch with LED - 1 x Clear CMOS Switch with LED
Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
Accessories

- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables (optional)
Hardware Monitor

- CPU Temperature Sensing - Chassis Temperature Sensing - CPU, Chassis, Power Fan Tachometer - CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU or MB Temperature) - CPU, Chassis Fan multi-speed control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - All Solid Capacitor design (100% Japan made high quality conductive polymer capacitors)
OS

- Microsoft^® Windows^® 10, 8/8 64bit, 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications

- FCC, CE - ErP/EuP Ready (ErP/EuP ready power supply is required)
