Description
Model: VE809
ATEN HDMI Wireless Extender (1080p@30m)
- Wirelessly extend an HDMI display up to 30 m from the HDMI source*
- Setup two HDTVs and view HD content on two HDTVs simultaneously*
- Wireless HD in Full 1080p
- Based on WHDI™ Technology – Low latency < 1ms* & uncompressed full HD 1080p video wireless transmission
- Secure data transmission – AES 128-bit encryption
Overview

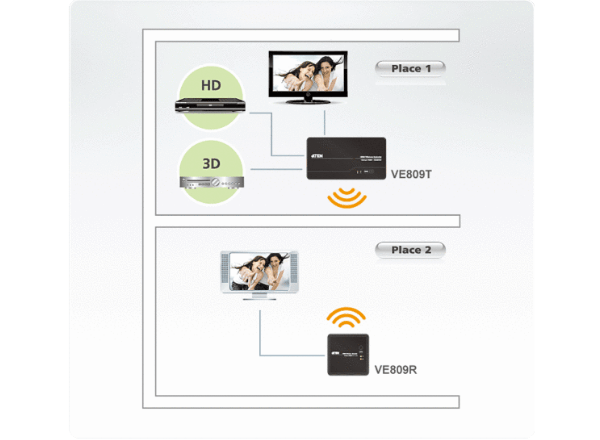

The VE809 HDMI Wireless Extender extends your HDMI display up to 30 m* from the HDMI source using wireless technology. Easily connect two HDMI devices to an HDTV wirelessly with crystal clear image quality capable of streaming Full 1080p with 5.1 channel digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices from the receiver side, remotely; and allows you to watch a local and wirelessly connected HDTV- simultaneously. The VE809 consists of a wireless audio/ video transmitter and receiver. Consolidate your HDMI electronics and use the VE809 as a wireless 2-port HDMI switch to connect remote devices such as Blu-ray players and HD Cable boxes to design your own custom wireless entertainment space.
Features
- Wirelessly extend an HDMI display up to 30 m from the HDMI source*
- Setup two HDTVs and view HD content on two HDTVs simultaneously*
- Connect and transmit wireless video content from your Bluray DVD player, HD Cable box or other HDMI device wirelessly
- Wireless 3D Supported
- Wireless HD in Full 1080p and 5.1 channel digital audio
- Superior video quality – 480p, 720p, 1080i and 1080p
- Keep home theater electronic devices neatly out-of-sight
- Built-in IR receiver allows control of source devices from the remote side
- No software or driver installation needed
- HDCP compatible
- Based on WHDI™ Technology – Low latency ‹1ms
Specifications
Function | VE809R | VE809T |
Video Input | ||
Interfaces | N/A | 2 x HDMI Type A Female (Black) |
Impedance | N/A | 100 Ώ |
Max. Distance | N/A | 1.8 m |
Video Output | ||
Interfaces | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
Impedance | 100 Ώ | 100 Ώ |
Video | ||
Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | 6.75 Gbps (2.25 Gbps Per Lane) |
Max. Pixel Clock | 225 MHz | 225 MHz |
Compliance | HDMI (3D) HDCP Compatible |
HDMI (3D) HDCP Compatible |
Max. Resolutions / Distance | Up to 1080p@30m | Up to 1080p@30m |
Audio | ||
Input | N/A | 2 x HDMI Type A Female (Black) |
Output | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
Control | ||
IR | 1 x 2.5mm Mini Stereo Jack Female (Black) | 1 x 2.5mm Mini Stereo Jack Female (Black) |
Connectors | ||
Power | 1 x DC Jack (Mini USB) | 1 x DC Jack |
Power Consumption | DC5V:7.84W:37 | DC5V:6.58W:31 |
Environmental | ||
Operating Temperature | 0 – 40°C | 0 – 40°C |
Storage Temperature | -20 – 60°C | -20 – 60°C |
Humidity | 0 – 80% RH, Non-Condensing | 0 – 80% RH, Non-Condensing |
Physical Properties | ||
Housing | Plastic | Plastic |
Weight | 0.33 kg ( 0.73 lb ) | TBD |
Dimensions (L x W x H) | 18.20 x 9.65 x 3.15 cm (7.17 x 3.8 x 1.24 in.) |
TBD |
Carton Lot | 5 pcs | 5 pcs |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
