Description

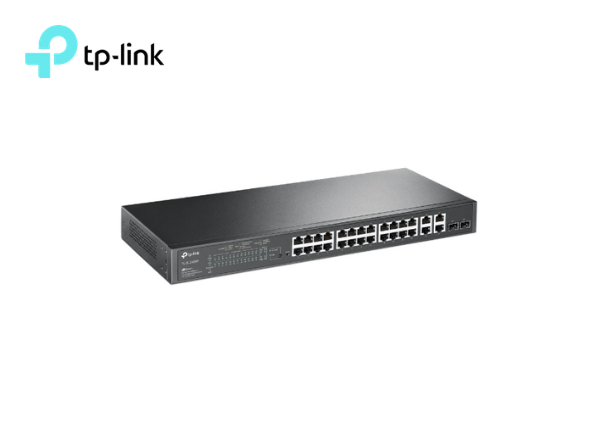

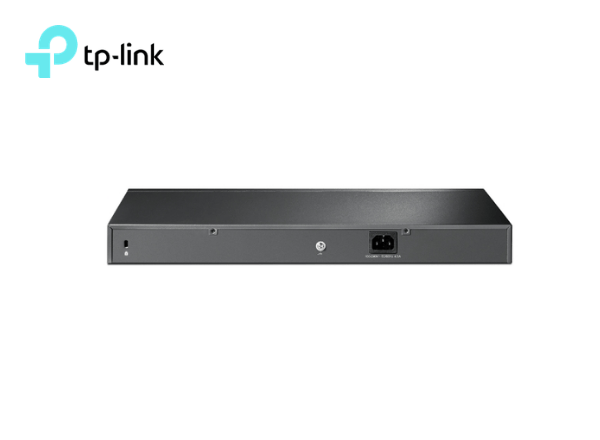

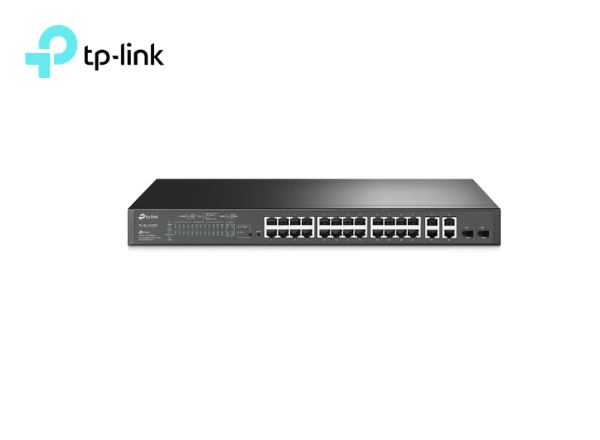

Model: TL-SL2428P
TP-Link JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+
Overview
- Features 24 PoE ports, with total PoE power budget of 250 W* and useful PoE power management features
- Integrated security strategy including 802.1Q VLAN, Port Security, and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Dual Firmware Image improves the reliability and uptime of your network
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
Interface | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo Gigabit SFP Slots |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
Fan Quantity | 2 |
Physical Security Lock | Yes |
PoE Budget | 250 W |
Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 18.8 W (220 V / 50 Hz with no PD connected) 286.7 W (220 V / 50 Hz with 250 W PD connected) |
Max Heat Dissipation | 64.1 BTU/h (with no PD connected) 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 12.8 Gbps |
Packet Forwarding Rate | 9.5 Mpps |
MAC Address Table | 8K |
Jumbo Frame | 9216 Bytes |
SOFTWARE FEATURES | |
---|---|
Quality of Service | โข 802.1p CoS/ DSCP priority โข 8 priority queues โข Priority Schedule Mode – SP (Strict Priority) – WRR (Weighted Round Robin) โข Queue Weight Config โข Bandwidth Control – Port/Flow based Rating Limit โข Smoother Performance โข Actions for flows – Mirror(to supported interface) – Redirect(to supported interface) – Rate Limit – QoS Remark โข Storm Control – Multiple Control Modes(kbps/ratio/pps) – Broadcast/Multicast/Unknown-Unicast Control |
L2 Features | โข Link Aggregation – static link aggregation – Up to 8 aggregation groups and up to 8 ports per group – 802.3ad LACP โข Spanning Tree Protocol – 802.1D STP – 802.1w RSTP – 802.1s MSTP – STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect โข Loopback Detection โข Flow Control – 802.3x Flow Control โข Mirroring – Port Mirroring – One-to-One – Many-to-One – Flow-Based – Ingress/Egress/Both – CPU Mirroring โข Device Link Detect Protocol(DLDP) |
L2 Multicast | โข 512 IPv4,IPv6 shared multicast groups โข IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication – Static Group Config โข MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config โข Multicast VLAN Registration โข Multicast Filtering |
IPv6 Support | โข IPv6 Dual IPv4/IPv6 โข Multicast Listener Discovery(MLD) Snooping โข IPv6 neighbor discovery (ND) โข Path maximum transmission unit (MTU) discovery โข Internet Control Message Protocol (ICMP) version 6 โข TCPv6/UDPv6 โข IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet(v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
VLAN | โข VLAN Group – Max. 4K VLAN Groups โข 802.1Q tag VLAN โข MAC VLAN: 12 Entries โข Protocol VLAN โข GVRP โข Voice VLAN |
Access Control List | โข Support up to 230 entries โข Time-Range – Time Slice – Week Time-Range – Absolute Time-Range – Holiday โข Time-based ACL โข MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type โข IP ACL – Source IP – Destination IP – IP Protocol – TCP Flag – TCP/UDP Source Port – TCP/UDP Destination Port – DSCP/IP TOS โข IPv6 ACL โข Combined ACL โข Rule Operation – Permit/Deny โข Policy Action – Mirror – Rate Limit – Redirect – QoS Remark โข ACL Rules Binding – Port Binding – VLAN Binding |
Security | โข AAA โข 802.1X – Port based authentication – MAC(Host) based authentication – Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP – MAB – Guest VLAN – Support Radius authentication and accountability โข IP/IPv6-MAC Binding – 512 Binding Entries – DHCP Snooping – DHCPv6 Snooping – ARP Inspection – ND Detection โข IP Source Gurad – 253 Entries – Source IP+Source MAC โข IPv6 Source Gurad – 183 Entries – Source IPv6 Address+Source MAC โข DoS Defend โข Static/Dynamic/Permanent Port Security – Up to 64 MAC addresses per port โข Broadcast/Multicast/Unicast Storm Control – kbps/ratio/pps control mode โข Port Isolation โข Secure web management through HTTPS with SSLv3/TLS1.0 โข Secure Command Line Interface (CLI) management with SSHv1/SSHv2 โข IP/Port/MAC based access control |
Management | โข Web-based GUI and CLI management โข SNMPv1/v2c/v3 โข SNMP Trap/Inform โข RMON (1,2,3,9 groups) โข SDM Template โข DHCP/BOOTP Client โข Dual Image, Dual Configuration โข CPU Monitoring โข Cable Diagnostics โข EEE โข System Log โข 802.1ab LLDP/ LLDP-MED |
MIBs | โข MIB II (RFC1213) โข Interface MIB (RFC2233) โข Ethernet Interface MIB (RFC1643) โข Bridge MIB (RFC1493) โข P/Q-Bridge MIB (RFC2674) โข RMON MIB (RFC2819) โข RMON2 MIB (RFC2021) โข Radius Accounting Client MIB (RFC2620) โข Radius Authentication Client MIB (RFC2618) โข Remote Ping, Traceroute MIB (RFC2925) โข Support TP-Link private MIBs |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-SL2428P Power Cord Installation Guide Rackmount Kit Rubber Feet |
System Requirements | Microsoftยฎ Windowsยฎ 98SE, NT, 2000, XP, Vistaโข or Windows 7/8, MACยฎ OS, NetWareยฎ, UNIXยฎ or Linux. |
Environment | Operating Temperature: 0โ~50โ (32โ~122โ); Storage Temperature: -40โ~70โ (-40โ~158โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
