Description
Model: TL-SG2210P

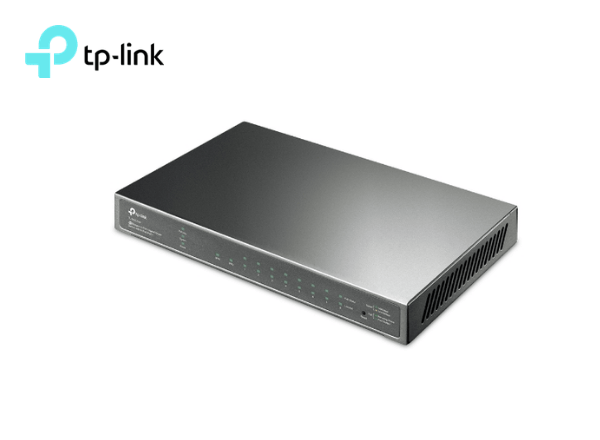

TP-Link JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
Overview
- 61 W PoE Budget: 8รย 802.3af/at-compliant PoE+ ports with a total power supply of 61ย W*.
- Full Gigabit Ports: 8ร gigabit PoE+ ports andย 2ร gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimized Voice and Video Applications: L2/L3/L4 QoS andย IGMP snooping.
- Versatile Management:ย WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
Interface | 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX) |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
Fan Quantity | Fanless |
Power Supply | 100~240VAC, 50/60Hz External Power Adapter(Output: 54VDC/1.3A) |
Power Consumption | โข 10.3W (without POE device connected) โข 76.5W (with 61W POE devices connected) |
PoE Ports (RJ45) | โข Standard: 802.3af/at compliant โข PoE Ports: 8 Ports โข Power Supply: 61 W* |
Dimensions ( W x D x H ) | 8.2 x 4.9 x 1.0 in. (209 x 126 x 26mm) |
Mounting | Desktop / Wall-Mounting |
Max Power Consumption | โข V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected) โข V4: 74.4 W (220 V/50 Hz) (with 61 W PD connected) โข V5: 77.8 W (110 V/60 Hz) (with 61 W PD connected) |
Max Heat Dissipation | โข V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected) โข V4: 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected) โข V5: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 20 Gbps |
Bandwidth/Backplane | 20 Gbps |
Packet Forwarding Rate | 14.88 Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | โข 802.1p CoS/DSCP priority โข 8 priority queues โข Priority Schedule Mode – SP (Strict Priority) – WRR (Weighted Round Robin) โข Queue Weight Config โข Bandwidth Control – Port/Flow based Rating Limit โข Smoother Performance โข Storm Control – Multiple Control Modes(kbps/ratio) – Broadcast/Multicast/Unknown-Unicast Control |
L2 and L2+ Features | โข 16 IP Interfaces – Support IPv4/IPv6 Interface โข Static Routing – 32 IPv4/IPv6 Static Routes โข DHCP Server โข DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay โข DHCP L2 Relay โข Static ARP โข Proxy ARP โข Gratuitous ARP โข Link Aggregation – Static link aggregation – 802.3ad LACP – Up to 8 aggregation groups and up to 8 ports per group โข Spanning Tree Protocol – 802.1D STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter/Protect, Root Protect โข Loopback Detection โข Flow Control – 802.3x Flow Control โข Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Flow-Based – Ingress/Egress/Both โข Device Link Detect Protocol (DLDP) โข 802.1ab LLDP/ LLDP-MED |
VLAN | โข VLAN Group – Max. 4K VLAN Groups โข 802.1Q tag VLAN โข MAC VLAN โข Protocol VLAN โข GVRP โข Voice VLAN |
Access Control List | โข Support up to 230 entries โข Time-Range – Time Slice – Week Time-Range – Absolute Time-Range – Holiday โข Time-based ACL โข MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type โข IP ACL – Source IP – Destination IP – IP Protocol – TCP Flag – TCP/UDP Source Port – TCP/UDP Destination Port – DSCP/IP TOS โข IPv6 ACL โข Combined ACL โข Rule Operation – Permit/Deny โข Policy Action – Mirror – Rate Limit – Redirect – QoS Remark โข ACL Rules Binding – Port Binding – VLAN Binding โข Actions for flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
Security | โข AAA โข 802.1X – Port based authentication – MAC (Host) based authentication – Authentication Method includes PAP/EAP-MD5 – MAB – Guest VLAN – Support Radius authentication and accountability โข IP/IPv6-MAC Binding – 512 Binding Entries – DHCP Snooping – DHCPv6 Snooping – ARP Inspection – ND Detection โข IP Source Guard – 253 Entries – Source IP+Source MAC โข IPv6 Source Guard – 183 Entries – Source IPv6 Address+Source MAC โข DoS Defend โข Static/Dynamic/Permanent Port Security – Up to 64 MAC addresses per port โข Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode โข Port Isolation โข Secure web management through HTTPS with SSLv3/TLS 1.2 โข Secure Command Line Interface (CLI) management with SSHv1/SSHv2 โข IP/Port/MAC based access control |
IPv6 | โข IPv6 Static Routing and ACL โข IPv6 Dual IPv4/IPv6 โข IPv6 Interface โข Multicast Listener Discovery (MLD) Snooping โข IPv6 neighbor discovery (ND) โข Path maximum transmission unit (MTU) discovery โข Internet Control Message Protocol (ICMP) version 6 โข TCPv6/UDPv6 โข IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet(v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
Management | โข Web-based GUI โข Command Line Interface (CLI) through telnet โข SNMPv1/v2c/v3 โข SNMP Trap/Inform โข RMON (1,2,3,9 groups) โข SDM Template โข DHCP/BOOTP Client โข Dual Image, Dual Configuration โข CPU Monitoring โข Cable Diagnostics โข EEE โข SNTP โข System Log |
Advanced Features | โข Automatic Device Discovery โข Batch Configuration โข Batch Firmware Upgrading โข Intelligent Network Monitoring โข Abnormal Event Warnings โข Unified Configuration โข Reboot Schedule |
MIBs | โข MIB II (RFC1213) โข Bridge MIB (RFC1493) โข P/Q-Bridge MIB (RFC2674) โข Radius Accounting Client MIB (RFC2620) โข Radius Authentication Client MIB (RFC2618) โข Remote Ping, Traceroute MIB (RFC2925) โข Support TP-Link private MIBs โข RMON MIB(RFC1757, rmon 1,2,3,9) |
MANAGEMENT | |
---|---|
Omada App | Yes, through โข Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) โข OC300 โข OC200 โข Omada Software Controller |
Centralized Management | โข Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) โข Omada Hardware Controller OC300 โข Omada Hardware Controller OC200 โข Omada Software Controller |
Cloud Access | Yes, through โข Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) โข OC300 โข OC200 โข Omada Software Controller |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
Management Features | โข Web-based GUI โข Command Line Interface (CLI) through telnet โข SNMPv1/v2c/v3 โข SNMP Trap/Inform โข RMON (1,2,3,9 groups) โข SDM Template โข DHCP/BOOTP Client โข Dual Image, Dual Configuration โข CPU Monitoring โข Cable Diagnostics โข EEE โข SNTP โข System Log |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-SG2210P Power Adapter Installation Guide Rubber Feet |
Environment | Operating Temperature: 0โ~40โ (32โ~104โ); Storage Temperature: -40โ~70โ (-40โ~158โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
