Description
Model: VE1812T

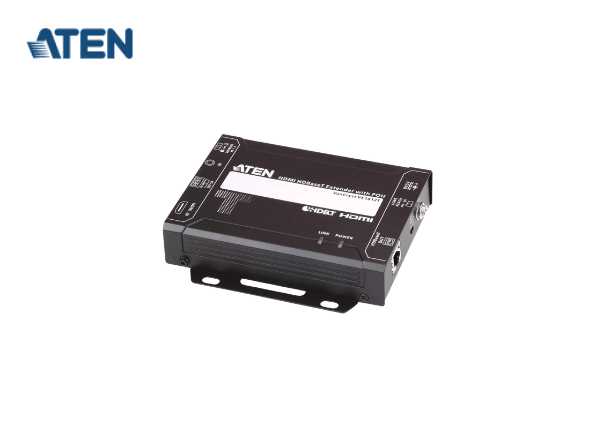

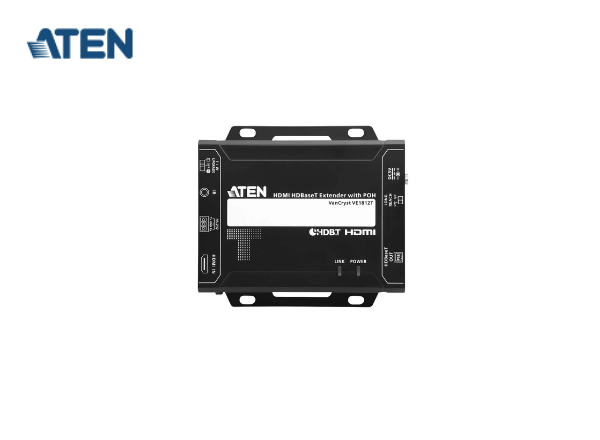

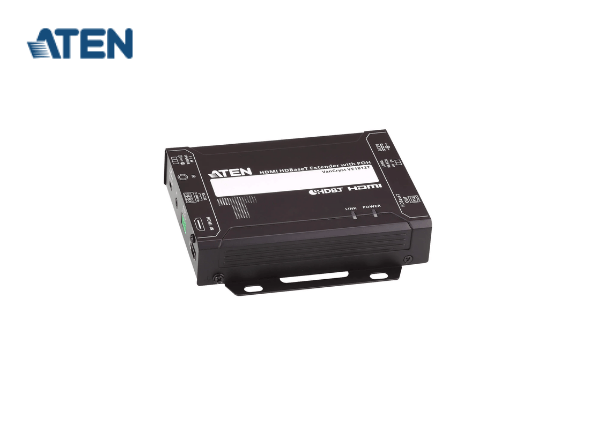

ATENย HDMI HDBaseT Transmitter with PoH (4K@100m) (HDBaseT Class A) (PoH PSE)
- HDBaseT Connectivity โ extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
- Supports HDBaseT Long Reach Mode โ Up to a maximum range of 150 meters @ 1080p
- PoH (Power over HDBaseT) โ supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
- Bi-directional RS-232 channel โ allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Overview

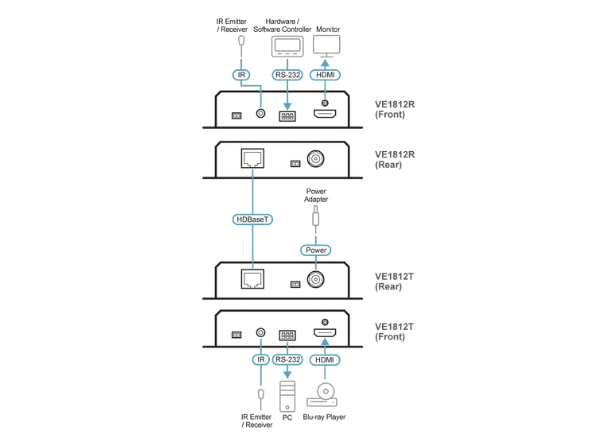

The VE1812T features Power over HDBaseT (PoH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812T supports RS-232 and IR signaling pass-through, allowing users to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812T HDMI HDBaseT Transmitter with PoH is HDMI (3D, Deep Color, 4K) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Features
- HDBaseT Connectivity โ extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
- Superior video quality:
โ 4K up to 100 m over a Cat 6a or ATEN 2L-2910ย Cat 6 cable
โ 1080p up to 150 m when in HDBaseT Long Reach Mode - HDBaseT Anti-jamming โ resists signal interference during high – quality video transmission using HDBaseT technology
- PoH (Power over HDBaseT) โ supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
- Bi-directional RS-232 channel โ allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel โ Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
- Rack- Mountable
Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ฮฉ |
| Max. Distance | 3 m |
| Video | |
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) |
| Connectors | |

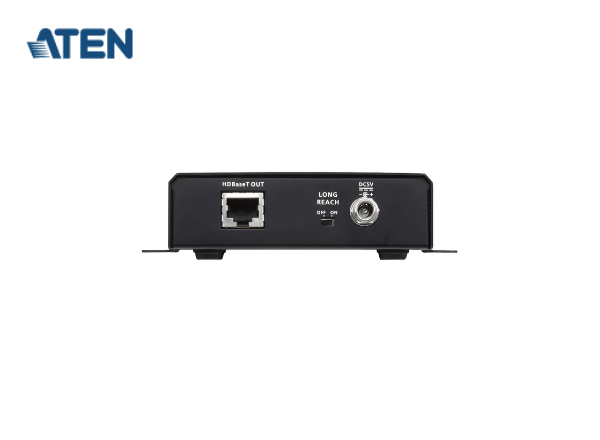

| Unit To Unit | 1 x RJ-45 Female |
| Power | 1 x DC Jack (Black) with locking |
| Control | |

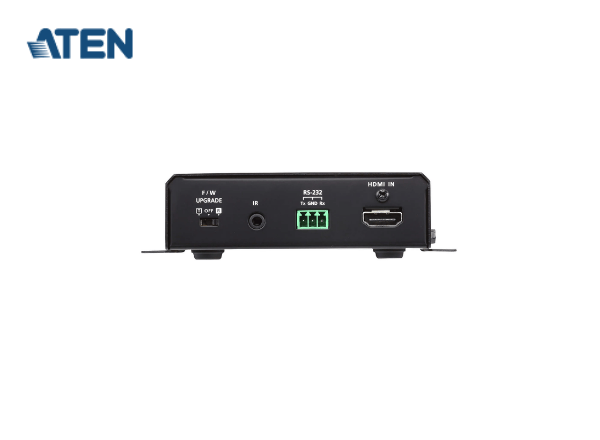

| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Switches | |
| Long Reach Mode Switch | 1 x Slide Switch – ON/OFF |
| Firmware Upgrade | 1 x Slide Switch – ON/OFF |
| Power Consumption | DC5V:3.2W:15BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 40ยฐC |
| Storage Temperature | -20 – 60ยฐC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) with bracket | 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.) |
