$ 130


  • Centralized Management: Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers.
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
  • On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
  • Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports.
  • Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
  • Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
12-08-2022 10:56 AM

Model: OC300

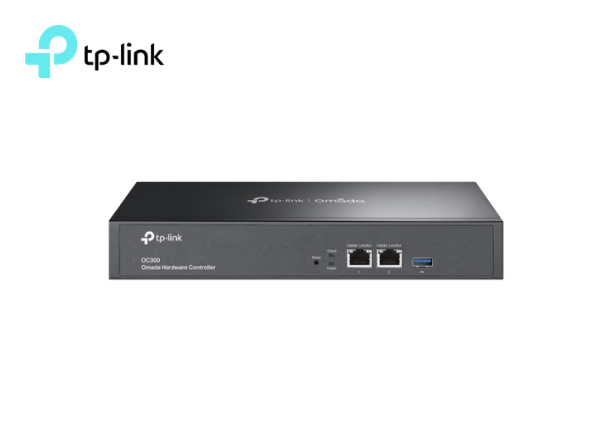

TP-Link Omada Hardware Controller

Overview

  • Centralized Management: Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers.
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
  • On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
  • Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports.
  • Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
  • Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
  • Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.

Specifications

HARDWARE FEATURES
Interface • 2× 10/100/1000 Mbps Ethernet Ports • 1× USB 3.0 Port
Power Supply 100–240 V~50/60 Hz, 0.6 A
Dimensions 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
MANAGEMENT
Omada App Yes
Centralized Management • Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers* • Up to 15,000 clients*Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC300
Cloud Access Yes
L3 Management Yes
Multi-site Management Yes
Management Features • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • Omada Hardware Controller OC300 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit
System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment • Operating Temperature: 0–50 ℃ (32–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
