$ 25


  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • PoEย Support:ย Supports Power over Ethernet (802.3af/at) for convenientย deployment.
  • Easy Installation:ย Simple mounting design for easy attachment to a wall or ceiling.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
15-08-2022 4:11 PM

Model: EAP115

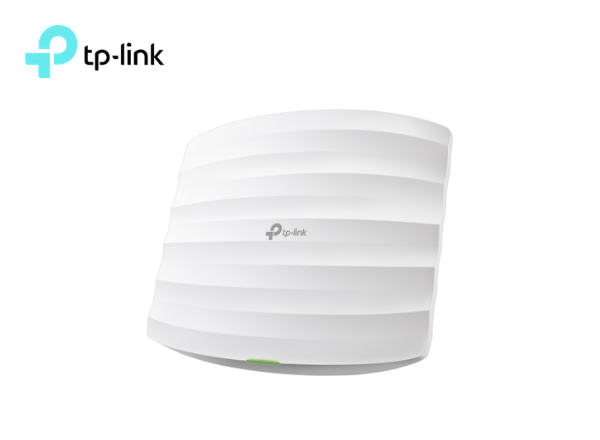

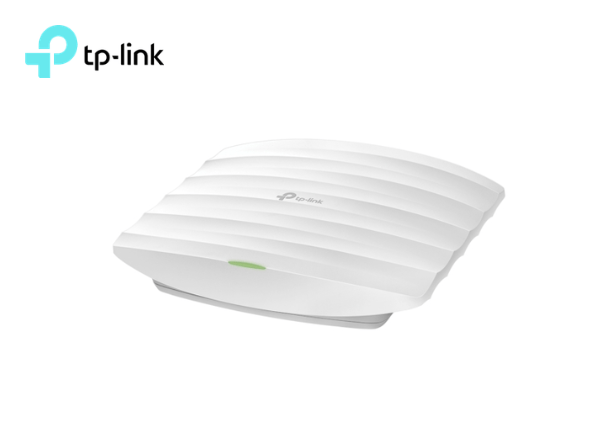

300Mbps Wireless N Ceiling Mount Access Point

Overview

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • PoEย Support:ย Supports Power over Ethernet (802.3af/at) for convenientย deployment.
  • Easy Installation:ย Simple mounting design for easy attachment to a wall or ceiling.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
  • Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

Specifications

HARDWARE FEATURES

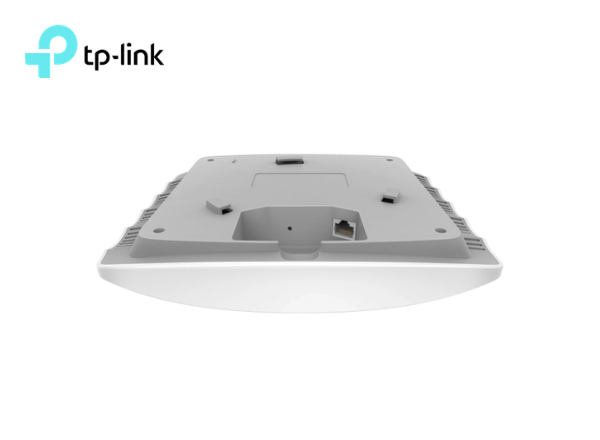

Interface Fast Ethernet (RJ-45) Port *1๏ผˆSupport IEEE802.3af PoE๏ผ‰
Button Reset
Power Supply PoE or external 9VDC/0.6A power supply
Power Consumption 2.8W
Dimensions ( W x D x H ) 7.5ร—6.7ร—1.2 in (189.5ร—170.5ร—29.7mm)
Dimensions 7.5ร—6.8ร—1.2 in. (189.4ร—172.3ร—29.5mm)
Antenna Type Internal 2* 4dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 60ใŽก(650ftยฒ)ยง
Concurrent Clients 100+**
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs ๏ผˆUp to 8 SSIDs๏ผ‰ Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control ๏ผˆAdjust Transmit Power on dBm๏ผ‰ QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power CE: โ‰ค19dBm FCC: โ‰ค26dBm
MANAGEMENT
Omada App Yes
Centralized Management โ€ข Omada Hardware Controller (OC300) โ€ข Omada Hardware Controller (OC200) โ€ข Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
EAP Controller Software
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS

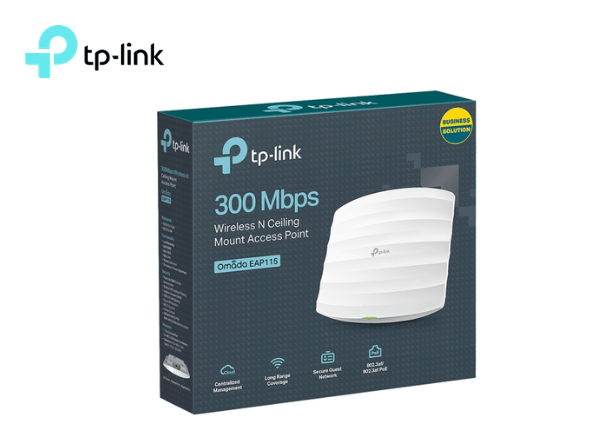

Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Adapter Mounting Kits, Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
