Description
Model: TL-SF1008P
TP-Link 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+
Overview

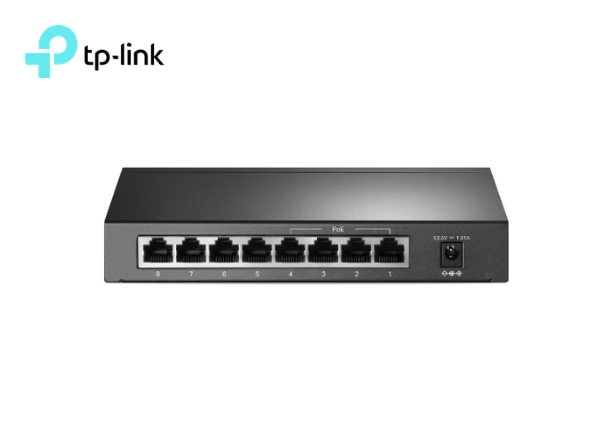

- 8ร 10/100 Mbps RJ45 ports
- 4ร PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 66 W for all PoE ports
- Up to 250m data and power transmitting range under Extend Mode

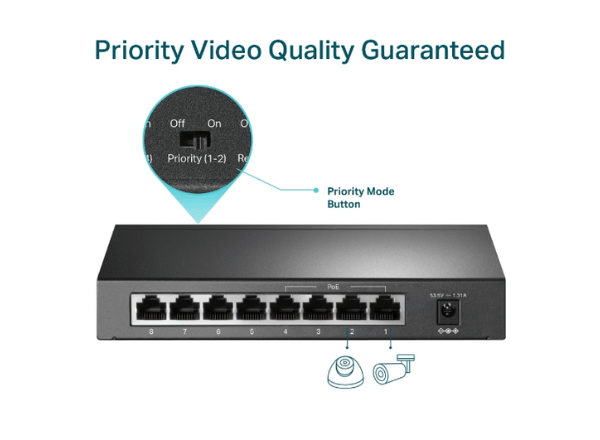

- Priority Mode ensures high priority of ports 1โ2ย to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automaticallyย rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | โข 8ร 10/100 Mbps RJ45 Ports (4ร 10/100 Mbps 802.3af/at PoE+ ports) โข AUTO Negotiation โข AUTO MDI/MDIX |
| Network Media | โข 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) โข EIA/TIA-568 100ฮฉ STP (maximum 100m) โข 100BASE-TX: UTP category 5, 5e cable (maximum 100m) โข EIA/TIA-568 100ฮฉ STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 1.1904 Mpps |
| PoE Ports (RJ45) | โข Standard: 802.3 af/at compliant โข PoE Ports: Ports 1โ4 โข Power Supply: 66 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.6 Gbps |
| Dimensions ( W x D x H ) | 6.7 ร 3.9 ร 1.1 in (171 ร 98 ร 27 mm) |
| Max Power Consumption | 2.27 W (220 V/ 50 Hz. no PD connected) 75.33 W (220 V/ 50 Hz. with 66 W PD connected) |
| Max Heat Dissipation | 7.74 BTU/h(no PD connected) 256.88 BTU/h(with 66 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | Extend Mode Button (Ports 1โ4) Priority Mode Button (Ports 1โ2) PoE Auto Recovery Button (Ports 1โ4) Mac Address Auto-Learning and Auto-Aging |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1008P, Power Adapter, Installation Guide, Rubber Feet |
| Environment | Operating Temperature: 0โ40 โ (32โ104 โ) Storage Temperature: -40โ70 โ (-40โ158 โ) Operating Humidity: 10โ90% RH non-condensing Storage Humidity: 5โ90% RH non-condensing |
