Description

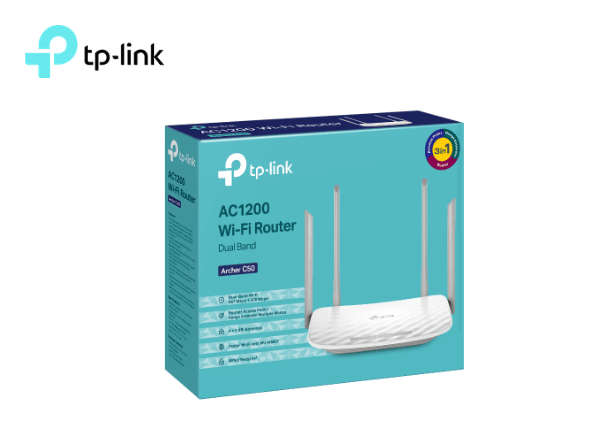

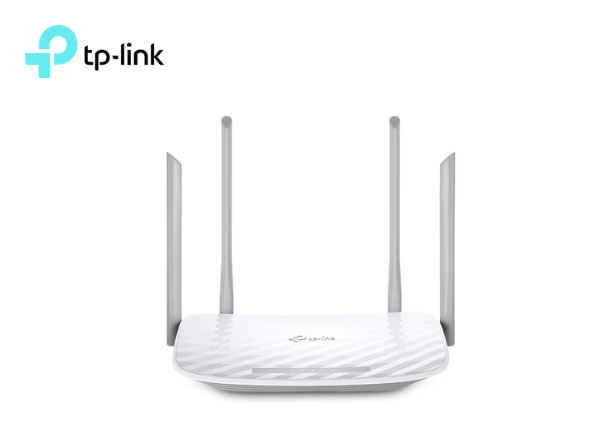

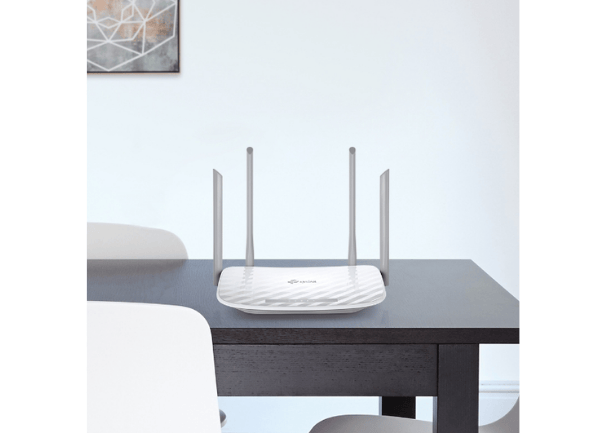

Model: Archer C50
TP-Link AC1200 Wireless Dual Band Router
Overview
- Support smooth 4K streaming with AC1200 Wi-Fi
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point
Specifications
WIRELESS | |
---|---|
Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range | 3 Bedroom Houses
4× Fixed Antennas Beamforming |
WiFi Capacity | Medium
Dual-Band 2×2 MU-MIMO |
Working Modes | Router Mode Access Point Mode Range Extender Mode |
HARDWARE | |
---|---|
Processor | Single-Core CPU |

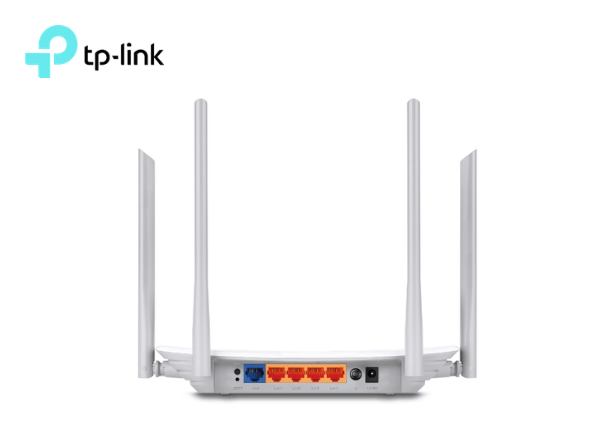

Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
Power | 9 V ⎓ 0.85 A |
SECURITY | |
---|---|
WiFi Encryption | WPA WPA2 WAP3 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | NO-IP DynDNS |
Management | Tether App Webpage Check Web Emulator> |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 9.1 × 5.7 × 1.5 in (229.9 × 144.2 × 36.9 mm) |
Package Contents | Wi-Fi Router Archer C50 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
WiFi Reception Sensitivity | 5GHz: 11a 54M: -73dBm 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm 11ac VHT80 MCS9: -60dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm |
