$ 197


  • Watch 4K movies and game with high-speed AC2300 dual-band WiFi
  • Powerful 1.8GHz dual-core 64-bit CPU with two co-processors deliver smooth and speedy connections
  • RangeBoost and beamforming greatly improve WiFi connection to devices located farther away
  • MU-MIMO connects more WiFi devices at once for faster performance
  • Airtime Fairness equally divides attention between newer and older devices to improve WiFi performance
  • A free lifetime subscription of TP-Link HomeCareTMย protects against the latest threats with powerful security and antivirus
11-08-2022 2:04 PM

Model: Archer C2300

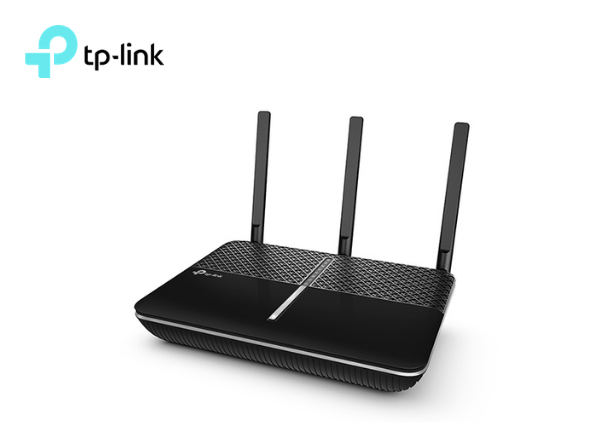

TP-Link AC2300 Wireless MU-MIMO Gigabit Router

Overview

  • Watch 4K movies and game with high-speed AC2300 dual-band WiFi
  • Powerful 1.8GHz dual-core 64-bit CPU with two co-processors deliver smooth and speedy connections
  • RangeBoost and beamforming greatly improve WiFi connection to devices located farther away
  • MU-MIMO connects more WiFi devices at once for faster performance
  • Airtime Fairness equally divides attention between newer and older devices to improve WiFi performance
  • A free lifetime subscription of TP-Link HomeCareTMย protects against the latest threats with powerful security and antivirus

Specifications

WIRELESS
Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC2300 5 GHz: 1625 Mbps (802.11ac) 2.4 GHz: 600 Mbps (802.11n)
WiFi Range 3 Bedroom Houses
3ร— Detachable High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Medium
Dual-Band Allocate devices to different bands for optimal performance 3ร—3 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation
Working Modes Router Mode Access Point Mode
SECURITY
Network Security SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeCareโ„ข Antivirus
Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log
Guest Network 1ร— 5 GHz Guest Network 1ร— 2.4 GHz Guest Network
VPN Server OpenVPN PPTP
WiFi Encryption WPA WPA2 WPA3
HARDWARE
Processor 1.8 GHz 64 Bit Dual-Core CPU
Ethernet Ports 1ร— Gigabit WAN Port 4ร— Gigabit LAN PortsStatic Link Aggregation (LAG) available with 2ร— LAN ports

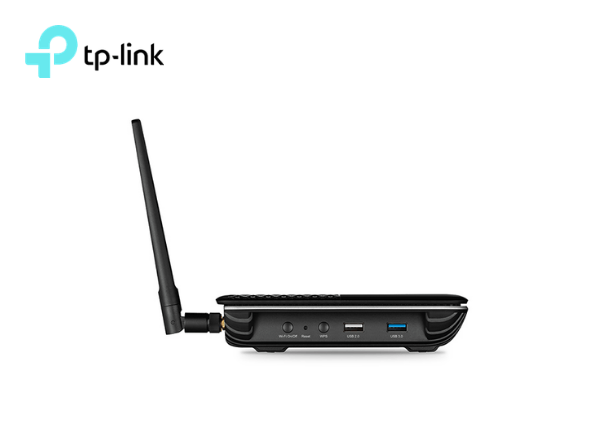

USB Support 1ร— USB 3.0 Port 1ร— USB 2.0 PortSupported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power 12 V โŽ“ 2 A
SOFTWARE
Protocols IPv4 IPv6
Service Kits HomeCareโ„ข Learn More>
Parental Controls HomeCareโ„ข Parental Controls
Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight
WAN Types Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service QoS by Device HomeCareโ„ข QoS
QoS by Application
Cloud Service OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding Virtual Servers Port Forwarding Port Triggering DMZ UPnP
IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP Address Reservation DHCP Client List Server
DDNS TP-Link NO-IP DynDNS
Management Tether App Webpage Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications FCC, RoHS
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰ ~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰ ~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power FCC: <30dBm
WiFi Reception Sensitivity 5GHz: 11a 6Mbps: -91dBm 11a 54Mbps: -72dBm 11n HT20: -70dBm 11n HT40: -69dBm 11ac HT20: -60dBm 11ac HT40: -61dBm 11ac HT80: -56dBm 2.4GHz: 11g 54Mbps: -73dBm 11n HT20: -72dBm 11n HT40: -69dBm
PHYSICAL
Dimensions (Wร—Dร—H) 8.5 ร— 6.5 ร— 1.4 in (216 ร— 164 ร— 36.8 mm)
Package Contents Wi-Fi Router Archer C2300 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
