Description
Model: Archer MR202

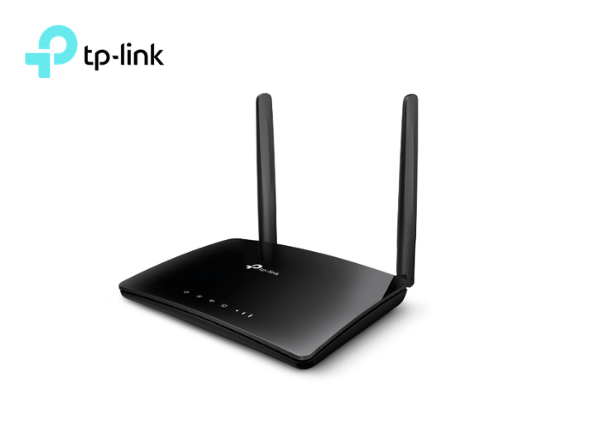

TP-Link AC750 Wireless Dual Band 4G LTE Router
Overview
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage

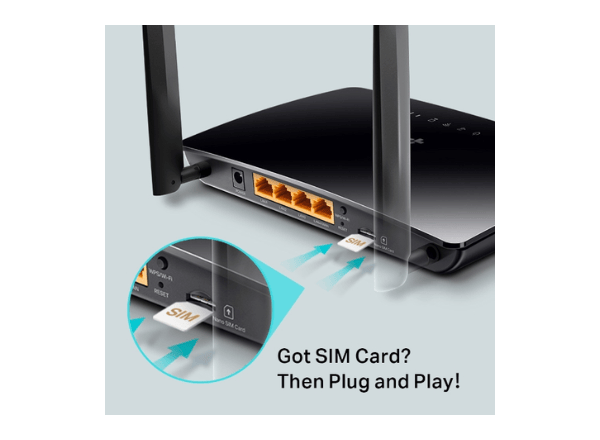

- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band

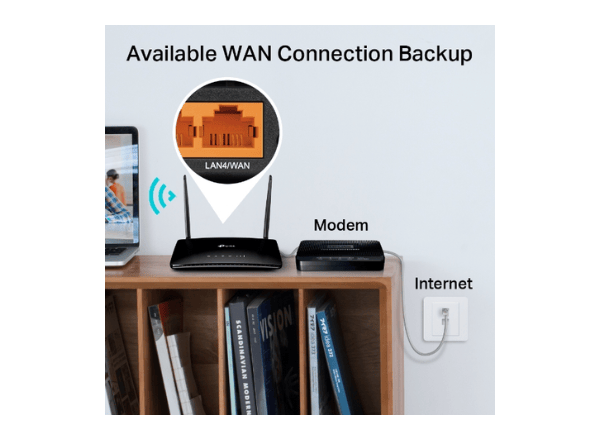

- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
Specifications

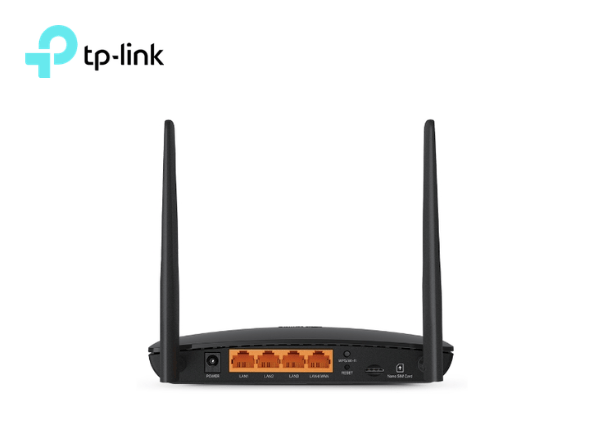

| Interface | 3Γ 10/100Mbps LAN Ports 1Γ 10/100Mbps LAN/WAN Port 1Γ Nano SIM Card Slot 2Γ External SMA-F Antenna Interface |
|---|---|
| Button | WPS/Wi-Fi ButtonοΌReset Button |
| External Power Supply | 12V/1A |
| Dimensions ( W x D x H ) | 6.85 Γ 4.9 Γ 1.32 in (174 Γ 124.5 Γ 33.5 mm) |
| Antenna | 2 Detachable External 4G LTE Antennas |
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M: -78 dBm 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Transmission Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Quality of Service | Prioritizes network traffic by device or application |
|---|---|
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features | Access Control, Local Management, Remote Management, reboot schedule |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP, TP-Link DDNS |
| Access Control | |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| VPN Server | PPTP VPN, OpenVPN |
| Certification | CE, RoHS |
|---|---|
| Package Content | AC750 Wireless Dual Band 4G LTE Router Archer MR202 RJ45 Ethernet Cable 1.5m Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vistaβ’/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card |
| Environment | Operating Temperature: 0β~40β (32β ~104β) Storage Temperature: -40β~60β (-40β ~140β) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
