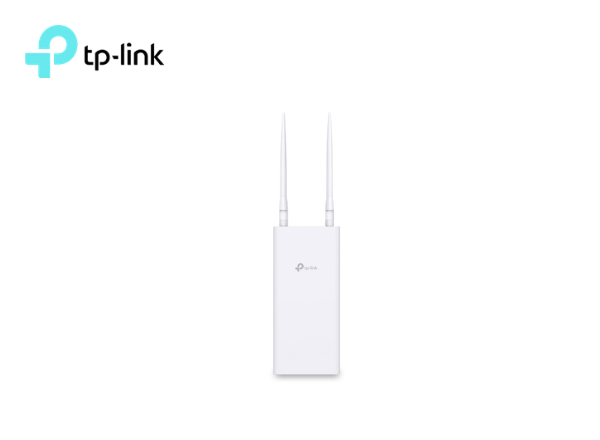

TP-Link TL-MR100-Outdoor 4G 300 Mbps Wi-Fi Outdoor Router | T52

$63.00

  • 4G LTE and Fast Wi-Fi Speed : supports LTE up to 150 Mbps and Wi-Fi up to 300 Mbps on 2.4 GHz .*
  • Durable Outdoor Enclosure: Robust outdoor connectivity and reliability with IP65 weatherproof protection** and ±6kV lightning protection & ±15kV ESD protection§.

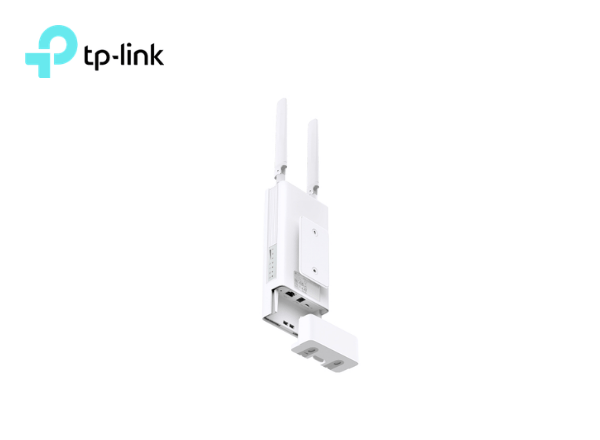

  • Multiple Mounting Installation: Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
  • PoE/DC Power Supply: Supports 802.3af and passive PoE, enabling easy deployment.
  • Plug and Play: Plug in a SIM card to get instant internet access anywhere.
  • Simplified Setup: Easily set up and manage your network with the Tether app.
Categories: , , ,

Description

Model: TL-MR100-Outdoor

TP-Link 4G 300 Mbps Wi-Fi Outdoor Router

Overview

  • 4G LTE and Fast Wi-Fi Speed : supports LTE up to 150 Mbps and Wi-Fi up to 300 Mbps on 2.4 GHz .*
  • Durable Outdoor Enclosure: Robust outdoor connectivity and reliability with IP65 weatherproof protection** and ±6kV lightning protection & ±15kV ESD protection§.
  • Multiple Mounting Installation: Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.
  • PoE/DC Power Supply: Supports 802.3af and passive PoE, enabling easy deployment.
  • Plug and Play: Plug in a SIM card to get instant internet access anywhere.
  • Simplified Setup: Easily set up and manage your network with the Tether app.

Specifications

4G
Network Type 4G
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
(2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41
(2600/2300/2500 MHz)3G:
DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)
Speed Download Speed 150 Mbps
Upload Speed 50 Mbps
SIM Type 1×Nano SIM Card

HARDWARE
Interface 1× 100 Mbps WAN/LAN Port (PoE In)
1× Nano SIM Card Slot
1 × DC Port
Buttons 1× Reset Button
Power 12V/1A DC
48V/0.375A Passive PoE
44-57V/0.35A 802.3af
Dimensions (W x D x H) 8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)
Antennas 2 × Detachable LTE Antennas

WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n
Frequency 2.4 GHz
Signal Rate 300 Mbps
Reception Sensitivity 11g 54M: -74 dBm
11n HT20: -73 dBm
11n HT40: -70 dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

SOFTWARE FEATURES
Security DoS, IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes 3G/4G Router, Wireless Router
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
Protocols IPv4, IPv6
Guest Network 2.4 GHz guest network
Administration Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHER
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP

DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
DNS
• Port: 53   Protocol: TCP

App management
Manage and configure device through app
• Port: 22   Protocol: TCP
• Port: 20002   Protocol: TCP

CWMP
CPE WAN Management Protocol
• Port: 7547   Protocol: TCP

OTHERS
Package Content 1× TL-MR100-Outdoor Unit
1× 10-meter RJ45 Ethernet Cable
1× PoE Adapter
1× AC Power Cord
1× Quick Installation Guide
Window/Pole/Wall Mounting Kits
Requirements Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
*You are recommended to use the latest version
Certifications CE, RoHS
Environment Operating Temperature: -30°C~60°C (-22°F~140°F)
Storage Temperature: -40°C~70°C (-40 °F~158 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
