Description
Model: CS231C
ATENย USB VGA Computer Sharing Device
- Single computer is shared by two USB consoles.
- Supports VGA, SVGA Multisync monitors.
- Private Mode for a privileged user.
- No Software required.
Overview

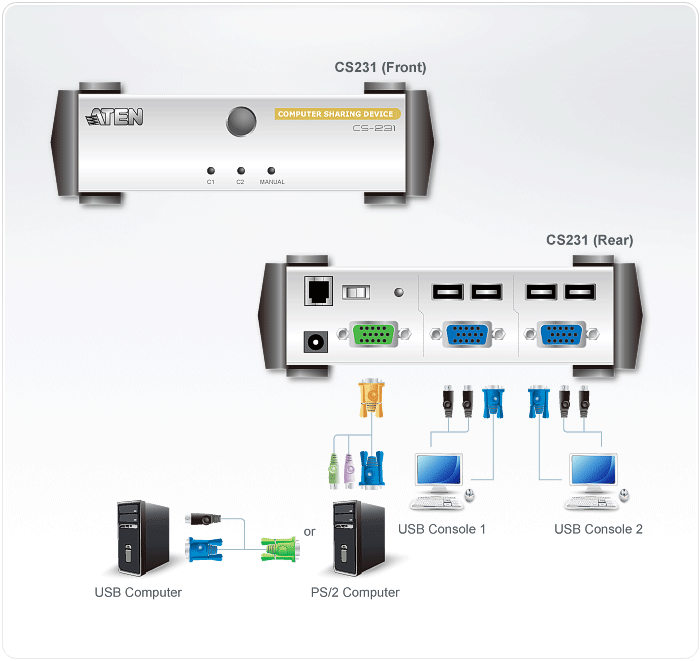

The CS231 is a powerful, micro-processor controlled computer sharing device. It is a multi-user, single-tasking device that enables two users to share the use of a single computer – each from their own consoles (monitor, keyboard, and mouse).The CS231 supports USB consoles and both PS/2 and USB computers
Features
- Single computer is shared by two USB consoles.
- Supports USB and PS/2 computers.
- Multiplatform Support (Windows, Mac, Unix, Linux).
- Manual or Auto console selection.
- On-Screen-Display informs user when system is in use.
- No Software required.
- Private Mode for a privileged user.
- Screen saver function.
- Supports VGA, SVGA Multisync monitors.
- Firmware Upgradable.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac and Unix.
Specifications
| Computer Connections | 1 |
| Console Selection | Pushbutton, Hotkey* Note: * Selecting console via hotkey only works in Manual Mode. |

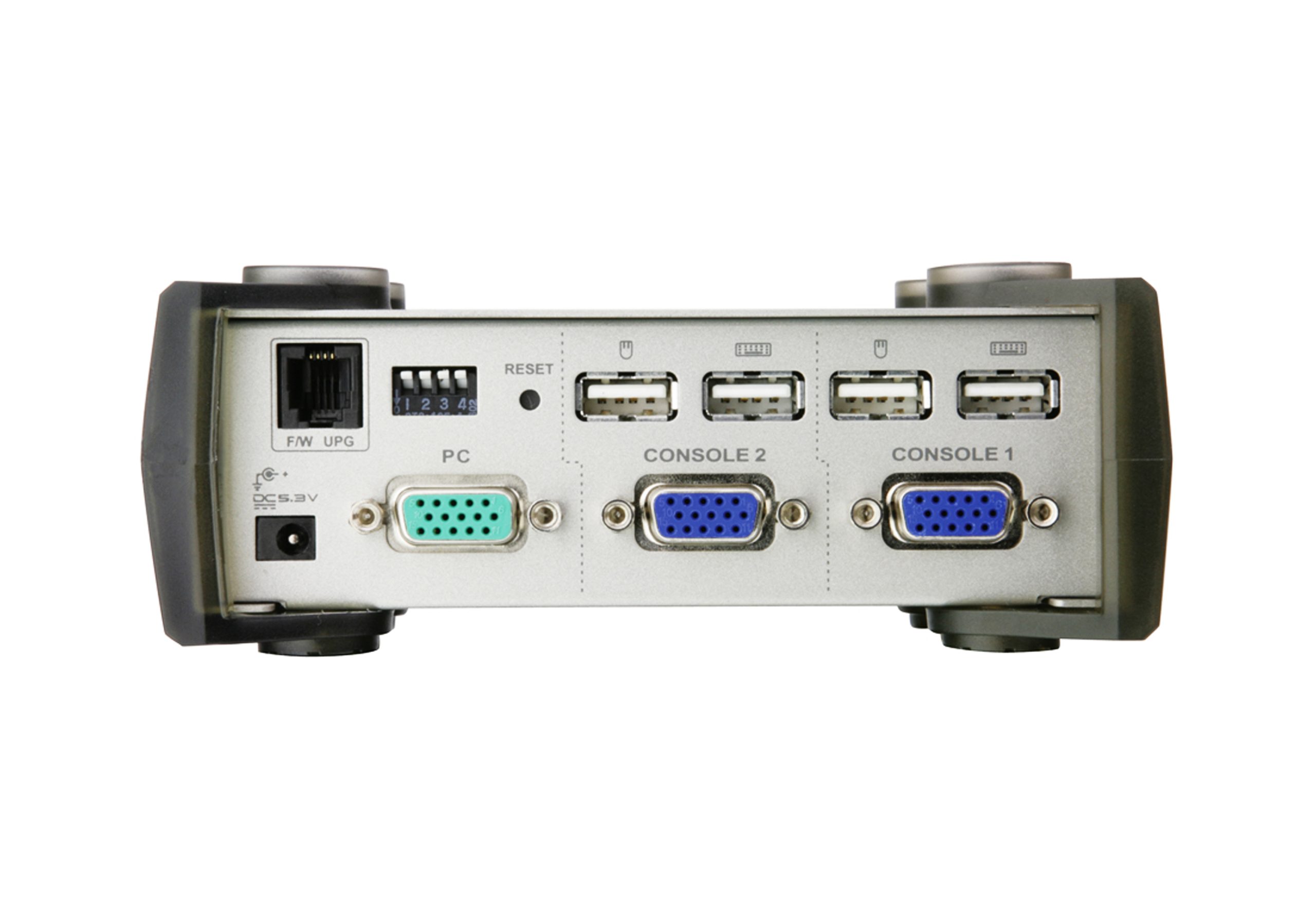

| Connectors | |
| Console Ports | 2 x HDB-15 Female (Blue) 4 x USB Type A Female |
| KVM Ports | 1 x SPHD-15 Female (Green) |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x DC Jack (Black) |
| Switches | |
| Mode Selection | 1 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| DIP | 1 x 4 pin |
| LEDs | |
| Selected | 2 (Green) |
| Manual | 1 (Orange) |
| Video | 1920 x 1440 |
| Power Consumption | DC 5.3V, 2.2 W |
| Environmental | |
| Operating Temperature | 0-50หC |
| Storage Temperature | -20-60หC |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.56 kg ( 1.23 lb ) |
| Dimensions (L x W x H) | 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
