Description
Model: VE300T

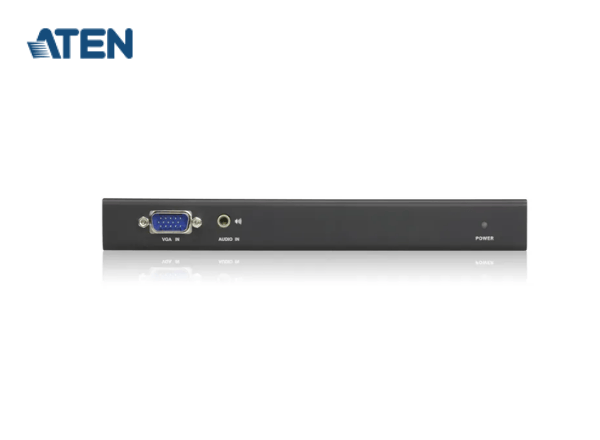

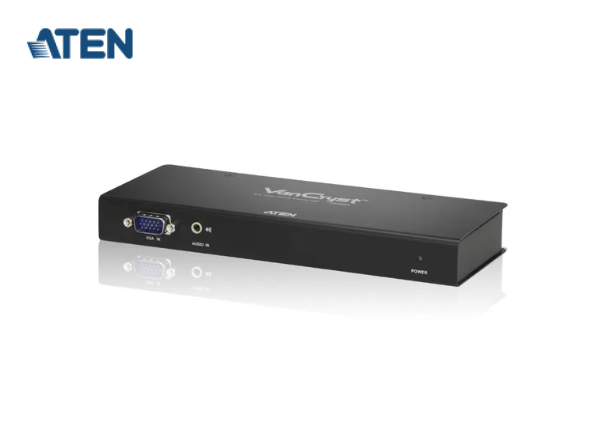

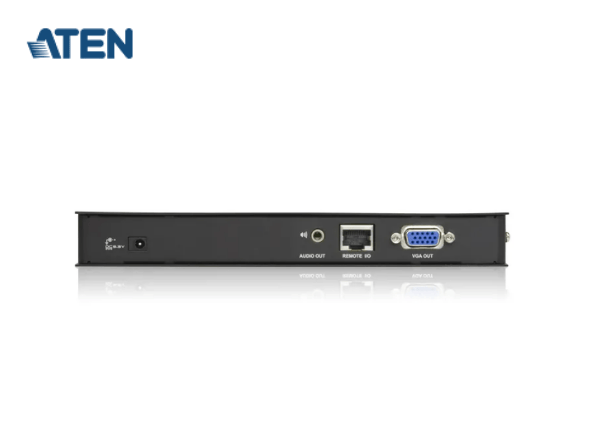

ATENΒ VGA/Audio Cat 5 Transmitter with Auto Compensation (1280 x 1024@300m (RQ))
- Long Distance Transmission up to 300 m
- Long Distance Transmission up to 300 m
- Rack-mountable
- Built-in 8KV/15KV ESD protection
Overview

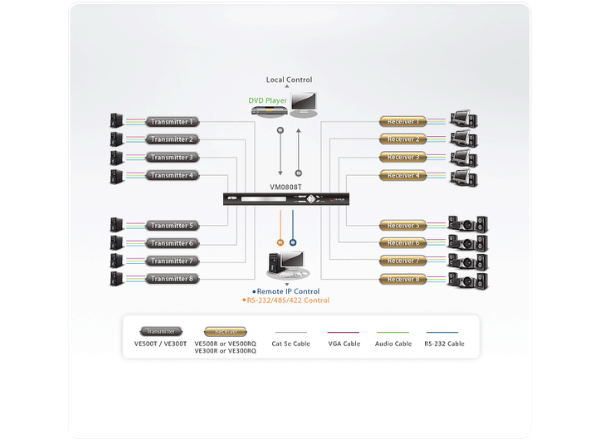

The VE300T A/V Over Cat 5 Transmitter is exclusively designed to integrate seamlessly with the ATEN VM0808T/VM1616T Matrix Switch to extend signals up to 300m from the source to the switch using Cat 5e cables. The VE300 is ideal for installations such as construction sites, factory floors, and control and security centers β where the system equipment can reside in a safe and secure location, while the display is conveniently located in public view.
Features
- Long Distance Transmission up to 300 m
- Supports wide screen
- Rack-mountable
- Built-in 8KV/15KV ESD protection
Specifications
| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ξ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ξ |
| Video | |
| Max. Bandwidth | 300 MHz |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 1 x Mini Stereo Jack Female (Green) |
| Connectors | |
| Power | 1 x DC Jack (Black) |
| Power Consumption | DC5.3V:1.90W:9BTU |
| Environmental | |
| Operating Temperature | 0-50Β°C |
| Storage Temperature | -20 – 60Β°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.64 x 2.50 cm (7.95 x 3.4 x 0.98 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
