Description
Model: CS1754

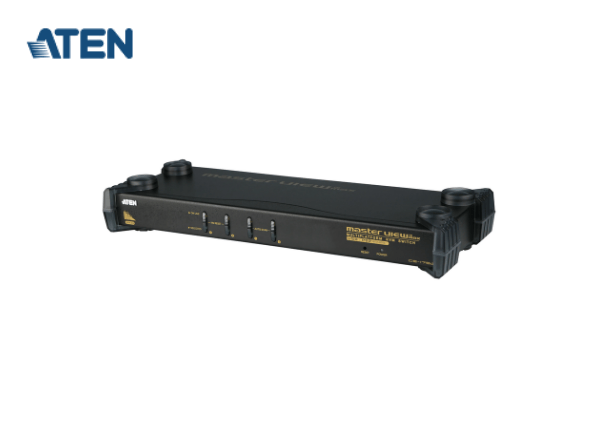

ATEN 4-Port PS/2-USB VGA/Audio KVM Switch
- One USB console controls 4 computers; Cascadable up to 3 levels – provides up to 64 computers.
- Superior video quality – up to 2048 x 1536; DDC2B.
- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Auto PS/2 and USB interface detection and audio enabled
Overview

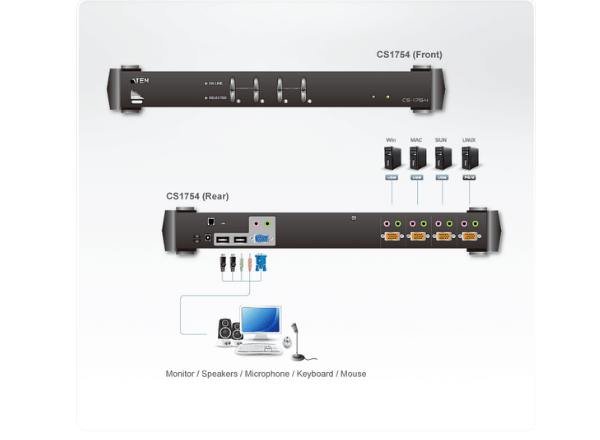

CS1754 is a KVM Switch with 4 ports and supports computers with PS/2 or USB interfaces via cables and audio signal function. Moreover, it supports 3-tier connection via cascade. With 21 sets of CS1754, users can control 64 computers. CS1758 provides growing enterprises a reliable investment on comprehensive connection and long-term safe use.
Features
- One USB console controls 4 computers.
- Cascadable up to 3 levels – provides up to 64 computers.
- Dual interface supports with computers with PS/2 or USB keyboards and mice.
- Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
- Auto PS/2 and USB interface detection.
- Buzzer On/Off via hotkey and OSD.

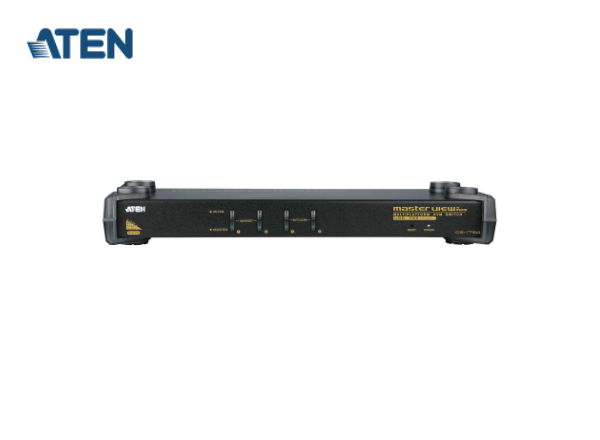

- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Superior video quality – up to 2048 x 1536; DDC2B.
- Firmware upgradable.
- With speaker and microphone support.
- ATEN USB ASIC inside.
- Available in silver and black.
- Rack mountable in 19 system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
- For more information about KVMs which can connect to CS1754, seeΒ Compatible KVM Table.
Specifications
| Computer Connections | |
| Direct | 4 |
| Maximum | 64 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors | |

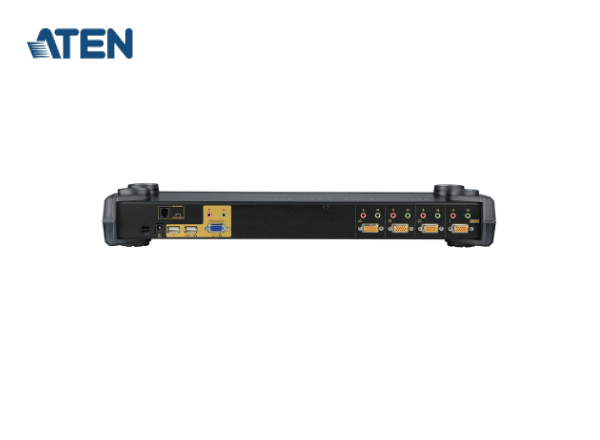

| Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink) |
| KVM Ports | 4 x SPHD-15 Female (Yellow) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) |
| Firmware Upgrade | 1 x RJ- 11 Female |
| Power | 1 x DC Jack (Black) |
| Switches | |
| Ports | 4 x Pushbutton |
| Firmware Upgrade | 1 x Slide |
| Reset | 1 x Semi-recessed Pushbutoon |
| LEDs | |
| Online | 4 (Orange) |
| Selected | 4 (Green) |
| Power | 1 (Blue) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 2048 x 1536; DDC2B |
| Scan Interval | 1-255 seconds (default: 5 secs.) |
| Power Consumption | DC 5.0V, 2.75W |
| Environmental | |
| Operating Temperature | 0-50ΛC |
| Storage Temperature | -20-60ΛC |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.64 kg ( 5.81 lb ) |
| Dimensions (L x W x H) | 43.72 x 16.10 x 4.40 cm (17.21 x 6.34 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
