$ 85


  • Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage โ€” eliminate weak signal areas once and for all!
  • With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
  • A Deco M4 two-pack delivers Wi-Fi to an area of up to 3,800 square feet. And if thatโ€™s not enough, simply add more Decos to the network anytime to increase coverage.
  • Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps and works with major internet service provider (ISP) and modem.
  • Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
13-08-2022 2:53 PM

Model :ย Deco M4(2-pack)

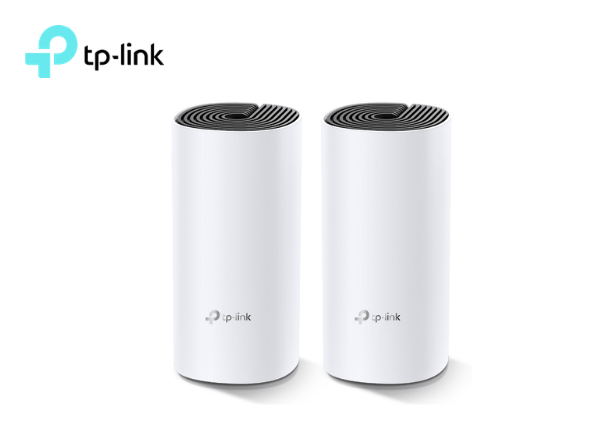

TP-Link AC1200 Whole Home Mesh Wi-Fi System

Overview

  • Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage โ€” eliminate weak signal areas once and for all!
  • With advanced Deco Mesh Technology, units work together to form a unified network with a single network name.ย Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
  • A Deco M4ย two-pack delivers Wi-Fi to an area of up to 3,800 square feet. And if thatโ€™s not enough, simply add more Decos to the network anytime to increase coverage.
  • Deco M4ย provides fast andย stable connections with speeds of up to 1167 Mbps andย works with major internet service provider (ISP) and modem.
  • Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.
  • Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member.

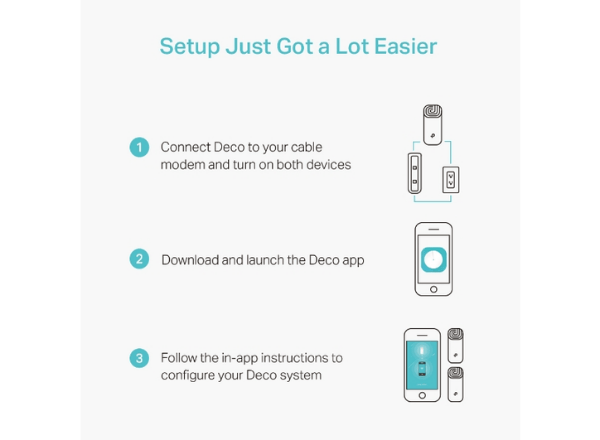

  • Setup is easier than ever with the Deco app there to walk you through every step.

Specifications

WIRELESS
Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)
WiFi Range 3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2ร— Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Medium
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Silmultaneously communicates with multiple MU-MIMO clients
Working Modes Router Mode Access Point Mode
HARDWARE
Processor Qualcomm CPU
Ethernet Ports 2ร— Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing
Buttons Reset Button
Power 12 V โŽ“ 1.5 A
SECURITY
WiFi Encryption WPA WPA2
Network Security SPI Firewall Access Control
Guest Network 1ร— 5 GHz Guest Network 1ร— 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4 IPv6
Parental Controls URL Filtering Time Controls
WAN Types Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding Port Forwarding Port Triggering DMZ UPnP
IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP Address Reservation DHCP Client List Server
DDNS TP-Link
Management Deco App
PHYSICAL
Dimensions (Wร—Dร—H) 3.6 ร— 3.6 ร— 7.5 in (90.7 ร— 90.7 ร— 190 mm)
Package Contents Deco M4 (3-pack) 3 Deco M4R Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation GuideDeco M4 (2-pack) 2 Deco M4R Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation GuideDeco M4 (1-pack) 1 Deco M4R Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide
OTHERS
System Requirements Android 4.4 or later iOS 9.0 or later
Certifications CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰ ~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰ ~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm
