Description
Model: CS661

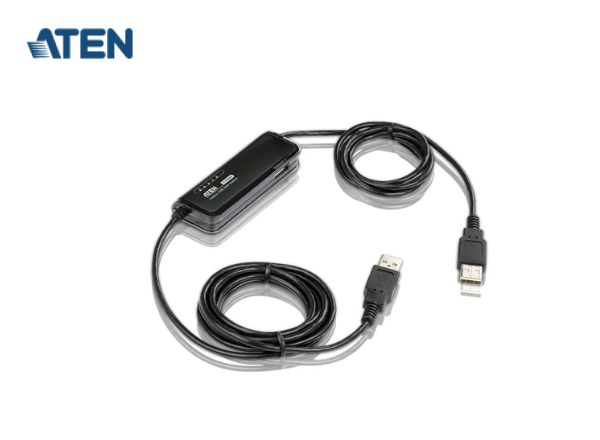

ATEN Laptop USB VGA KVM Switch
Overview
The CS661 Laptop USB KVM Switch takes a giant step forward from previous cable KVM models in the Petite series. In addition to offering simple plug and play KVM switch functionality for two USB-enabled laptops or PCs, the CS661 also allows you to quickly and easily transfer files between the two computers using an innovative File Management tool with an intuitive graphical user interface (GUI).
The CS661 Laptop USB KVM Switch offers the ideal portable solution for copying music, photos, videos, and other files to and from your laptop and home PC, or transferring files between your work and home PCs.
Overview
- USB-to-USB Laptop USB KVM Switch with File Transfer functionality and USB 2.0 support

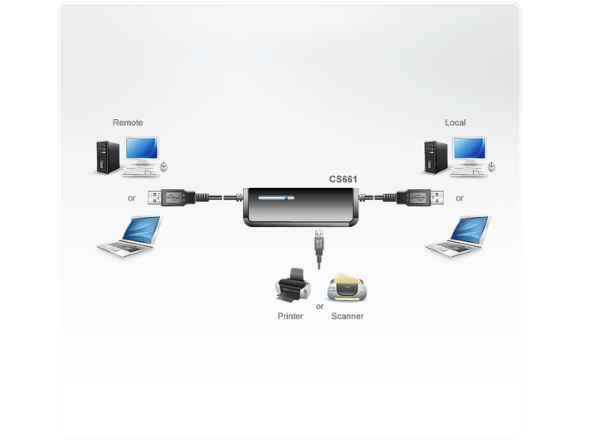

- KVM functionality (dual PC control) allows you to control both your Local laptop/computer and a Remote laptop/computer via the Local computer
- Provides an extra USB port for your laptop
- Compact design, built-in all-in-one USB 2.0 cables enables high-speed data transfer
- Intuitive GUI for easy operation
- File system management utility allows you to transfer files between two laptops/computers simply drag and drop
- Plug and play installation software is auto-run
- Desktop scaling user can adjust the size/resolution of the Remote desktop window by size or ratio
- Non-powered
Specifications
| Computer Connections | 1 to 1 |
| Connectors | |
| Local Port | 1 x USB Type A Male (Black) |
| Remote Port | 1 x USB Type A Male (Black) |
| USB Hub | 1 x USB 2.0 Port |
| LEDs | 2 (Blue) |
| Environmental | |
| Operating Temperature | 0 – 50Β°C |
| Storage Temperature | -20 – 60Β°C |
| Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.10 kg |
| Dimensions (L x W x H) | 9.20 x 3.11 x 1.50 cm |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
