Description
Model : Tapo C500

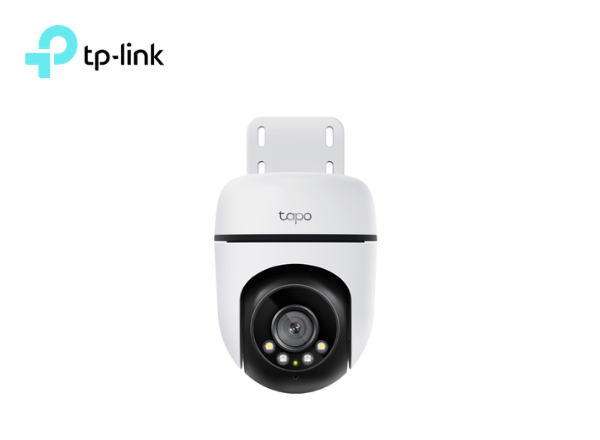

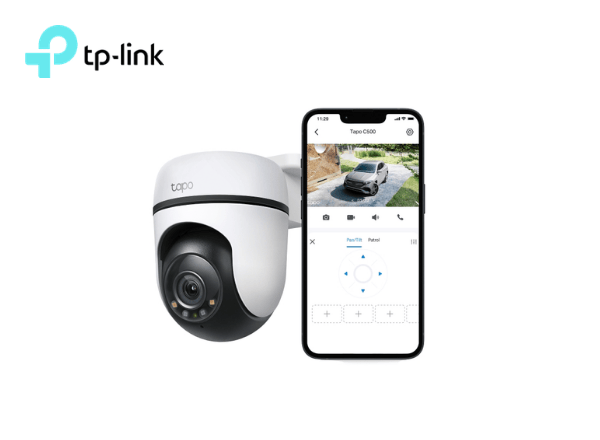

TP-Link Tapo C500 Outdoor Pan/Tilt Security WiFi Camera
Overview
- 1080p Full HD Live View-Reveals clear and sharp images with more details.
- Person Detection and Motion Tracking-Smart AI identifies a person while tracking motion with high-speed rotation, notifying users as needed.
- 360Β° Visual Coverage-Provides 360Β° horizontal & 130Β° vertical range to cover every corner.
- Night Vision (up to 98 ft)-Ensures your safety by providing a clear visual distance of up to 98 ft even in total darkness.
- IP65 Weatherproof-Offers excellent waterproof and dustproof performance for outdoor scenarios.
- Multiple Installation Options-Use the mounting screws, template, and loopsβ‘Β to install on any wall, ceiling, or pole for the perfect viewβwherever you want.

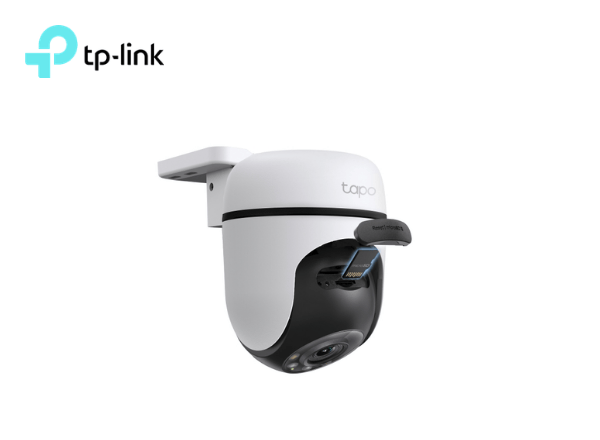

- Flexible Storage Choices-Save recorded videos to an installed microSD card(up to 512 GB)β , or use Tapo Care** cloud storage service.
- Customizable Sound Alarm-Record your customized audio as an alarm to extend your usage.
- Physical Privacy Mode-Maintains your privacy with the lens physically blocked by the housing.
- Two-way Audio-Enables communication through a built-in microphone and speaker.
Specifications
| CAMERA | |
|---|---|
| Image Sensor | 1/3” |
| Lens | Focal Length: 3.89 mm Aperture: F2.0 Field of View: 85.5Β°(Diagonal), 73.5Β°(Horizontal), 41Β°(Vertical) |
| Motion Range | Pan Mechanical Range: 340Β° (360Β° Pan Coverage) Tilt Mechanical Range: 60Β° (130Β° Tilt Coverage) |
| Night Vision | 850 nm IR LED up to 98 ft/30m |
| Interface & Button | 1Γ RESET Button 1Γ MicroSD Card Slot |
| View Range | 360Β° horizontal and 130Β° vertical |
| Resolution | 1080p Full HD(1920 x 1080 px) |
| VIDEO & AUDIO | |
|---|---|
| Maximum Resolution | 1920 Γ 1080 px |
| Frame Rate | 15 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 90 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |
|---|---|
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards > |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| VIDEO | |
|---|---|
| Frame Rate | 15 fps |
| Video Streaming | 1080p |
| Video Compression | H.264 |
| DETECTION AND NOTIFICATIONS | |
|---|---|
| AI Detection | Motion detection Person detection Tamper detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| AUDIO | |
|---|---|
| Audio Communication | 2-way audio |
| Audio Input & Output | Built-in microphone and speaker |
| NETWORK | |
|---|---|
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Wireless Security | WPA/WPA2-PSK |
| RTSP | Yes |
| ONVIF | Yes |
| Standards and Protocols | IEEE 802.11b/g/n, 2.4 GHz |
| Security | 128 bit AES encryption with SSL/TLS |
| Frequency | 2.4 GHz |
| SECURITY | |
|---|---|
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| POWER | |
|---|---|
| Power Source | 12V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12V, 1 A (DC Power) |
| GENERAL | |
|---|---|
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP65 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30β~60β |
| Storage Temperature | -40β~60β |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Dimensions | 4.9 Γ 4.8 Γ 3.5 in (123.8 Γ 123 Γ 90 mm) |
| Package Contents | Tapo C500 Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Quick Start Guide |
| Certifications | CE, FCC, RoHS, RCM |
| ACTIVITY NOTIFICATIONS | |
|---|---|
| Input Trigger | Motion detection, Person detection |
| Output Notification | Notification,Snapshot(Tapo care),Clips(Tapo care). |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | -30β~60β(-22Β°F ~140 Β°F ) |
| Storage Temperature | -40β~60β (-40Β°F~140Β°F) |
| Operating Humidity | 10%~90%RH, Non-condensing |
| Storage Humidity | 5%~90%RH, Non-condensing |
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | Tapo C500 Camera DC Power Adapter Anchors and Screws Mounting Template Waterproof Seal Quick Start Guide |
| HARDWARE | |
|---|---|
| Button | RESET button |
| Indicator LED | System LED |
| Adapter Input | 100-240V, 50/60Hz |
| Adapter Output | 12.0V/1.0A |
| Dimensions (W x D x H) | 4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, RCM |
